Name: SW10000TL3 - S On Grid Solar Inverter DC AC 10kw For Hybrid Solar System
Brand: Growatt
SKU: SW10000TL3-S
Rating: 4.6 (107 reviews)

Home > products > Solar Hybrid Inverter >

SW10000TL3 - S On Grid Solar Inverter DC AC 10kw For Hybrid Solar System

On Grid Solar Inverter 10kw

Hybrid Solar System On Grid Inverter

SPH Solar Power System Inverter

Place of Origin:

CHINA

Brand Name:

Growatt

Certification:

TUV

Model Number:

SW10000TL3-S

Request A Quote

Product Details

Product Name:

Growatt SPH 1000TL Hybrid Solar Inverter

Communication:

WIFI/RS485/LAN

Model Number::

SW10000TL3-S

Type::

DC/AC Inverters

Output Type::

Triple, Multiple

Application:

Hybrid Solar System

MPPT::

2 MPPTs

Operation Phase::

Three Phase

Input Voltage::

1000v

Output Voltage::

230V/400V

Output Current::

15.2A

Payment & Shipping Terms

Minimum Order Quantity

100PCS

Packaging Details

27pcs/ per pallet 270pcs/ 1*20' container 648pcs/ 1*40' container

Delivery Time

20-25 work days

Payment Terms

T/T, Western Union, MoneyGram

10KW PV Solar Hybrid Inverter 99% Efficiency MPPT Controller

Get Best Price

3KVA Off Grid Solar Hybrid Inverter 3kw 90-93% Efficiency Overload Protection

Get Best Price

2400W MPPT On Off Grid Solar Hybrid Inverter 3KVA 24v 48v

Get Best Price

SPH 1000TL PV Solar Hybrid Inverter System DC / AC10kw

Get Best Price

86-180-25320086

info@szhodas.com

86-0755-5320086

Contact Now

Product Description

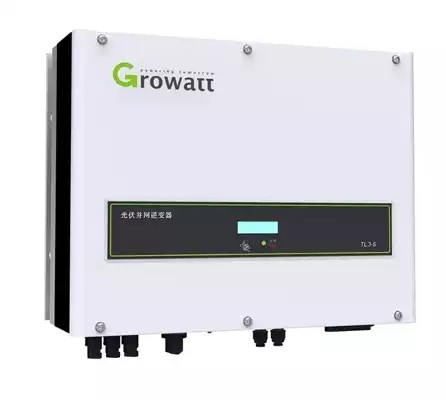

Growatt On Grid Solar Inverter DC AC 10kw SW10000TL3-S

Model	8000TL3-S	9000TL3-S	10000TL3-S	11000TL3-S5500M
Max. recommended PV power (for module STC)	9600W	10800W	12000W	13200W
Max. DC voltage	1000V	1000V	1000V	1000V
PV voltage range	160V-1000V	160V-1000V	160V-1000V	160V-1000V
Nominal voltage	600V	600V	600V	600V
MPP voltage range at Full Power	360V-850V	400V-850V	450V-850V	450V-850V
Max. input current	11.5A/11.5A	11.5A/11.5A	13A/13A	13A/13A
Number of independent MPP trackers/strings per MPP tracker	2/1	2/1	2/1	2/1
Output (AC)
Rated AC output power	8KW	9KW	10Kw	11Kw
Max. AC apparent power	8.8kVA	9.9kVA	11kVA	12.1kVA
Max. output current	13.3A	15A	16.7A	18.3A
AC nominal voltage; range	230V400V: 320-478V	230V400V: 320-478V	230V400V: 320-478V	230V400V: 320-478V
AC grid frequency; range	50Hz,60Hz / 5Hz	50Hz,60Hz / 5Hz	50Hz,60Hz / 5Hz	50Hz,60Hz / 5Hz
Displacement power factor, configurable	0.8leading… 0.8lagging	0.8leading… 0.8lagging	0.8leading… 0.8lagging	0.8leading… 0.8lagging
THDi	<3%	<3%	<3%	<3%
AC grid connection type	3W+N+PE	3W+N+PE	3W+N+PE	3W+N+PE
