Place of Origin:
CHINA
Brand Name:
Hochiry
Certification:
TUV
Model Number:
SR3222
Contact Us
|

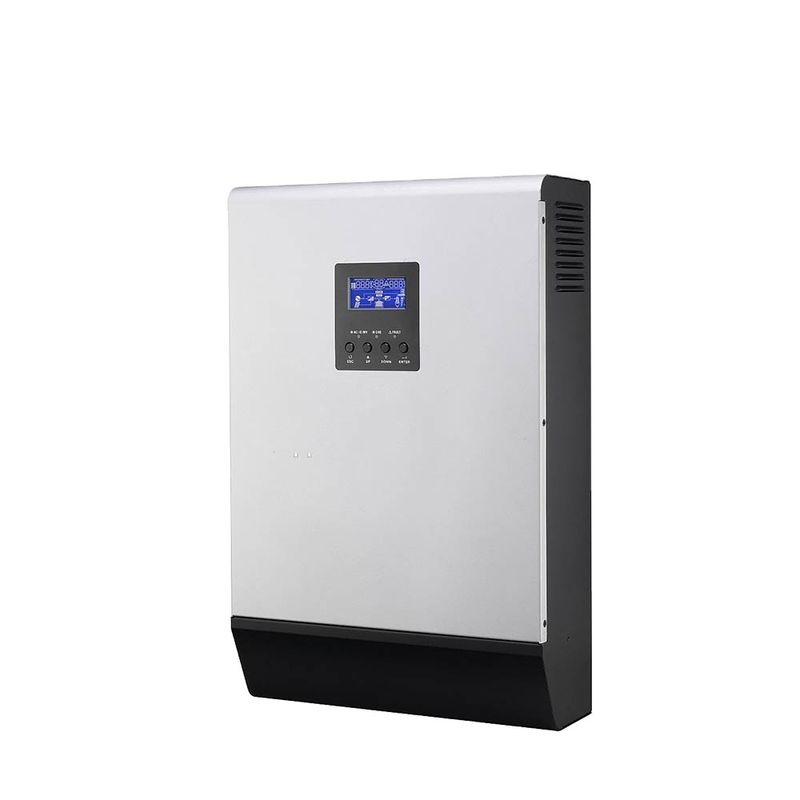

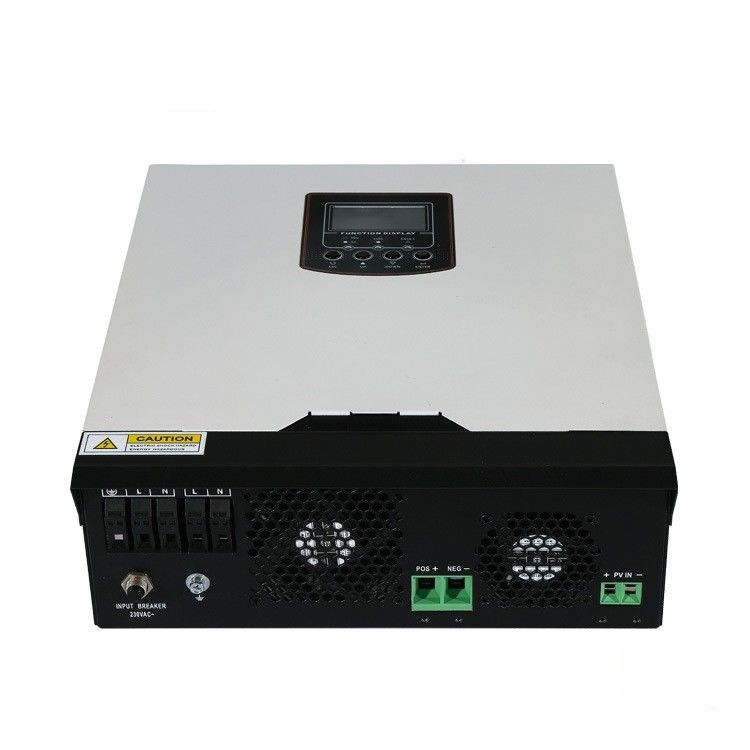

High Frequency Solar Inverter with Built in PWM Solar Controller
|
|||||
|
Model No.
|
SR1012P
|
SR3022P
|
SR5032P
|
SR5032PN
|
|
|
Rated power
|
1000VA/800W
|
3000VA/2400W
|
5000VA/4000W
|
5000VA/5000W
|
|
|
Input
|
Voltage
|
230V AC
|
|||
|
Selectable voltage range
|
170-280VAC (for personal computers) 90-280VAC(for home appliance)
|
||||
|
Frequency range
|
50Hz/60Hz (auto sensing)
|
||||
|
Output
|
AC voltage regulation (Batt. mode)
|
230VAC±5%
|
|||
|
Surge power
(5 seconds)
|
2000VA
|
6000VA
|
10000VA
|
10000VA
|
|
|
Efficiency(peak)
|
90-93%
|
93%
|
93%
|
93%
|
|
|
Transfer time
|
10ms (for personal computers); 20ms (for home appliance)
|
||||
|
Waveform
|
pure sine wave
|
||||
|
Battery & AC charger
|
Battery voltage
|
12VDC
|
24VDC
|
48VDC
|
48VDC
|
|
Floating charge voltage
|
13.5VDC
|
27VDC
|
54VDC
|
54VDC
|
|
|
Overchange protection
|
15VDC
|
31VDC
|
62VDC
|
62VDC
|
|
|
Max. charge current
|
20A
|
20/30/40/50/60AMP
|
|||
|
Max PV array power
|
900W
|
1500W
|
3120W
|
3120W
|
|
|
Max. PV array open circuit voltage
|
50VDC
|
60VDC
|
105VDC
|
105VDC
|
|
|
PWM charging current
|
50A
|
50A
|
50A
|
||
|
Maximum efficiency
|
98%
|
||||
|
Standby power comsumpsion
|
2W
|
||||
|
Physical
|
Dimension D*W*H(mm)
|
95*240*316
|
100*272*385
|
155*295*455
|
|
|
Net weight(kgs)
|
5KG
|
7KG
|
12KG
|
||
|
Humicity
|
5%-95% relative humidity (non-condensing)
|
||||
|
Environment
|
Operating temperature
|
0℃-55℃
|
|||
|
Storage temperature
|
-15℃-60℃
|
||||
|
Approximate Back-Up Time Table
|
|||||
|
Model
|
Load(VA)
|
Backup Time@24Vdc 100Ah(min)
|
Backup time@12Vdc 200Ah(min)
|
||
|
1KVA
|
200
|
766
|
1610
|
||
|
600
|
198
|
503
|
|||
|
1000
|
112
|
269
|
|||
|
|
|||||
|
Model
|
Load(VA)
|
Backup Time@12Vdc 100Ah(min)
|
Backup time@24Vdc 200Ah(min)
|
||
|
3KVA
|
300
|
449
|
1100
|
||
|
1500
|
68
|
164
|
|||
|
3000
|
28
|
67
|
|||
|
|
|||||
|
Model
|
Load(VA)
|
Backup Time@48Vdc 100Ah(min)
|
Backup time@48Vdc 200Ah(min)
|
||
|
5KVA
|
500
|
613
|
1288
|
||
|
2500
|
90
|
215
|
|||
|
5000
|
40
|
90
|
|||
