Name: SPH 1000TL PV Solar Hybrid Inverter System DC / AC10kw
Brand: Growatt
SKU: Growatt SPH 1000TL
Rating: 4.7 (117 reviews)

Home > products > Solar Hybrid Inverter >

SPH 1000TL PV Solar Hybrid Inverter System DC / AC10kw

Hybrid Pv System Inverter

1000TL Hybrid Pv System Inverter

Hybrid Solar Inverter 10kw

Place of Origin:

CHINA

Brand Name:

Growatt

Certification:

TUV

Model Number:

Growatt SPH 1000TL

Request A Quote

SPH 1000TL PV Solar Hybrid Inverter System DC / AC10kw

Product Details

Product Name:

Growatt SPH 1000TL Hybrid Solar Inverter

Communication:

WIFI/RS485/LAN

Model Number::

SPH10000TL3 BH-U

Type::

DC/AC Inverters

Output Type::

Triple, Multiple

Application:

Hybrid Solar System

MPPT::

2 MPPTs

Operation Phase::

Three Phase

Input Voltage::

1000v

Output Voltage::

230V/400V

Output Current::

15.2A

Payment & Shipping Terms

Minimum Order Quantity

100PCS

Packaging Details

27pcs/ per pallet 270pcs/ 1*20' container 648pcs/ 1*40' container

Delivery Time

20-25 work days

Payment Terms

T/T, Western Union, MoneyGram

10KW PV Solar Hybrid Inverter 99% Efficiency MPPT Controller

Get Best Price

3KVA Off Grid Solar Hybrid Inverter 3kw 90-93% Efficiency Overload Protection

Get Best Price

2400W MPPT On Off Grid Solar Hybrid Inverter 3KVA 24v 48v

Get Best Price

SPH 1000TL PV Solar Hybrid Inverter System DC / AC10kw

Get Best Price

86-180-25320086

info@szhodas.com

86-0755-5320086

Contact Now

Product Description

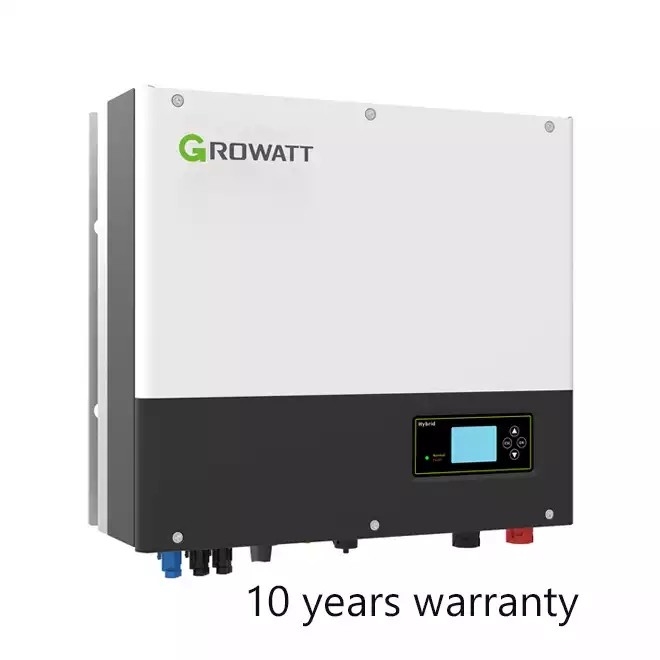

Growatt 10kw hybrid solar inverter hybrid growatt inverter 10kw SPH 10 years warranty

Products Description

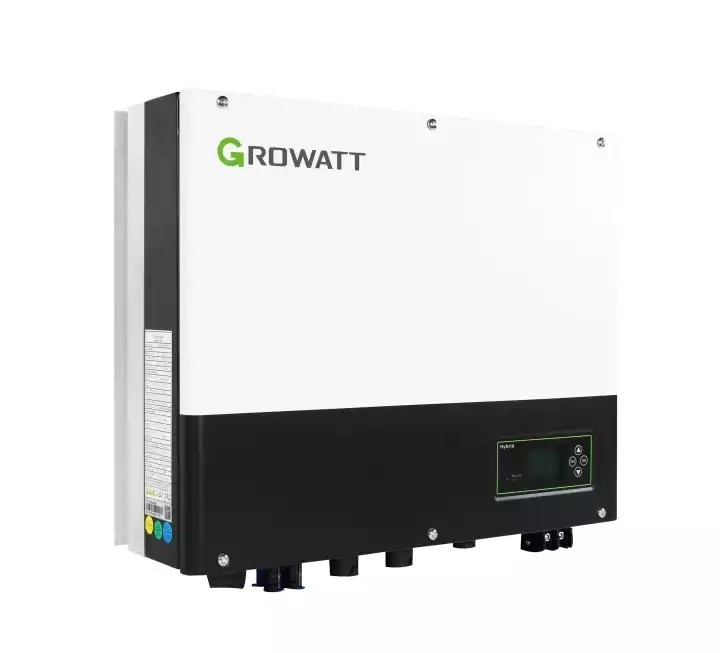

GROWATT HYBRID INVERTER
Model: SPH 4000-1000TL3 BH-UP

4-10KW HYBRID INVERTER THREE PHASE 230/400V GRID VOLTAGE
100-550V HIGH VOLTAGE BATTERY


IN STOCK NOW

FOR IMMEDIATE DELIVERY WITHIN 3 DAYS

CONTACT US FOR SHIPPING COST AND MORE DETAILS

Product Paramenters

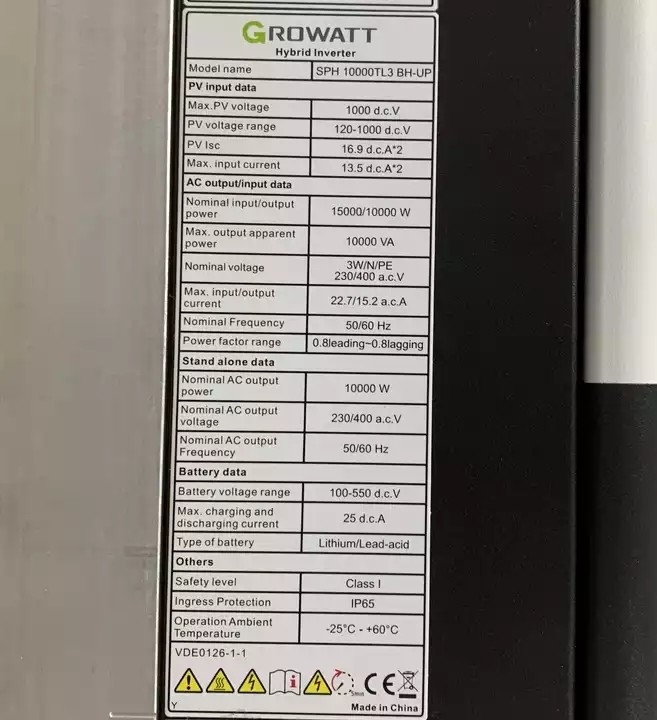

	GROWATT SPH 4000- SPH 10000TL3 BH-UP
Specification	SPH4000TL3 BH-UP	SPH5000TL3 BH-UP	SPH6000TL3 BH-UP	SPH7000TL3 BH-UP	SPH8000TL3 BH-UP	SPH10000TL3 BH-UP
Input data (PV)
Max. recommended PV power (for module STC)	6000W	7500W	9000W	10500W	12000W	15000W
Max. DC voltage	1000V
Start voltage	120V
MPPT voltage range	120V-1000V/600V
No. of MPP trackers	2
No. of PV strings per MPP tracke	1
Max. input current per MPP tracker	13.5A
Max. short-circuit current per MPP tracker	16.9A
Output data (AC)
Rated AC output power	4000W	5000W	6000W	7000W	8000W	10000W
Max. AC apparent power	4000VA	5000VA	6000VA	7000VA	8000VA	10000VA
Nominal AC voltage (range*)	230V/400V (310~476V)
AC grid frequency (range)	50/60 Hz (45-55Hz/55-65 Hz)
Max. output current	6.1A	7.6A	9.1A	10.6A	12.1A	15.2A
Adjustable power factor	0.8leading…0.8lagging
THDi	<3%
AC grid connection type	3W+N+PE
Efficiency
Max.efficiency	97.6%	97.8%	98.0%	98.2%	98.2%	98.2%
European efficiency	97.0%	97.2%	97.3%	97.4%	97.4%	97.5%
Protection devices
DC reverse polarity protection	Yes
DC switch	Yes
AC/DC surge protection	TypeII/Type II
Insulation resistance monitoring	Yes
AC short-circuit protection	Yes
Ground fault monitoring	Yes
Grid monitoring	Yes
Anti-islanding protection	Yes
Residual-current monitoring unit	Yes
String monitoring	Optional
AFCI protection	Optional
General data
Dimensions (W / H / D)	505/453/198mm
Weight	30kg
Operating temperature range	–25 °C ... +60 °C
Noise emission (typical)	≤40 dB(A)
Self-Consumption (night)	<1W
Topology	Transformerless
Cooling	Natural convection
Protection degree	IP65
Relative humidity	0~100%
Altitude	3000m
DC connection	H4 / MC4 (Optional )
AC connection	Cable gland+OT terminal
Display	OLED+LED/WIFI+APP
Interfaces: RS485 / USB / WiFi/ GPRS / RF/ LAN	Yes/Yes /Optional/Optional/Optional/Optional
Warranty: 5 years / 10 years	Yes / Optional
