Name: 5000ES SPF 5000 ES PV Solar Hybrid Inverter Off Grid Monocrystalline Silicon 3500w 5000w
Brand: SHENZHEN HODAS TECHNOLOGY COMPANY
SKU: SPF 5000
Availability: InStock

Home > products > Solar Hybrid Inverter >

5000ES SPF 5000 ES PV Solar Hybrid Inverter Off Grid Monocrystalline Silicon 3500w 5000w

Off Grid Solar PV Inverter

3500w Off Grid Inverter

Monocrystalline Silicon Hybrid PV Inverter

Place of Origin:

CHINA

Brand Name:

Growatt

Certification:

TUV

Model Number:

SPF 5000

Request A Quote

Product Details

Product Name:

Growatt 5000ES SPF 5000 ES Inverter Off Grid 3500w 5000w

Solar Cell:

Mono/Poly/5BB/6BB/9BB

Number Of Cells:

60(6*10)Pcs/72(6*12) Pcs/78(6*13) Pcs

Load Power (W):

1-10 KW

Solar Cells:

Monocrystalline,Polycrystalline,Amorphous Silicon

Frame:

Anodized Aluminium Alloy

Material:

Monocrystalline Silicon

Warranty:

Growatt Guarantee

Glass:

3.2mm High Transmission Tempered Glass

Inverter:

5kw Inverter

Power System:

Off Grid Solar Power Solution System

Mounting Type:

Ground Mounting, Roof Mounting, Carport Mounting

Battery Type:

Lead-Acid, Lithium Ion, Gel, Lead Acid/Gel/Lithium

Output Voltage (V):

110/120/220/230V, 110/120/220/230V

Payment & Shipping Terms

Minimum Order Quantity

100PCS

Packaging Details

27pcs/ per pallet 270pcs/ 1*20' container 648pcs/ 1*40' container

Delivery Time

20-25 work days

Payment Terms

T/T, Western Union, MoneyGram

10KW PV Solar Hybrid Inverter 99% Efficiency MPPT Controller

Get Best Price

3KVA Off Grid Solar Hybrid Inverter 3kw 90-93% Efficiency Overload Protection

Get Best Price

2400W MPPT On Off Grid Solar Hybrid Inverter 3KVA 24v 48v

Get Best Price

SPH 1000TL PV Solar Hybrid Inverter System DC / AC10kw

Get Best Price

86-180-25320086

info@szhodas.com

86-0755-5320086

Contact Now

Product Description

Specification

Growatt SPF 3500~5000 ES
Model	SPF 3500 ES	SPF 5000 ES
Battery Voltage	48VDC
Battery Type	Lithium/Lead-acid
INVERTER OUTPUT
Rated Power	3500VA/ 3500W	5000VA/ 5000W
Parallel Capability	Yes, 6 units maximum
AC Voltage Regulation (Battery Mode)	230VAC ± 5% @ 50/60Hz
Surge Power	7000VA	10000VA
Efficiency (Peak)	93%
Waveform	Pure sine wave
Transfer Time	10ms typical, 20ms Max
SOLAR CHARGER
Maximum PV Array Power	4500W	6000W
MPPT Range @ Operating Voltage	120VDC ~ 430VDC
Number of Independent MPP Trackers/ Strings Per MPP Tracker	1/1
Maximum PV Array Open Circuit Voltage	450VDC
Maximum Solar Charge Current	80A	100A
AC CHARGER
Charge Current	60A	80A
AC Input Voltage	230 VAC
Selectable Voltage Range	170-280 VAC (For Personal Computers) ; 90-280 VAC (For Home Appliances)
Frequency Range	50Hz/60Hz (Auto sensing)
PHYSICAL
Protection Degree	IP20
Dimension (W/H/D)	330/485/135mm	330/485/135mm
Net Weight	11.5kgs	12kgs
OPERATING ENVIRONMENT
Humidity	5% to 95% Relative Humidity(Non-condensing)
Altitude	<2000m
Operating Temperature	0°C - 55°C
Storage Temperature	-15°C - 60°C

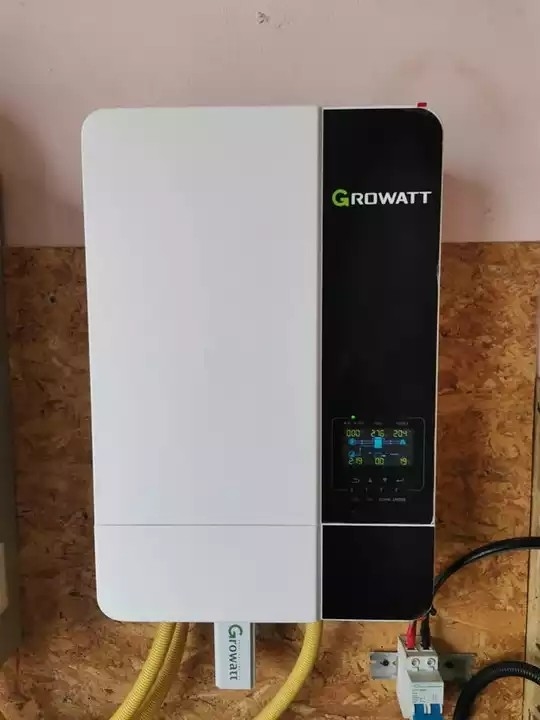

Detail photos

Feedback about our product

Why choose it

Key Fratures of Growatt SPF 3500ES and SPF 5000ES: 1. Work with or without battery, both functional
2. Max parallel up to 6 pieces
3. WIFI monitoring on Phone/PC
