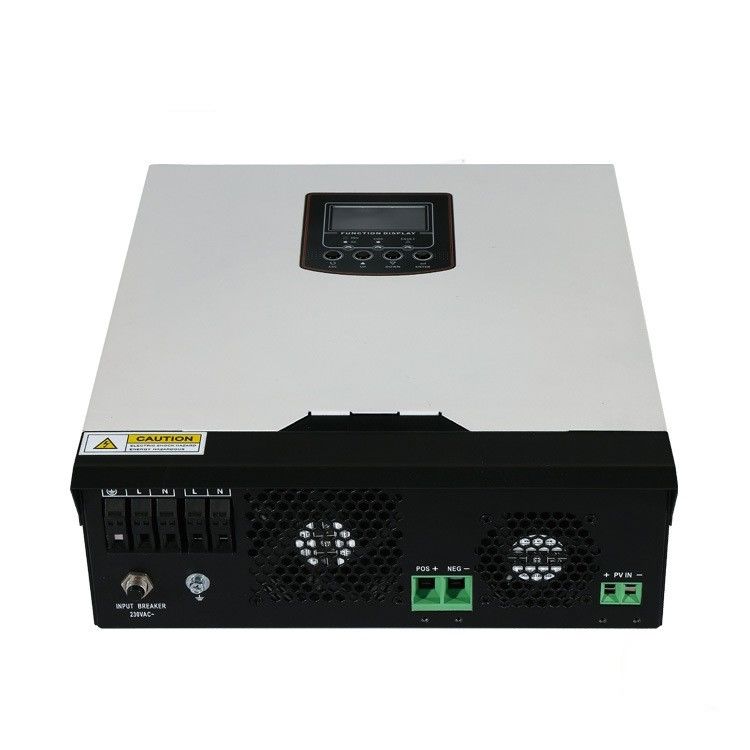

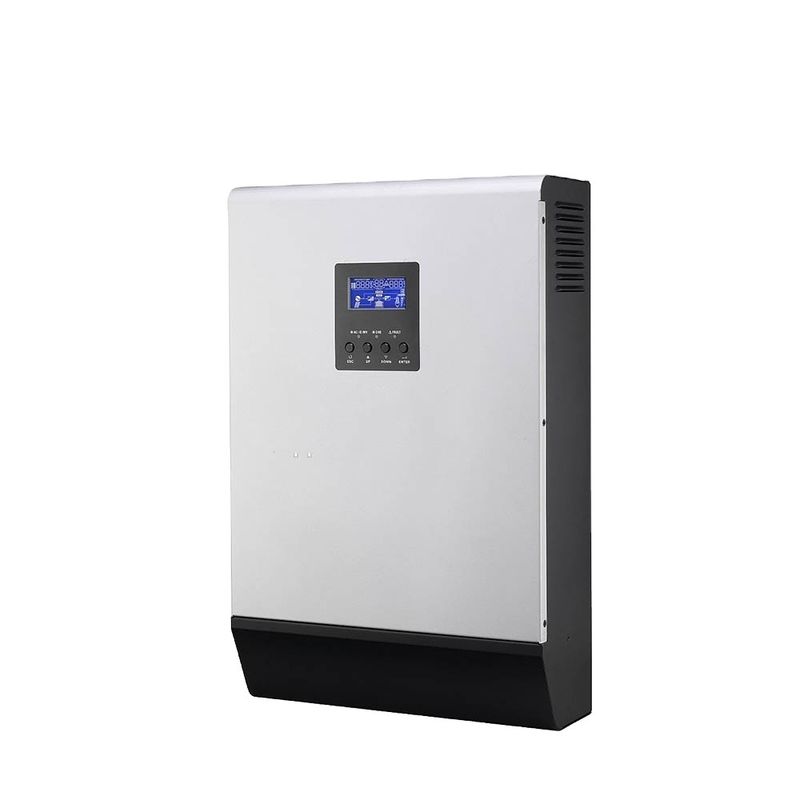

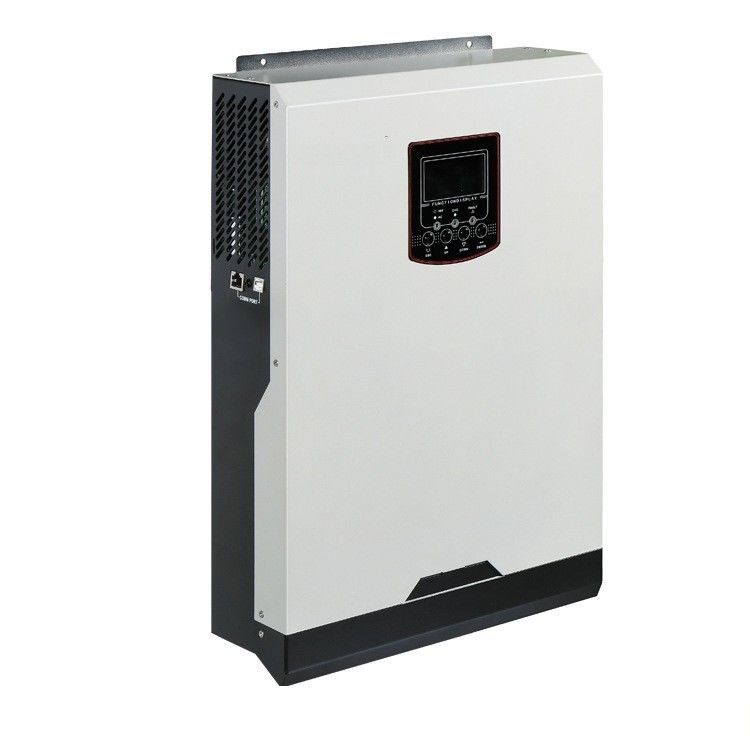

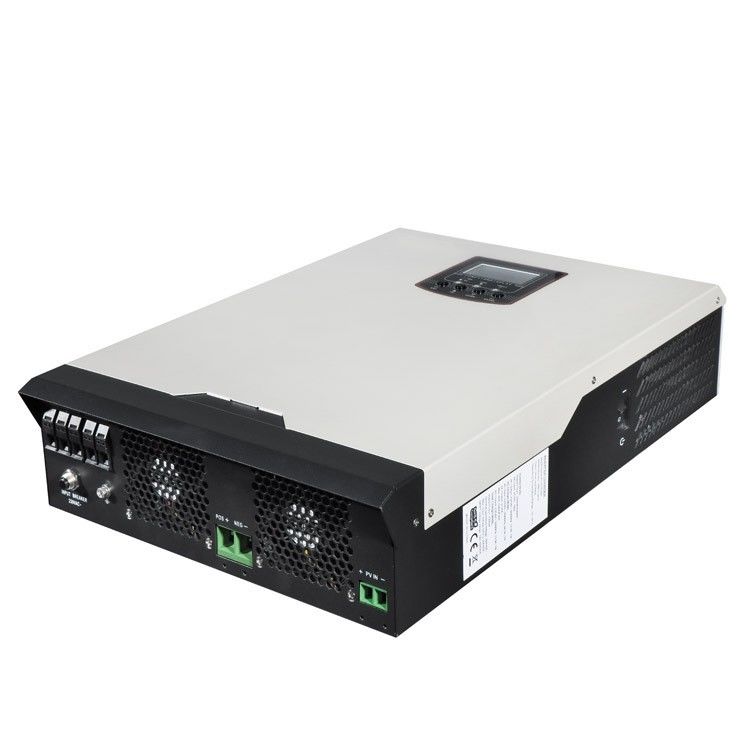

6KW On Grid Inverter Solar System Inverter Generator
Features:
(1)The core technology from Germany.
(2)Software optimization for the power grid with much wider adaptability.
(3)Global integrated monitoring and management, supporting all kinds of portable mobile devices,HMI is optional.
(4)Wide voltage range, low starting voltage , higher conversion efficiency.
(5)Designed with latest thermal simulation technology for longer sevice life.
|
On Grid Inverter Type
|
MG6KTL-2M
|
|
Input (DC)
|
|
|
Max. DC Input Power (W)
|
6300
|
|
Max. DC Input Voltage (V)
|
600
|
|
MPPT Range (V)
|
120-550
|
|
Output (AC)
|
|
|
Rated Output Power (W)
|
6000
|
|
Max. AC Output Current (A)
|
26
|
|
Nominal Output Voltage (V) / Frequency
|
230, L+N+PE, 50Hz/60Hz
|
|
Efficiency
|
|
|
Max. Efficiency
|
97.80%
|
|
Euro-efficiency
|
96.80%
|
|
Protection
|
|
|
Protection
|
DC breaker, AC short-circuit protection, Over current protection, Over voltage protection, Isolation protection,
RCD, Surge protection, Anti-island protection, Over-temperature protection, Ground fault monitoring, etc.
|
|
General Data
|
|
|
LCD Language
|
English, Chinese, German, Dutch
|
|
Protection Degree
|
IP65
|
|
Operating Temperature Range
|
-25℃~+60℃(derate after 45℃)
|
|
Dimension(H x W x D mm)
|
462x360x150
|
|
Weight (kg)
|
≤15
|
|
Grid Qualification
|
DIN VDE 0126-1-1:2013, VDE-AR-N 4105:2011, DIN VDE V 0124-100:2012, G83-2:2012, G59/3-2:2015,
IEC 61727(IEC62116), AS/NZS 4777.2:2015, NB/T32004-2013, IEC 60068-2-1:2007,
IEC 60068-2-2:2007, IEC 60068-2-14:2009, IEC 60068-2-30:2005, IEC 61683:1999
|
|
Safety Certificates / EMC Certificates
|
IEC 62109-1:2010, IEC 62109-2:2011, EN 61000-6-2:2005, EN 61000-6-3:2007/A1:2011
|
|
Factory Warranty (years)
|
5(standard)/10(optional)
|
