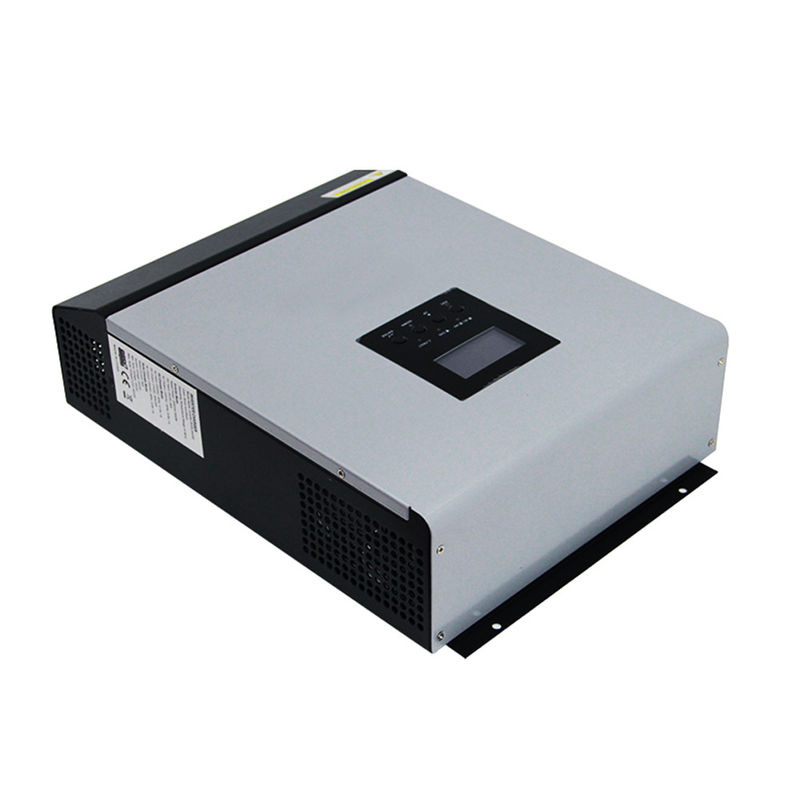

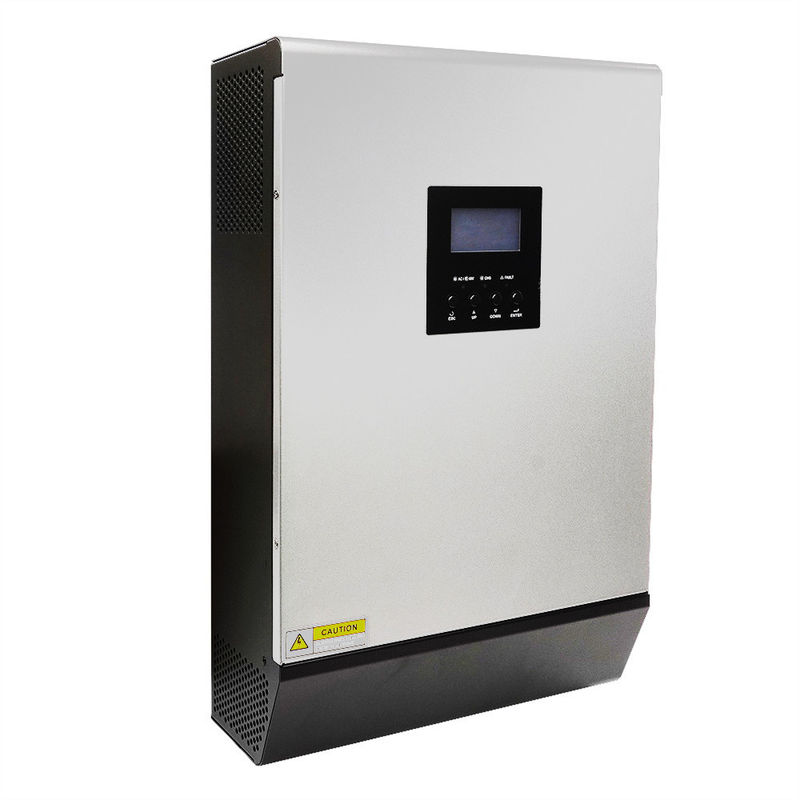

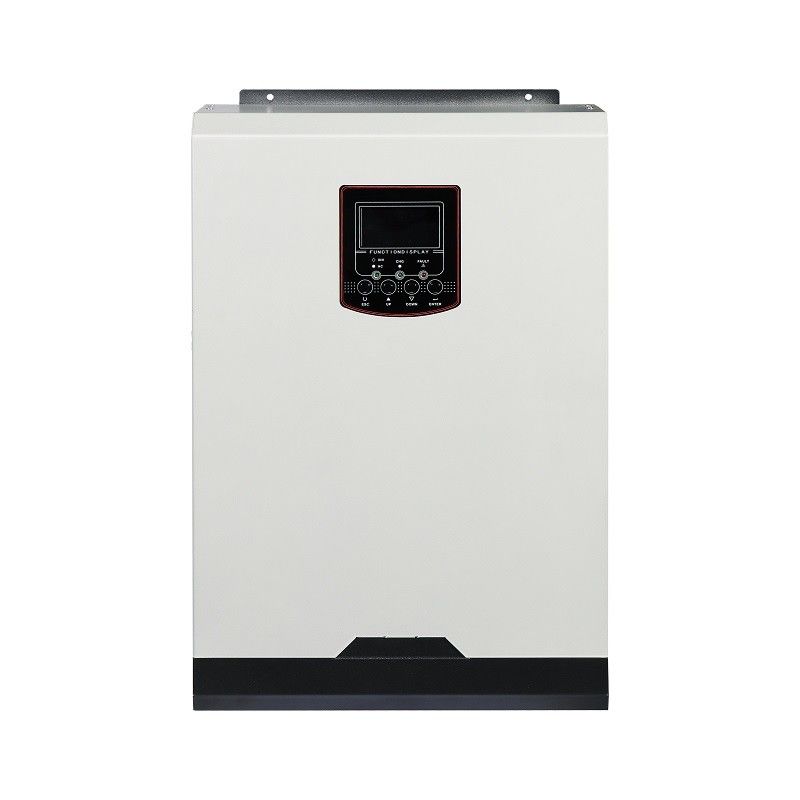

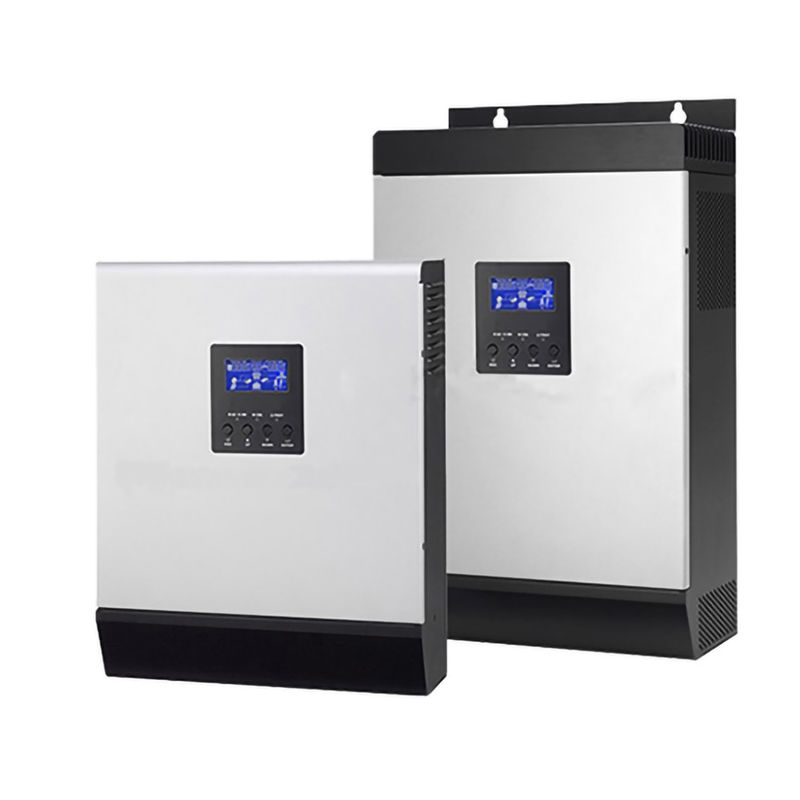

Name: Off Grid MPPT Solar Hybrid Inverter 5kw Pure Sine Wave Inverter
Brand: Hochiry
SKU: SR3222
Price: 495 USD
Availability: InStock
Rating: 4.7 (114 reviews)

Home > products > Solar Hybrid Inverter >

Off Grid MPPT Solar Hybrid Inverter 5kw Pure Sine Wave Inverter

5kw Hybrid Solar Inverter

MPPT Hybrid Solar Inverter

5kw Pure Sine Wave Inverter

Place of Origin:

CHINA

Brand Name:

Hochiry

Certification:

TUV

Model Number:

SR3222

Request A Quote

Off Grid MPPT Solar Hybrid Inverter 5kw Pure Sine Wave Inverter

Product Details

Product Name:

ON Grid Off Grid Hybrid Solar Panel Inverter

Output Frequency:

50HZ 60HZ, 50HZ/60HZ

Input Voltage:

12V24V36V, 24/48VDC/230VAC

Output Current:

15A-80A, 80A

Output Voltage:

220 230VAC, 230VAC

Output Power:

800-5000W

Output Waveform:

Pure Sine Wave Output

Application3:

Off Grid Hybrid

Efficiency:

90-93%

Protection:

Overload / Over Voltage/output Short Circuit

Payment & Shipping Terms

Minimum Order Quantity

100PCS

Price

495

Payment Terms

T/T, Western Union, MoneyGram

Supply Ability

3000KM/Week

10KW PV Solar Hybrid Inverter 99% Efficiency MPPT Controller

Get Best Price

3KVA Off Grid Solar Hybrid Inverter 3kw 90-93% Efficiency Overload Protection

Get Best Price

2400W MPPT On Off Grid Solar Hybrid Inverter 3KVA 24v 48v

Get Best Price

SPH 1000TL PV Solar Hybrid Inverter System DC / AC10kw

Get Best Price

86-180-25320086

info@szhodas.com

86-0755-5320086

Contact Now

Product Description

5KW MPPT Hybrid Solar Hybrid Inverter Off Grid Tie Pure Sine Wave Parallel Connect Function Off-Grid Solar System

Equipped with PM solar charge controller to maximize and regulate DC power from the solar array for the charging the battery bank. Transformer less design provides reliable power conversion in compact size and with high efficiency.With aluminum housing ,integrated interface system.lt's light and handy ,making installation easier.lt's the ideal inverter for small PV plants ,or individually for small houses both indoors and outdoors.

Features

Pure sinewave inverter
Built-in PWM solar charge controller
Selectable input voltage range for home appliances and personalcomputers
Selectable charging current based on applications
Configurable AC/Solar input priority via LCD setting
Compatible to mains voltage or generator power
Auto restart while AC is recovering
Overload and shortcircuit protection
Smart battery charger design for optimized battery performance
Coldstart function

Technical data

Modle	SHMT-1K12	SHMT-1K24	SHMT-1K48	SHMT-2K24	SHMT-2K48	SHMT-3K24	SHMT-3K48	SHMT-4K48	SHMT-5K48
RATED POWER	1000VA	1000VA	1000VA	2000VA	2000VA	3000VA	3000VA	4000VA	5000VA
INPUT
AC Voltage	120 VAC or 230 VAC			120 VAC or 230 VAC				230 VAC
Selectable Voltage Range	170-280 VAC(for personal computers) 90-280 VAC(for home appliances)
Frequency Range	50Hz/60Hz
OUTPUT
AC Voltage(Inverter Mode	120/230VAC±3%			120/230VAC±3%				230VAC±3%
Surge Power	2000VA			4000VA		6000VA		8000VA	10000 VA
Efficiency (Peak)	90%
Transfer Time	≤10ms(For Personal Computers)(For Home Appliances)
Waveform	Pure sine wave
BATTERY & AC CHARGER
Battery Voltage	12VDC	24VDC	48VDC	48VDC	24VDC	24VDC	48VDC	48VDC	48VDC
Floating Charger Voltage	13.8VDC	27.6VDC	54VDC	54VDC	27.6VDC	27.6VDC	54VDC	54VDC	54VDC
Overcharge Protection	16VDC	31VDC	62VDC	62VDC	31VDC	31VDC	62VDC	62VDC	62VDC
SOLAR CHARGER & AC CHARGER
Maximum PV Array Power	400W	800W	1500W	1500W	800W	1500	3000W	3000W	3000W
MPPT Range @ Operating Voltage	20V-80VDC	37V-100VDC	72V-145VDC	72V-145VDC	37V-100VDC	37V-100VDC	72V-145VDC	72V-145VDC	72V-145VDC
Maximum PV Array Open Circuit Voltage	90VDC	110VDC	150VDC	150VDC	110VDC	110VDC	150VDC	150VDC	150VDC
Maximum Charge Current	10A or 20A			20A or 30A				60A
Standby Power Consumption	11W
Maximum Efficiency	93%
PHYSICAL
Dimension, DWH(mm)	95240316mm			100272355mm				120295468mm
Net Weight (kgs)	5.0kg			6.4kg		6.9kg		9.8kg	10.5kg
OPERATING ENVIRONMENT
Humidity(Noncondensing)	5% to 95% Relative Humidity
Operating Temperature	0℃～55℃
Storage Temperature	(-15℃～60℃)
