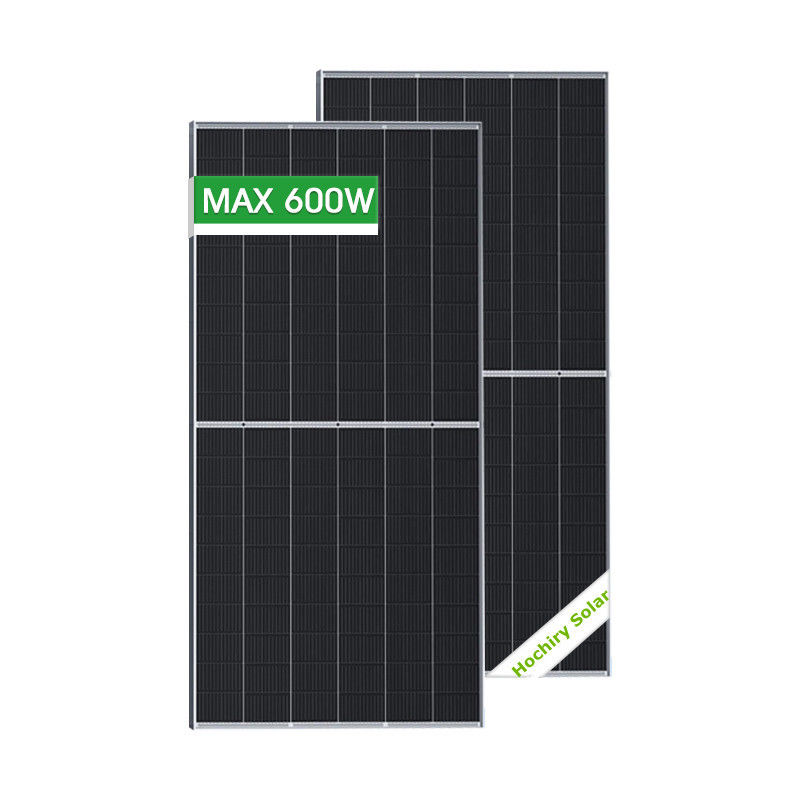

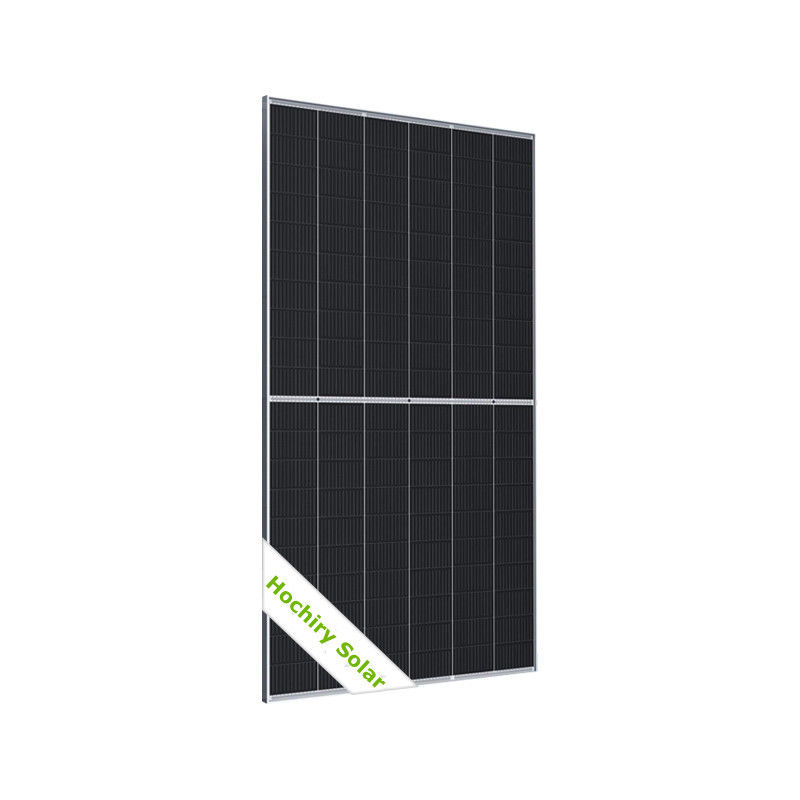

Name: 600 Watt Mono Perc Half Cell Solar Panels IP68 With White Backsheet
Brand: Hochiry
SKU: HR450M-144HC
Rating: 4.7 (110 reviews)

Home > products > Solar PV Panel >

600 Watt Mono Perc Half Cell Solar Panels IP68 With White Backsheet

Mono Perc Half Cell Solar Panels

Anodized Half Cell Solar Panels

Half Cell Solar Panels IP68

Place of Origin:

CHINA

Brand Name:

Hochiry

Certification:

TUV

Model Number:

HR450M-144HC

Request A Quote

600 Watt Mono Perc Half Cell Solar Panels IP68 With White Backsheet

Product Details

Product Name:

Mono Perc Half Cell Solar Panels

Solar Cell:

Mono 156mm*156mm

Number Of Cells:

60(6*10)Pcs/72(6*12) Pcs/78(6*13) Pcs

Solar Power (w):

2000W

Max. Power:

450W 540W 600W

Solar Cells:

Monocrystalline,Polycrystalline,Amorphous Silicon

Frame:

Anodized Aluminium Alloy

Material:

Monocrystalline Silicon

Warranty:

25 Years Output Power Guarantee

Panel Efficiency:

High Efficiency 144cells

Glass:

3.2mm High Transmission Tempered Glass

Payment & Shipping Terms

Minimum Order Quantity

100PCS

Packaging Details

27pcs/ per pallet 270pcs/ 1*20' container 648pcs/ 1*40' container

Delivery Time

20-25 work days

Payment Terms

T/T, Western Union, MoneyGram

144 Cells Monocrystalline Pv Module 440W 445W For Solar Energy

Get Best Price

PERC 450w Solar Pv Module Monocrystalline Silicon Sunpower Solar Panels

Get Best Price

72 Cells 420W PERC Photovoltaic Solar PV Panel IP68 Anodized

Get Best Price

Monocrystalline Half Cut Solar Panel 580w Photovoltaic Mono Solar Module

Get Best Price

86-180-25320086

info@szhodas.com

86-0755-5320086

Contact Now

Product Description

Hochiry 560W 570W 580W 600Watt Mono Perc Half Cell Solar Panels

Model Number:HCR450M-144
Weight:24kg
Size:2115*1052*40mm(Opt)
Junction Box:IP68 Rated
Solar cell: Monocrystalline, PERC,166mm(9BB)
TPT back sheet:White Backsheet
Connector:MC4 Compatible /MC4 EVO2/TS4*
Glass:3.2mm, High Transmission, AR Coated Heat

Half Cut Technology
Under the same shadow condition, power loss of half-cell solar panel is less than that of full cell solar panel.

Multi Busbar Technology
MBB technology improves efficiency of modules, offers a better aesthetic appearance.

PERC Technology
The PERC cell has a passivated rear side and a laser grooving process, which significantly improves the cell efficiency.

Product Description

ELECTRICAL DATA (STC)580-605W
Peak Power Watts-PMAX (Wp)	580	585	590	595	600
Maximum Power Voltage-VMPP (V)	33.8	34.0	34.2	34.4	34.6
Maximum Power Current-IMPP (A)	17.16	17.21	17.25	17.30	17.34
Open Circuit Voltage-VOC (V)	40.9	41.1	41.3	41.5	41.7
Short Circuit Current-ISC (A)	18.21	18.26	18.31	18.36	18.42
Module Eciency η m (%)	20.5	20.7	20.8	21.0	21.2
Power Tolerance-PMAX (W)	0 ~ +5
NOCT(Nominal Operating Cell Temperature)	43°C (±2°C)
Temperature Coecient of VOC	- 0.25%/°C
Temperature Coecient of ISC	0.04%/°C
STC: Irrdiance 1000W/m2, Cell Temperature 25ºC, Air Mass AM1.5-Measuring tolerance: ±3%

Product Details

Glass by XINYI,SG CNBMAnti-reflective glass

22% Higher Efficiency Cell by  Tier 1 Brand

Frame by Tentop(Black/Silver Optional) 120N Tensile Strength Frame

Waterproof Labels Product by Waterproof Labels Sunway/OEM

Juction Boxes by TL, QC Solar Innovative Full-Glue-Filled IP68 Waterproofness

PV Connector by TL, QC Solar MC4 4mm Qualified cable

Our Factory

Product Packaging

Note: The Above packing information contained in this web is subject to change without notice. We will offer wooden box packing

with extra material and labor costs if your order less than a pallet, we accept any customized packing as per your requests.

Project Case
