Place of Origin:
CHINA
Brand Name:
Hochiry
Certification:
TUV
Model Number:

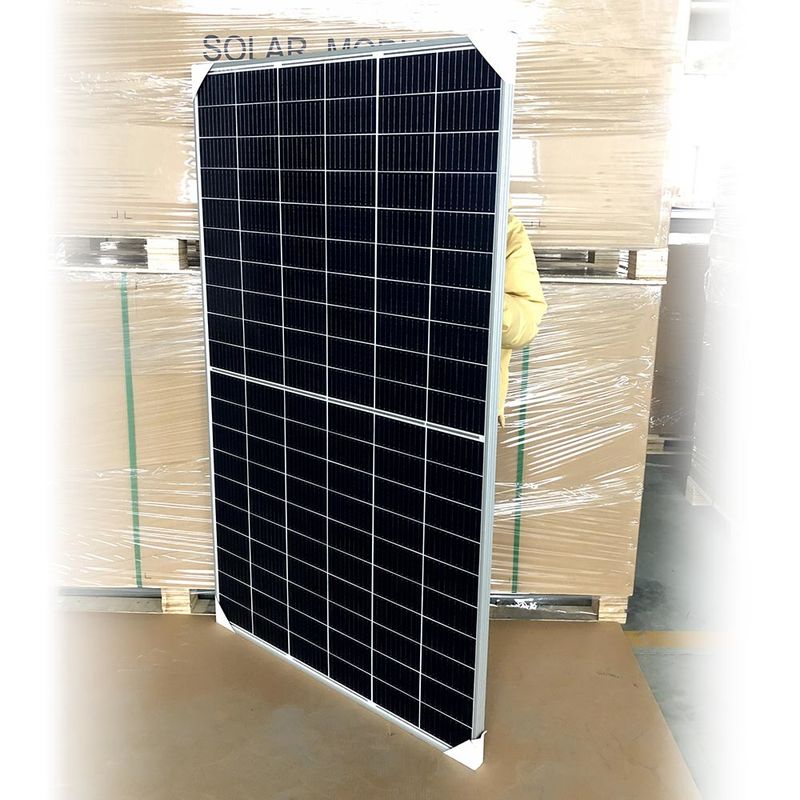

HCR570M-144
Contact Us
|
Electrical Parameters
|
||||||
|
Module
|
HCR555M-144 ~ HCR580M-144
|
|||||
|
Encapsulation
|
Class/Eva/Cell/Eva/Backsheet
|
|||||
|
Maximum Power Pmax(W)
|
555
|
560
|
565
|
570
|
575
|
580
|
|
Maximum Power Voltage(Vmp/V)
|
41.8
|
42
|
42.2
|
42.4
|
42.6
|
42.8
|
|
Maximum Power Current(Imp/A)
|
13.29
|
13.35
|
13.41
|
13.47
|
13.53
|
13.59
|
|
Open Circuit Voltage(Voc/V)
|
50
|
50.2
|
50.4
|
50.6
|
50.8
|
51
|
|
Short Circuit Currrnt(Isc/A)
|
14.05
|
14.11
|
14.17
|
14.23
|
14.29
|
14.35
|
|
Module Efficiency(%)
|
21.7
|
21.9
|
22.1
|
22.3
|
22.5
|
22.7
|
|
Power Tolerance(W)
|
0~+5W
|
|||||
|
Temperature Coefficient of Isc(αIsc)
|
+0.059%/℃
|
|||||
|
Temperature Coefficient of Voc(βVoc)
|
-0.330%/℃
|
|||||
|
Temperature Coefficient of Pmax(γVoc)
|
-0.410%/℃
|
|||||
|
STC
|
Irradiance 1000w/㎡, Cell Temperature 25℃, Air Mass 1.5
|
|||||
