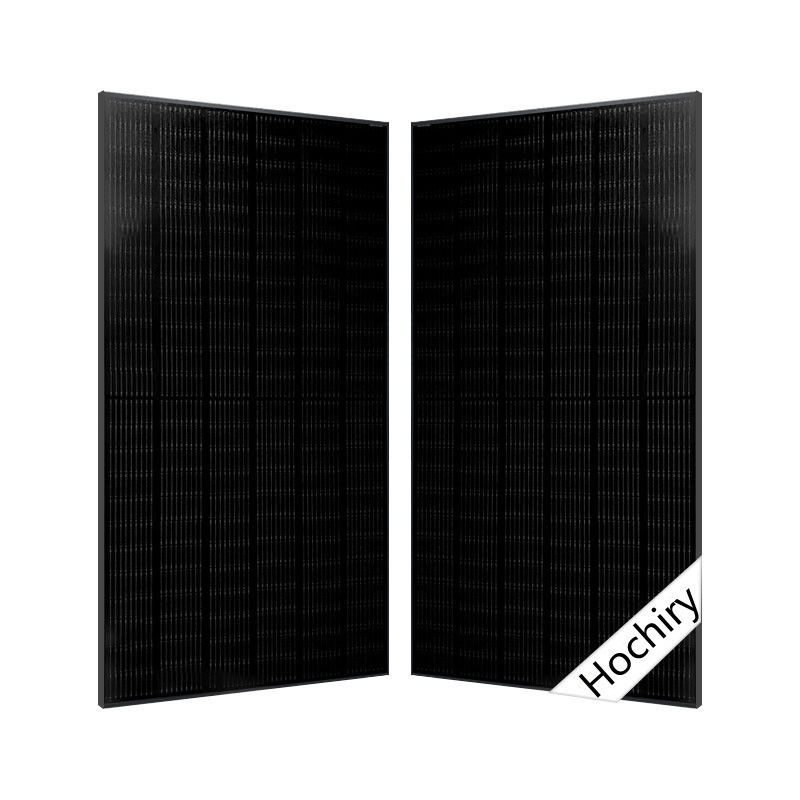

Hochiry Black Solar Panels 144 Cells Mono Photovoltaic Module 440W 445W 450W 455W 460W Solar Panels For Solar Energy
Model Number:HCR460M-144 Weight:24kg Size:2256*1132*35mm(Opt) Junction Box:IP68 Rated Solar cell: Monocrystalline, PERC,166mm(9BB) TPT back sheet:White Backsheet Connector:MC4 Compatible /MC4 EVO2/TS4* Glass:3.2mm, High Transmission, AR Coated Heat
Product Description
Electrical Parameters
Module
HCR440M-144 ~ HCR460M-144
Encapsulation
Class/Eva/Cell/Eva/Backsheet
Maximum Power Pmax (W)
440
445
450
455
460
Maximum Power Voltage (Vmp/V)
40.5
40.8
41
41.3
41.6
Maximum Power Current (Imp/A)
10.86
10.92
10.98
11.04
11.1
Open Circuit Voltage (Voc/V)
49
49.2
49.5
49.8
50.1
Short Circuit Current (Isc/A)
11.3
11.36
11.42
11.48
11.54
Cell Efficiency(%)
22.18
22.43
22.68
22.93
23.19
Module Efficiency (%)
20.24
20.47
20.7
20.93
21.16
Power Tolerance (W)
0 ~ +5W
Temperature Coefficient of Isc (αIsc)
0.06%/℃
Temperature Coefficient of Voc (βVoc)
0.30%/℃
Temperature Coefficient of Pmax (γPmp)
0.38%/℃
STC
Irradiance 1000W/㎡, Cell Temperature 25℃ , Air Mass 1.5
Product Details
Glass by XINYI,SG CNBM
Anti-reflective glass
22% Higher Efficiency
Cell by Tier 1 Brand
Frame by Tentop(Black/Silver Optional) 120N Tensile Strength Frame
Waterproof Labels
Product by Waterproof Labels Sunway/OEM
Juction Boxes by TL, QC Solar
Innovative Full-Glue-Filled IP68 Waterproofness
PV Connector by TL, QC Solar
MC4 4mm Qualified cable
Our Factory
Product Packaging
Note: The Above packing information contained in this web is subject to change without notice. We will offer wooden box packing
with extra material and labor costs if your order less than a pallet, we accept any customized packing as per your requests.
