Place of Origin:
CHINA
Brand Name:
Hochiry
Certification:
TUV
Model Number:

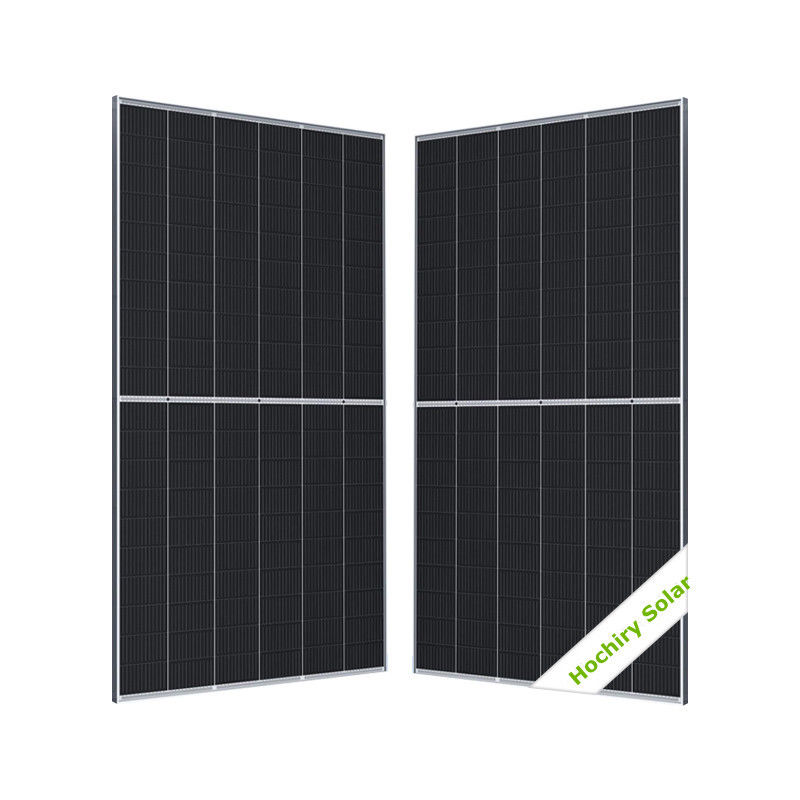

HR450M-144HC
Contact Us
|
ELECTRICAL DATA (STC)580-605W
|
|||||
|
Peak Power Watts-PMAX (Wp)
|
580
|
585
|
590
|
595
|
600
|
|
Maximum Power Voltage-VMPP (V)
|
33.8
|
34.0
|
34.2
|
34.4
|
34.6
|
|
Maximum Power Current-IMPP (A)
|
17.16
|
17.21
|
17.25
|
17.30
|
17.34
|
|
Open Circuit Voltage-VOC (V)
|
40.9
|
41.1
|
41.3
|
41.5
|
41.7
|
|
Short Circuit Current-ISC (A)
|
18.21
|
18.26
|
18.31
|
18.36
|
18.42
|
|
Module Eciency η m (%)
|
20.5
|
20.7
|
20.8
|
21.0
|
21.2
|
|
Power Tolerance-PMAX (W)
|
0 ~ +5
|
||||
|
NOCT(Nominal Operating Cell Temperature)
|
43°C (±2°C)
|
||||
|
Temperature Coecient of VOC
|
- 0.25%/°C
|
||||
|
Temperature Coecient of ISC
|
0.04%/°C
|
||||
|
STC: Irrdiance 1000W/m2, Cell Temperature 25ºC, Air Mass AM1.5-Measuring tolerance: ±3%
|
|||||
