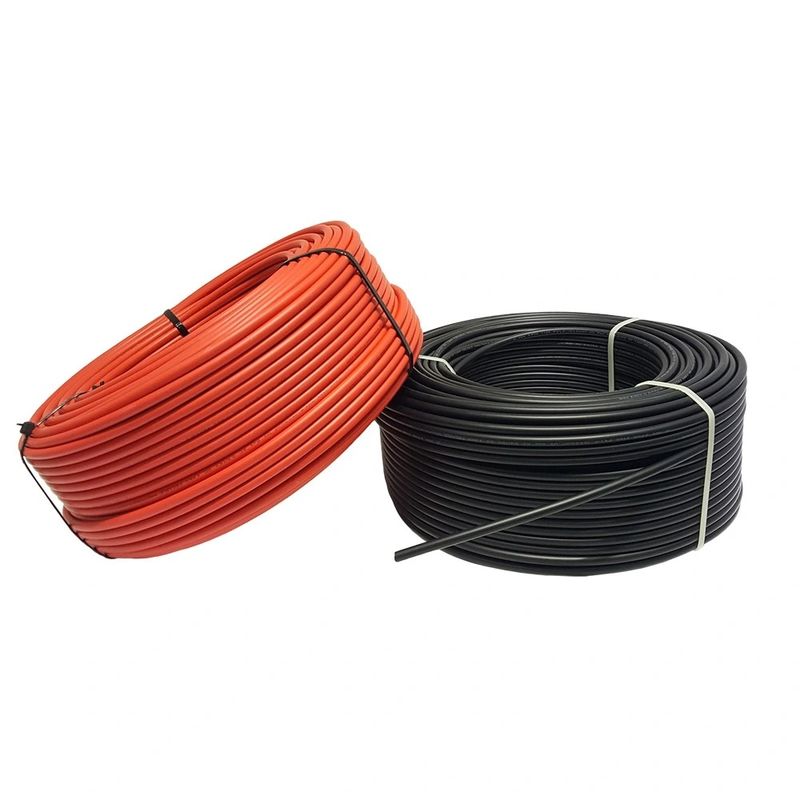

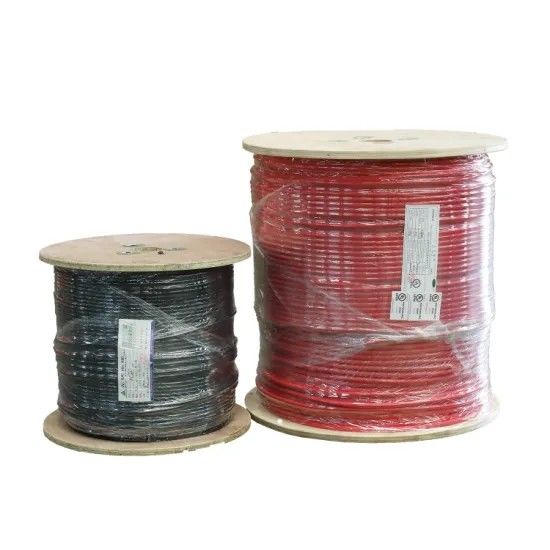

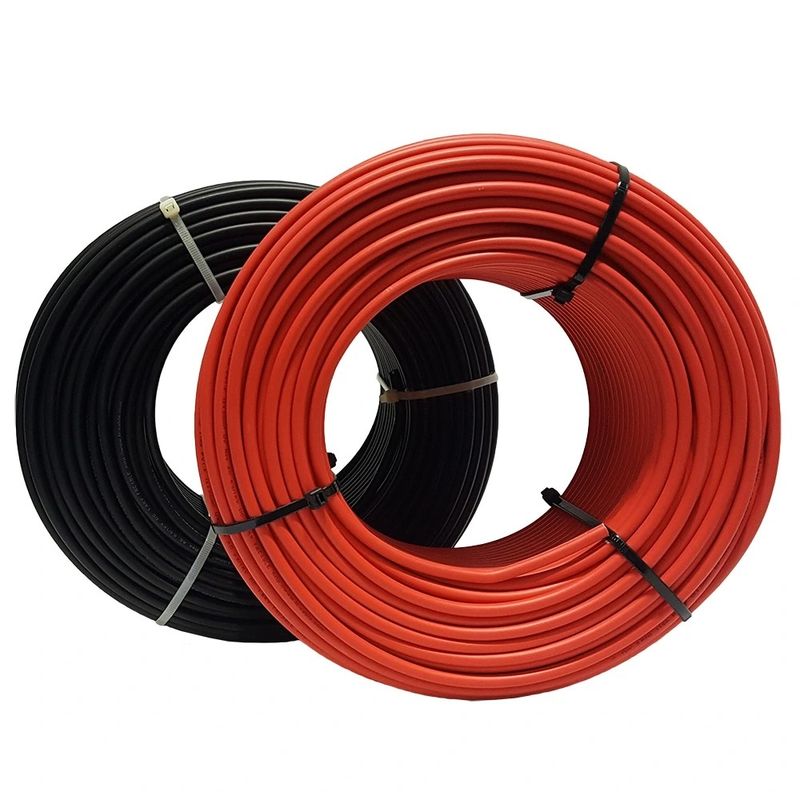

UV Resistance Solar Power Cable Coaxial Cable PV Cable
Solar Power Cable Coaxial Cable PV Cable Description:
A. Application:Double insulation,electron-beam cross linked cables for photovotaic power station.
Construction:Tinned copper,according toVDE0295/IEC60228,Class5
B. Material Properties/Standards:
1. Fire-resistant performance:IEC60332-1.
2. Smoke emission:IEC61034;EN50268-2
3. Low fire load:DIN51900
4. Approvals:TUV2PfG 1169/08.2007 PV1-F.
5. Application Standards:UNE211 23;UNE20.460-5-52, UTE C 32-502
Solar Power Cable Coaxial Cable PV Cable Technical Data:
1. Nominal Voltage:U0/U=600/1000V AC, 1000/1800V DC ;
2. Test Voltage:6500V,50Hz,5Min.
3. Temperature Rating:45oC upto+125oC, -40oF upto+257oF, Ambient temperature:25years(TUV) -40oC upto+90oC, -40oF upto+194oF, Max.Short circuit temperature:280oC, +536oF.
5 .Bending Radius:Fixed installation>4X Occasionally moved>5X
Solar Power Cable Coaxial Cable PV Cable Specification:
| Construction | Conductor Construction | Insulation Thickness | Sheath Thickness | Outer ø | Resistance Max. | Current Carring Capacity | Approx Weight |
| n×mm² | n/m | mm | mm | mm | Ω/Km | A | Kg/Km |
| 2×1.5 | 30/0.25 | 0.7 | 0.8 | 8.3±0.2 | 13.3 | 30 | 7.2 |
| 2×2.5 | 50/0.25 | 0.7 | 0.8 | 9.2±0.2 | 7.98 | 41 | 9.4 |
| 2×4.0 | 56/0.3 | 0.7 | 0.8 | 12.0±0.2 | 4.75 | 55 | 14.2 |
| 2×6.0 | 84/0.30 | 0.8 | 0.9 | 13.5±0.2 | 3.39 | 70 | 20 |
| 2×10.0 | 142/0.30 | 0.9 | 1.1 | 17.6±0.2 | 1.95 | 98 | 29 |
| 2×16.0 | 228/0.30 | 1.1 | 1.1 | 19.8±0.2 | 1.24 | 132 | 43 |
