Place of Origin:
CHINA
Brand Name:
Hochiry
Certification:
TUV
Model Number:
PV1500
Contact Us
Description
1. For outdoor use and it is moisture, UV and corrosion resistant.

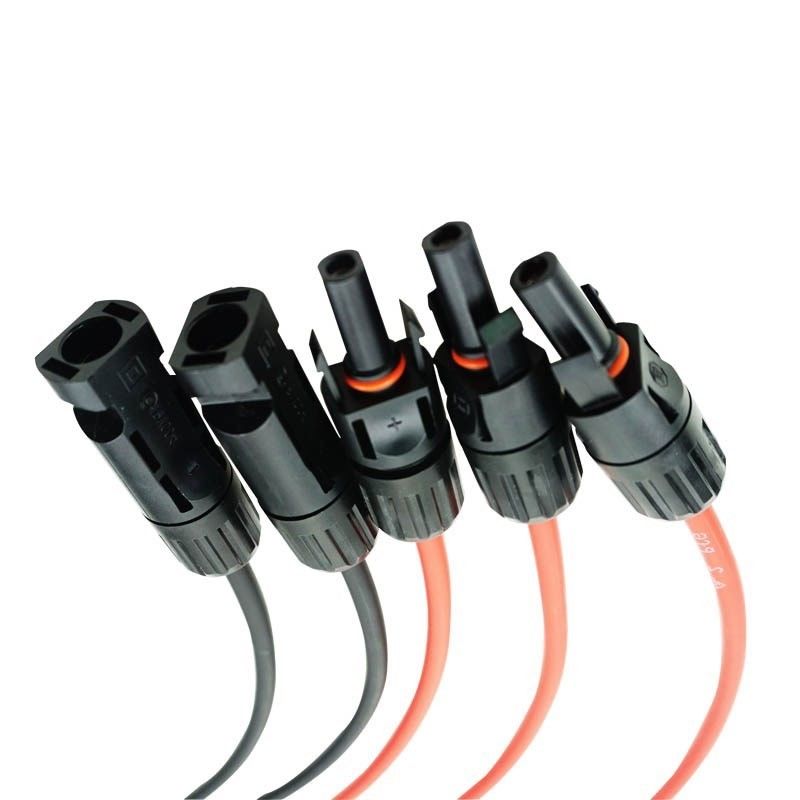

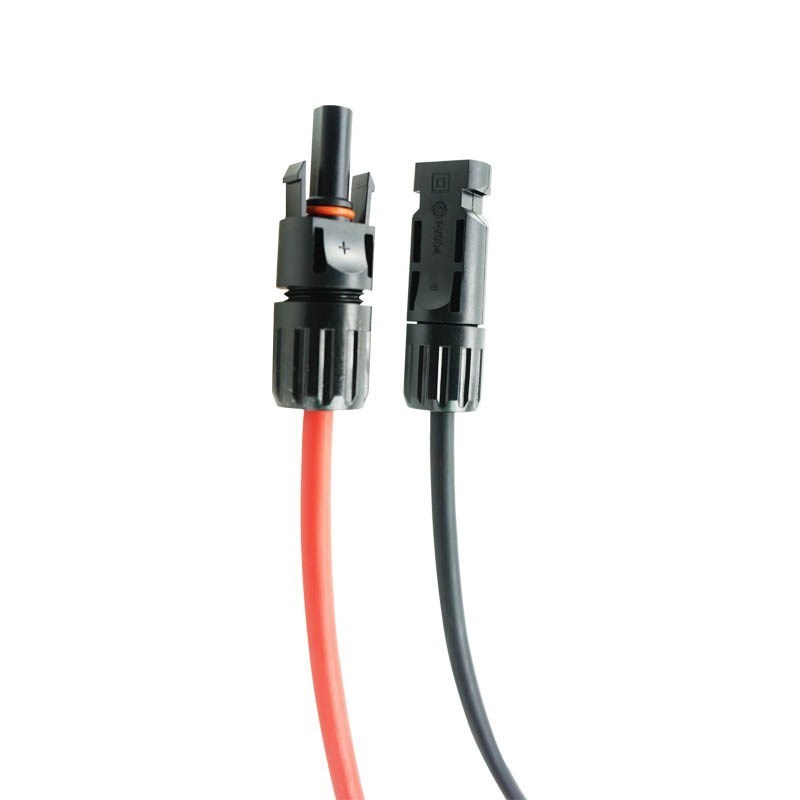

2. Male and Female Hard plastic connector at the end.

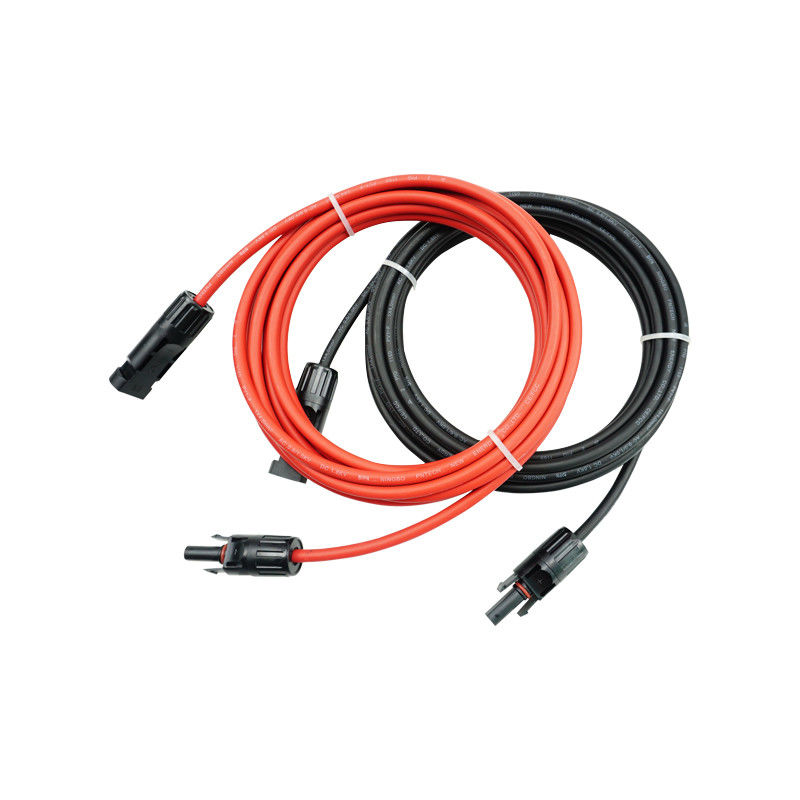

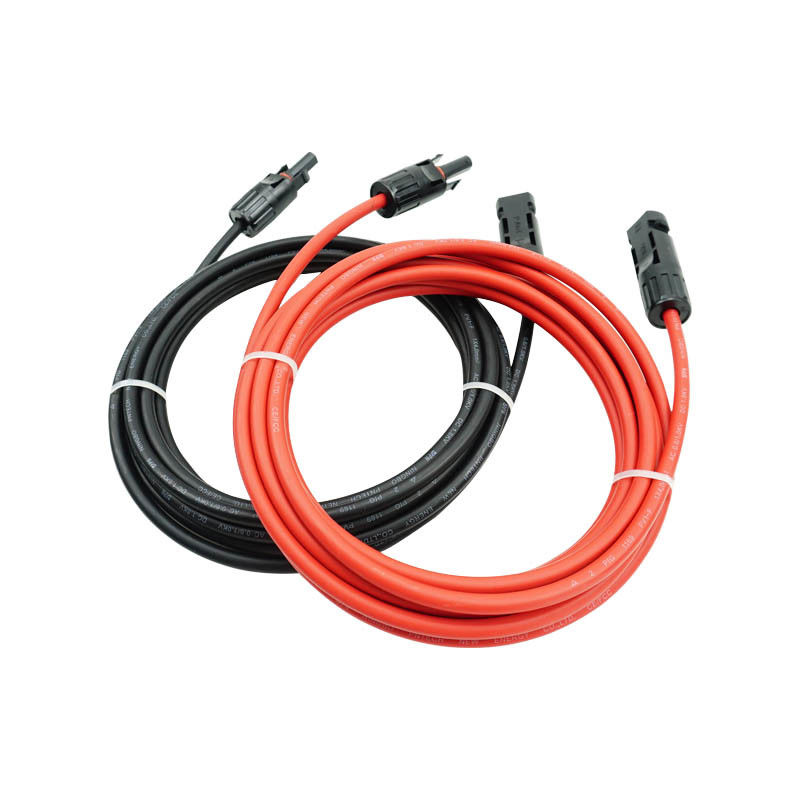

3. Black + Red Solar Panel Extension Cable Wire.
4. Extends and locks built-in cables.
5. Voltage: DC 1000V & AC 1800V.
6. Application: used for solar power board, solar energy power station.
7. Range of cross section: 2.5mm2~10mm2.
Product Specification:
|
Temperature Range
|
-40~+90℃(PE Cable -40~+85)
|
|||
|
Wire size range
|
14/12/10AWG( 2.5mm2, 4.0mm2, 6.0mm2)
|
|||
|
Current rating
|
30AMP
|
|||
|
Safety approval
|
TUV
|
|||
|
Protection class
|
II
|
|||
|
Withstanding Voltage
|
6 000V AC/minute
|
|||
|
Contact Resistance of plug connectors
|
≤5mΩ
|
|||
|
Flame class
|
U.L94-V0
|
|||
|
Locking system
|
Snap in
|
|||
|
Insulation resistance
|
≥1000M Ω
|
|||
|
Center Conductor Retention Force
|
≥0.28N
|
|||
|
Insertion force
|
≤50N
|
|||
|
Withdraw force
|
≥50N
|
|||
|
Protection degree
|
IP67
|
|||
|
Contact material
|
|
Copper,Tin Plated
|
||
|
Connector Material
|
PPO
|
|||
