Place of Origin:
CHINA
Brand Name:
Hochiry
Certification:
TUV
Model Number:
PV1000
Contact Us
Solar Cable 1000v 1500v Wire Extension Pv Cable Solar PV Extension Cable
Product Features:
Protecting against short circuits and ground leakages. Suitable for use inside and connected to insulated equipment.
High current carrying capacity.
Resistance against UV, water, ozone, fluids, oil, salt and general weathering.
Hard plastic connectors at each end. Suitable for using in solar panels, DC circuits, inverter wiring.
Engineered for long life and outdoor applications. Good abrasion resistance,excellent softness and stripping performance.
Product performance description:
1. Solar Panel Connector Male to Female Extension Cable.
2. Color: Red / Black
3. Conductor: Copper
4. Wire: Heavy duty 8/10/12/14 Gauge
5. Length: Customized (5ft/10ft/12ft/15ft/20ft)
6. Waterproof protection: IP68
6. Work for solar power station, pv connector and pv junction box, can be easily connected to similar Solar Panel connectors coming with most solar panels.
Model Type
Product Name | 1 Pair Solar Panel Extension Cable Copper Wire Solar Panel Connector Solar PV Cable 6mm 10AWG |
Insulation Material | PPO |
Contact Material | Copper,Tin plated |
Connector | Solar Panel Connector |
Wire Color | Black/Red |
Wire Gauge | 2.5mm2, 4mm2, 6mm2, 10mm2 (14/12/10/8AWG) |
Rated Current | 30A(2.5mm2),50A(4mm2,6mm2) |
Rated Voltage | 1000V/1500V DC |
Test Voltage | 8kV(50Hz,1min) |
Wire Length | 1m(3ft),2m(6ft),3m(10ft), 6m( 20ft), 10m(30ft), Can be customized |
Waterproof protection | IP68 |
Delivery Time | 5-10 working days |
Application | Suitable for Generator, Solar Panel system. |
Package | Bulk Packing, we accept custom packing |

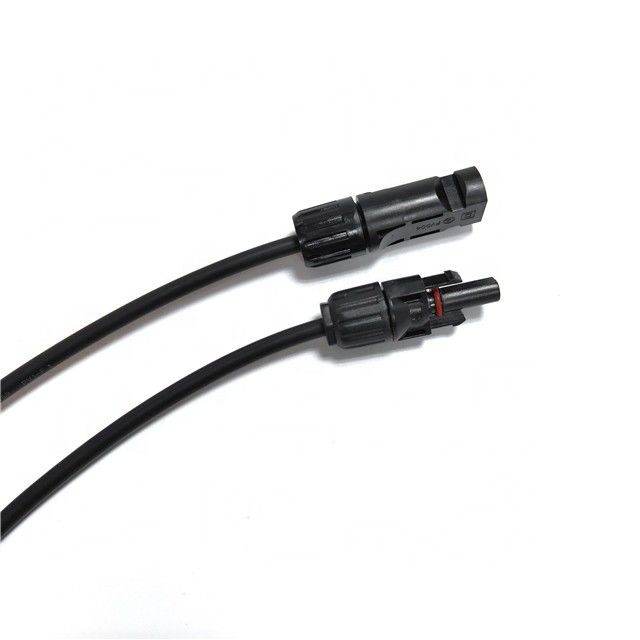

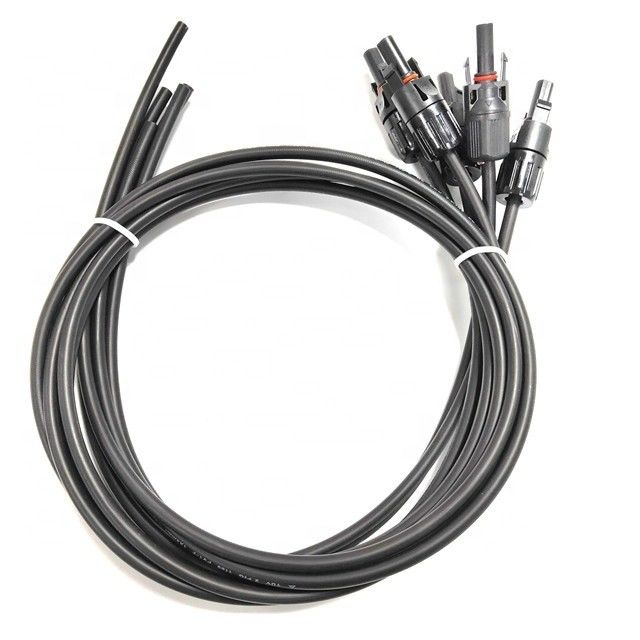

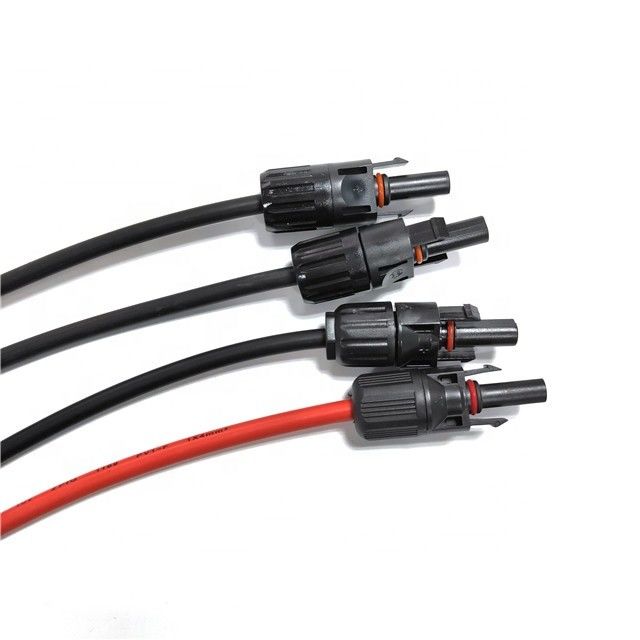

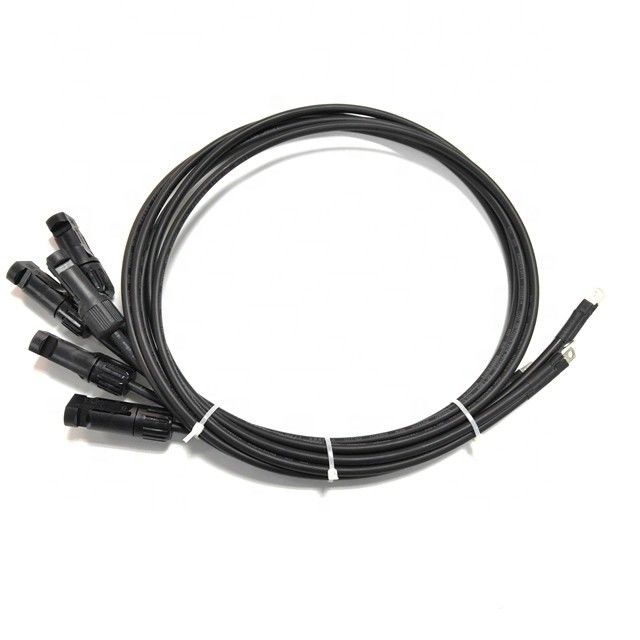

Product Picture
