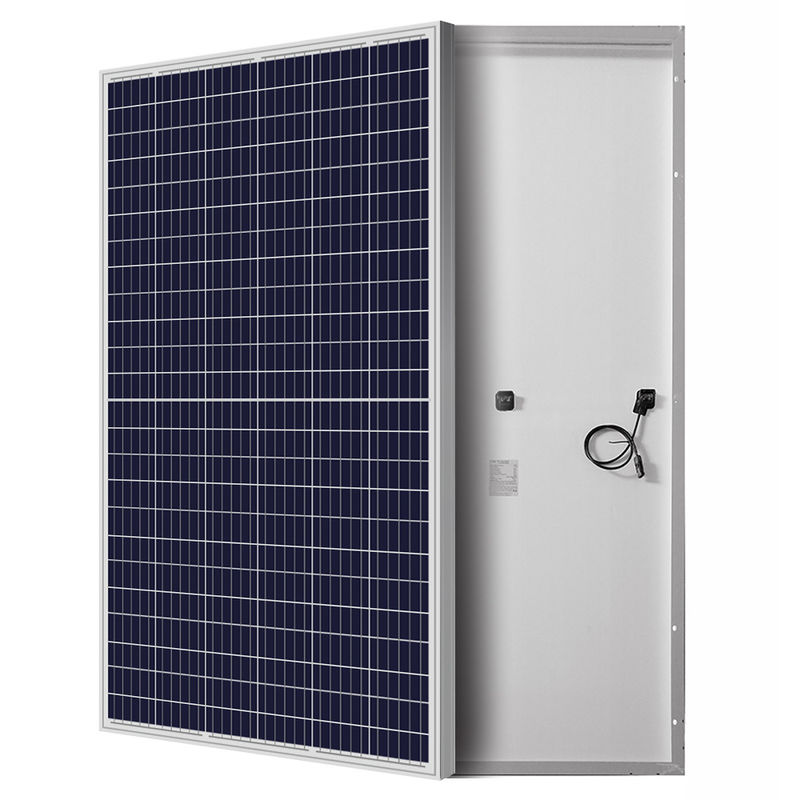

Name: 6BB 9BB Mono Perc Solar Panel 500W 520W 550W Solar Power Panel
Brand: Hochiry
SKU: Hochiry
Rating: 4.9 (107 reviews)

Home > products > Solar PV Panel >

6BB 9BB Mono Perc Solar Panel 500W 520W 550W Solar Power Panel

Mono Perc Solar Panel

Monocrystalline Perc Solar Panel

550W Solar Power Panel

Place of Origin:

CHINA

Brand Name:

Hochiry

Certification:

TUV

Request A Quote

6BB 9BB Mono Perc Solar Panel 500W 520W 550W Solar Power Panel

Product Details

Product Name:

Solar PV Photovoltaic PERC Panel Module

Solar Cell:

Mono 156mm*156mm

Material:

Monocrystalline Silicon

Max. Power:

450W 550W 600W

Solar Cells:

Monocrystalline,Polycrystalline,Amorphous Silicon

Frame:

Anodized Aluminium Alloy

Warranty:

25 Years Output Power Guarantee

Solar Power (w):

2000W

Number Of Cells:

60(6*10)Pcs/72(6*12) Pcs/78(6*13) Pcs

Panel Efficiency:

High Efficiency 144cells

Glass:

3.2mm High Transmission Tempered Glass

Payment & Shipping Terms

Minimum Order Quantity

100PCS

Packaging Details

27pcs/ per pallet 270pcs/ 1*20' container 648pcs/ 1*40' container

Delivery Time

20-25 work days

Payment Terms

T/T, Western Union, MoneyGram

144 Cells Monocrystalline Pv Module 440W 445W For Solar Energy

Get Best Price

PERC 450w Solar Pv Module Monocrystalline Silicon Sunpower Solar Panels

Get Best Price

72 Cells 420W PERC Photovoltaic Solar PV Panel IP68 Anodized

Get Best Price

Monocrystalline Half Cut Solar Panel 580w Photovoltaic Mono Solar Module

Get Best Price

86-180-25320086

info@szhodas.com

86-0755-5320086

Contact Now

Product Description

6BB 9BB Mono Perc Solar Panel 500W 520W 550W Solar Power Panel

Products Description

Electrical Parameters
Module	HCR500M-96 ~ HCR550M-96
Encapsulation	Class/Eva/Cell/Eva/Backsheet
Maximum Power Pmax(W)	500	510	520	530	540	550
Maximum Power Voltage(Vmp/V)	48.40	48.58	48.76	48.94	49.12	49.30
Maximum Power Current(Imp/A)	10.33	10.51	10.69	10.88	11.06	11.24
Open Circuit Voltage(Voc/V)	58.08	58.30	58.52	58.73	58.95	59.16
Short Circuit Currrnt(Isc/A)	10.54	10.72	10.90	11.09	11.28	11.46
Module Efficiency(%)	19.51	19.90	20.35	20.68	21.07	21.46
Power Tolerance(W)	0~+5W
Temperature Coefficient of Isc(αIsc)	+0.059%/℃
Temperature Coefficient of Voc(βVoc)	-0.330%/℃
Temperature Coefficient of Pmax(γVoc)	-0.410%/℃
STC	Irradiance 1000w/㎡, Cell Temperature 25℃, Air Mass 1.5

Product Parameter

Product Display

Production & QC

Automatic typesetting machine

After setting up the program according to the requirements of the process drawings, the typesetting machine will automatically
typeset the battery string. High precision, high efficiency, low defect rate

Solar cell Welding

Use automatic welding machine to connect solar cells in series

All the solar cells are made by top class brand, like TW Solar, Longi Solar

Automatic welding

Automatic laying of EVA, backing, automatic cutting of excess backing material 100% automation of the entire production process

100% Cells Sorting

Ensure Colour and Power Difference. Ensure high yields,consistent performance and durability, First of 52 steps strict quality control and inspection process.

Visual Inspection

Through the turning machine, completely inspect the solar panel after lamination, and record the defects and feedback to the
previous process

100% Optimal Testing

Ensure 3% Positive Power Tolerance Comprehensive QC information management system with barcode ID.Quality traceable system in place to allow quality data flow constantly.

Product packaging

PACKAGE CONFIGURATION
Container	310W-340W	360W-410W	440W-480W	500W-660W
Pallet	35Pcs	30pcs	27pcs	27pcs
20GP	390Pcs	360pcs	270pcs	180pcs
40GP	924Pcs	840pcs	780pcs	660pcs

Note: The Above packing information contained in this web is subject to change without notice. We will offer wooden box packing with extra material and labor costs if your order less than a pallet, we accept any customized packing as per your requests.
