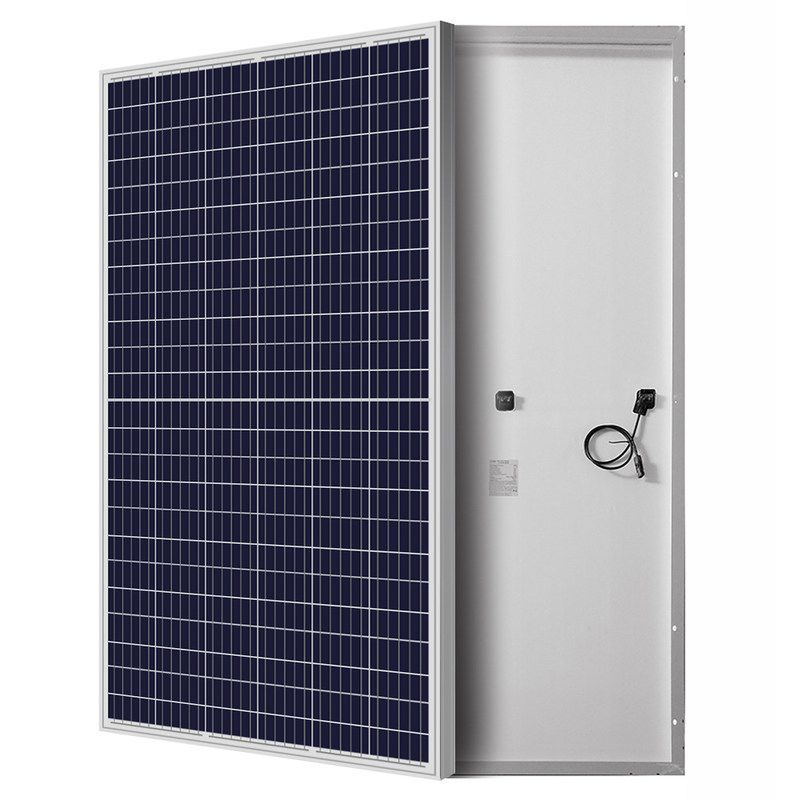

12BB Mono 600Watt Half Cut Cells Solar Panel Solar PV Photovoltaic PERC Panel Module
|
Model
|
HCR435M6-144HC
|
HCR440M6-144HC
|
HCR445M6-144HC
|
HCR450M6-144HC
|
HCR455M6-144HC
|
|
Rated Maximum Power at STC
|
435W
|
440W
|
445W
|
450W
|
455W
|
|
Open Circuit Voltage(Voc/V)
|
48.6
|
48.8
|
49.0
|
49.2
|
49.4
|
|
Maximum Power Voltage(Vmp/V)
|
40.8
|
41.0
|
41.2
|
41.4
|
41.6
|
|
Short Circuit Current(Isc/A)
|
11.4
|
11.47
|
11.54
|
11.61
|
11.68
|
|
Maximum Power Current(Imp/A)
|
10.67
|
10.74
|
10.81
|
10.88
|
10.95
|
|
Module Efficiency
|
19.6%
|
19.8%
|
20.0%
|
20.2%
|
20.4%
|
|
Standard Test Condition(STC)
|
Irradiance 1000w/m2, Cell Temperature 25 Centigrade, Air Mass 1.5
|
||||
|
ELECTRICAL DATA(NMOT)
|
|||||
|
Maximum Power-PMAX (Wp)
|
327.5
|
331.2
|
335
|
338.7
|
342.4
|
|
Maximum Power Voltage(VMPP/V)
|
38.1
|
38.3
|
38.5
|
38.7
|
38.9
|
|
Maximum Power Current-IMPP (A)
|
8.59
|
8.65
|
8.71
|
8.76
|
8.81
|
|
Open Circuit Voltage-VOC (V)
|
46.4
|
46.6
|
46.8
|
47.0
|
47.2
|
|
Short Circuit Current-ISC (A)
|
9.08
|
9.14
|
9.19
|
9.25
|
9.30
|
|
NOCT:Irradiance 800W/m2,Ambient Temperature 20°C,Wind Speed 1m/s.
|
|||||
