Name: UL PV Solar Cable 10mm2 Tinned Copper Conductor XLPE Power Cable
Brand: Hochiry
SKU: PV1500
Rating: 4.7 (170 reviews)

Home > products > PV Solar Cable >

UL PV Solar Cable 10mm2 Tinned Copper Conductor XLPE Power Cable

UL PV Solar Cable

PV Solar Cable 10mm2

XLPE Power Cable

Place of Origin:

CHINA

Brand Name:

Hochiry

Certification:

TUV

Model Number:

PV1500

Request A Quote

UL PV Solar Cable 10mm2 Tinned Copper Conductor XLPE Power Cable

Product Details

Product Name:

Solar Power Cable

Conductor Material:

Tinned Copper Strands

Jacket:

XLPO/XLPE/PVC/PE

Rated Voltage:

AC 600/1000V DC 1000/1800V

Core:

Multi-core

Conductor:

Tinned Copper Conductor

Standard:

IEC60502

Certification:

TUV& UL

Flame Test According To:

DIN EN 50265-2-1 UL 1571(VW-1)

Application:

Solar Power System

Payment & Shipping Terms

Minimum Order Quantity

100PCS

Packaging Details

1. 250meters in a roll 2. 2 rolls in a carton 3. Carton dimension:42cm*42cm*21cm 4. Net weight:35kg 5.Gross weight:36kg

Delivery Time

3-5 days

Payment Terms

T/T, Western Union, MoneyGram

Supply Ability

50000 Pieces per Week

IP68 IEC60502 PV Solar Cable 4mm2 6mm2 Male Female Solar Panel Connector

Get Best Price

DC PV Solar Cable 6mm2 1000V Tin Copper Electrical Multi Core

Get Best Price

DC 1000V 4mm 20 Feet PV1F Solar Cable IEC60502 Standard

Get Best Price

Twin Core PV Solar Cable 4mm2 Fire Resistant For Photovotaic Power Station

Get Best Price

86-180-25320086

info@szhodas.com

86-0755-5320086

Contact Now

Product Description

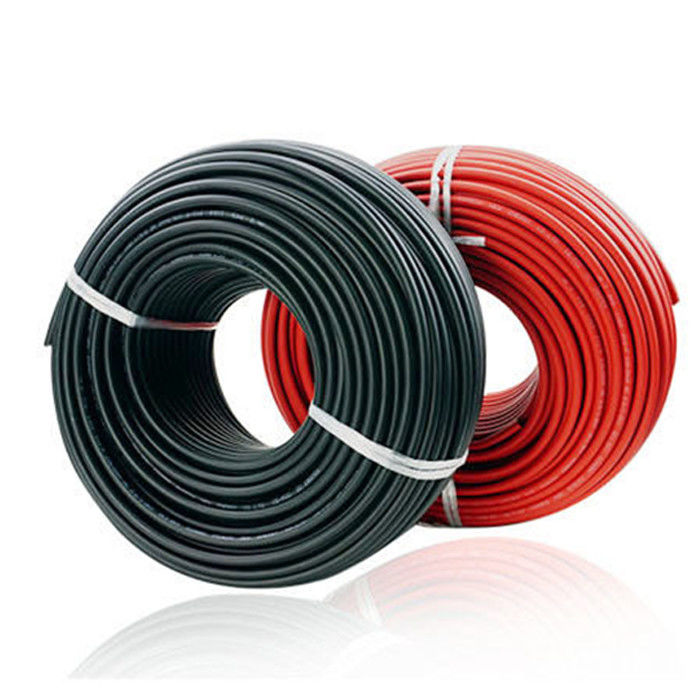

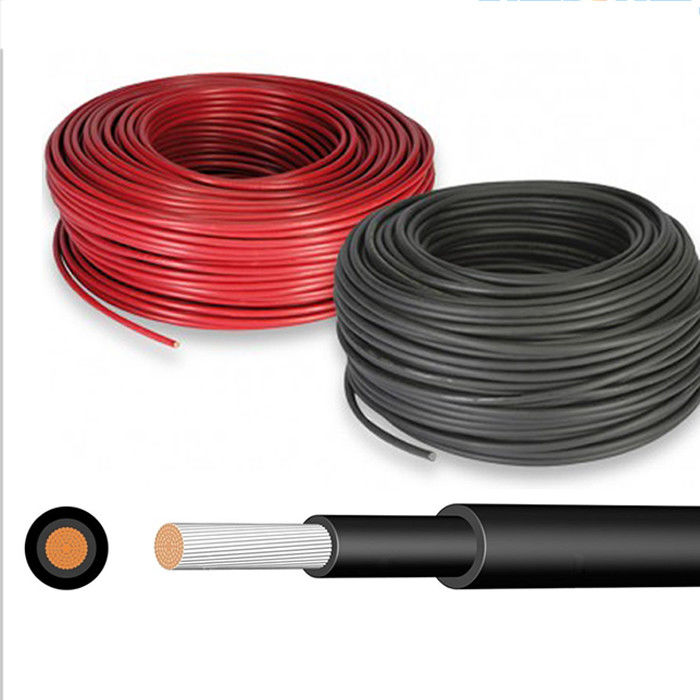

UL/TUV Approved Single Core 10mm2 Tinned Copper Conductor XLPE Insulation Solar Power Cable

Product Features :

PV1-F-06/1KV photovoltaic cable

PV1-F photovoltaic cable is a special cable used for solar photovoltaic modules in the system. It has the characteristics of weather resistance, high temperature resistance, and friction resistance. It has a long service life and high-quality oxygen-free tinned copper conductors. To ensure the superior conductive effect, high-performance insulating materials and sheath materials after radiation cross-linking by a high-energy electron accelerator have reliable insulating and mechanical properties.

1500V photovoltaic cable 1500V DC photovoltaic cable is used in the nominal 1.5KV DC voltage photovoltaic power generation system between the conductor and the conductor, and the conductor and the ground. It is an upgraded product on the basis of the original PV1-F-06/1KV photovoltaic cable. Better anti-aging effect.

1500V photovoltaic cable

Conductor section: 0.5mm2-300mm2 (other specifications can be customized);
Conductor: Tinned copper stranded wire conforms to EN60228.5 category soft conductor;
Insulation: Low-smoke halogen-free radiation cross-linked polyolefin environmentally friendly insulation material:
Sheath material: low-smoke halogen-free radiation cross-linked polyolefin environmentally friendly UV-resistant sheath material;
Insulation color: black (other colors can be customized);
Sheath color: black/red/(other colors can be customized);
Rated voltage: DC 1.5/1.5kV AC 1.0KV
Test voltage: 6500V, 50HZ, 5 minutes;
Temperature class: -45℃ to 125℃; -45 to +257;
Ambient temperature: -40℃ to +90℃; -40 to +194
Service life: 25 years (through TUV/UL)
Maximum short-circuit temperature: 280°C, +536°F;
Bending radius:
Fixed installation>4x;
Mobile installation>5x;
Material characteristics/standards;
Fire performance: EN 60332-1-2:2004;
Zero smoke emission: 1EC61034: minimum 60% light transmittance
Low fire load: DIN 51900
Certification: EN50618:2014;
Application standard:
EN50618:2014
