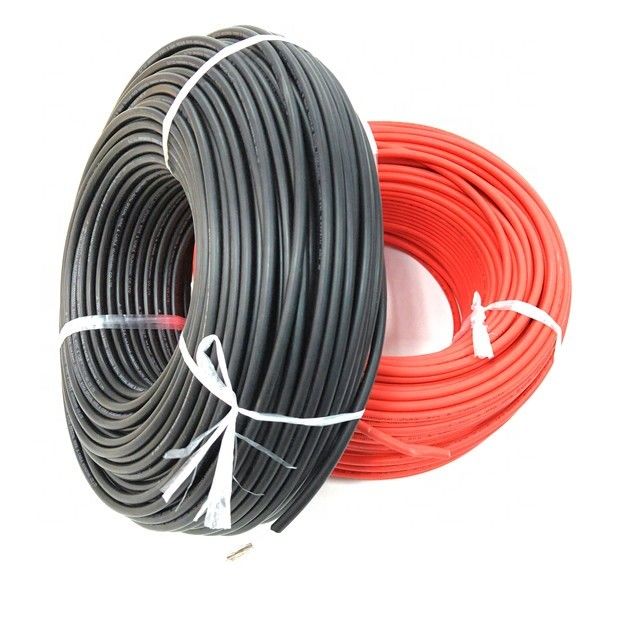

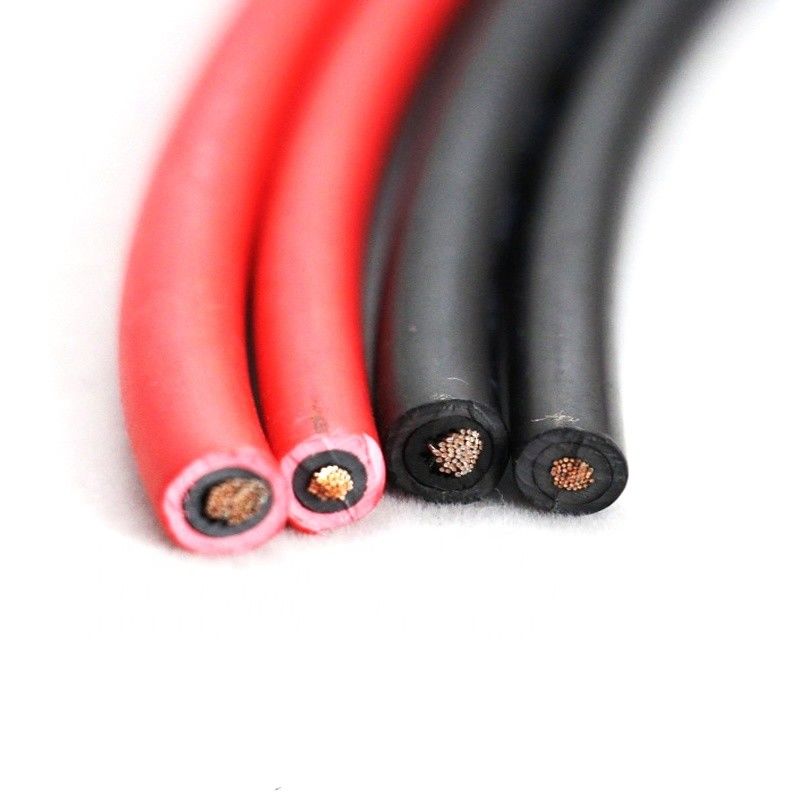

10mm2 Solar Cable Single Core Tinned Copper Conductor XLPE Insulated PVC Sheathed Cable

PV cable and wire is rated 600V,1000V,2000V,is suitable for ac and dc systems.It is rated 90,105,125 or 150°C dry and 90°C wet.Single conductor, insulated and non-integrally jacketed, sunlight resistant, photovoltaic wire rated for 90°C wet or dry, 600V for interconnection wiring of grounded and ungrounded photovoltaic power systems as described in Section 630.31 (And other applicable parts of the National Electric Code (NEC), NFPA 70). Ratings only apply to certain gage sizes.

Electrical Characteristics:
Maximum Operating Voltage: 600 VRMS (UL PV)
  Physical Characteristics:
Temperature Rating: -40°C to 90°C
Conductor AWG: 12 to 2000 AWG

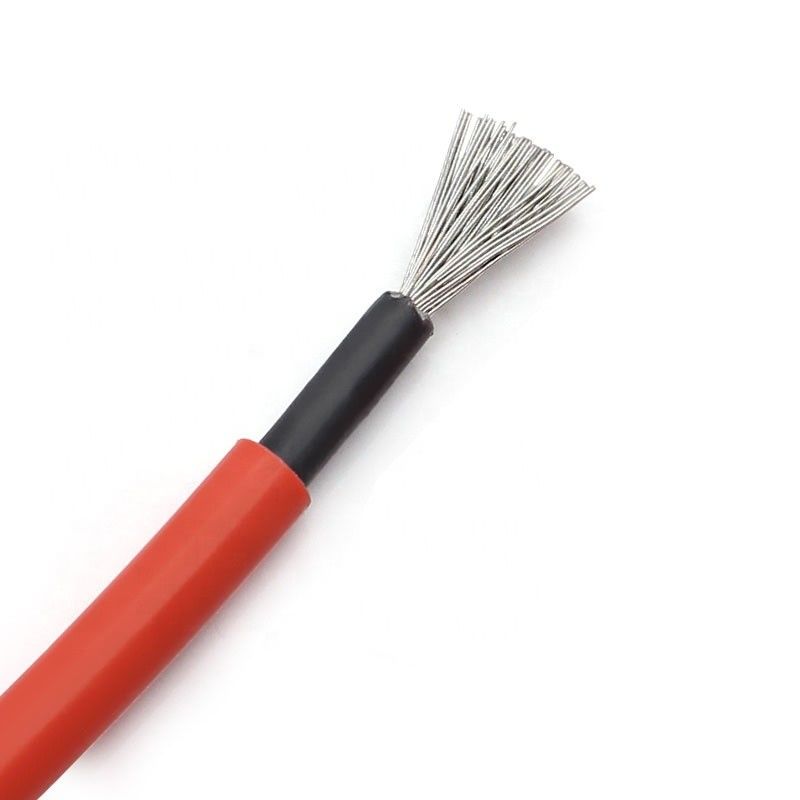

Conductor Material: Soft Annealed tinned stranded copper, per ASTM B-33 and EN 60228
Separator: Paper Tape
Insulation Material: XLPE Halogen-free, thermoset, polyolefin specifically, designed for maximum, flexibility
Jacket Material: Sunlight-Resistant PVC Black, low smoke, non-halogenated,flame retardant, oil, abrasion, chemical and sunlight    resistant cross-linked compound meeting UL 44, UL 854
Min. Bend Radius: 8x Diameter

Physical Characteristics (cont’d.):
Applicable Specifications:
UL Type PV (overall) UL 4703 USE-2 Rated (14 AWG & Larger 600V)
UL Type RHW-2 (90°C wet) (14 AWG & Larger per UL)
ROHS Compliant CE
Flame Resistance: VW-1
