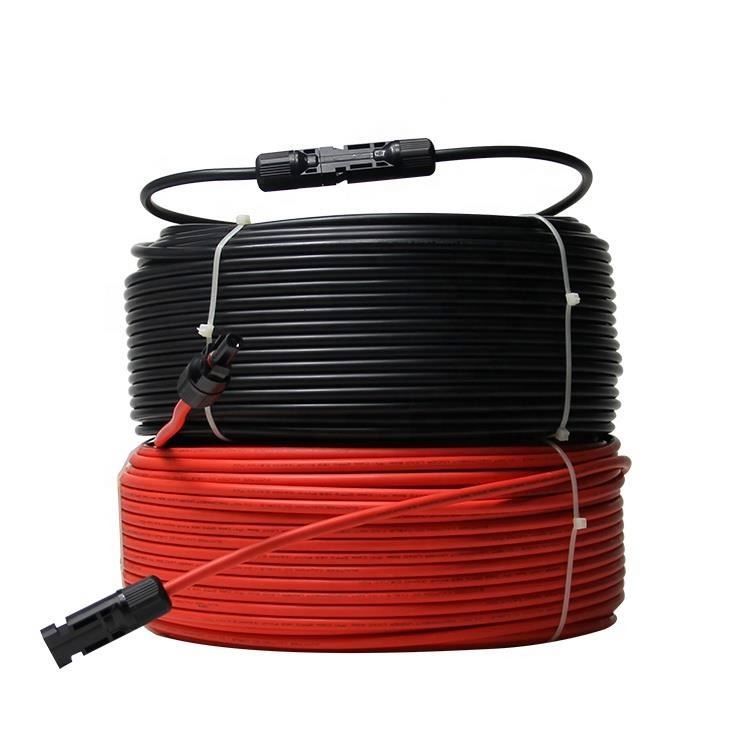

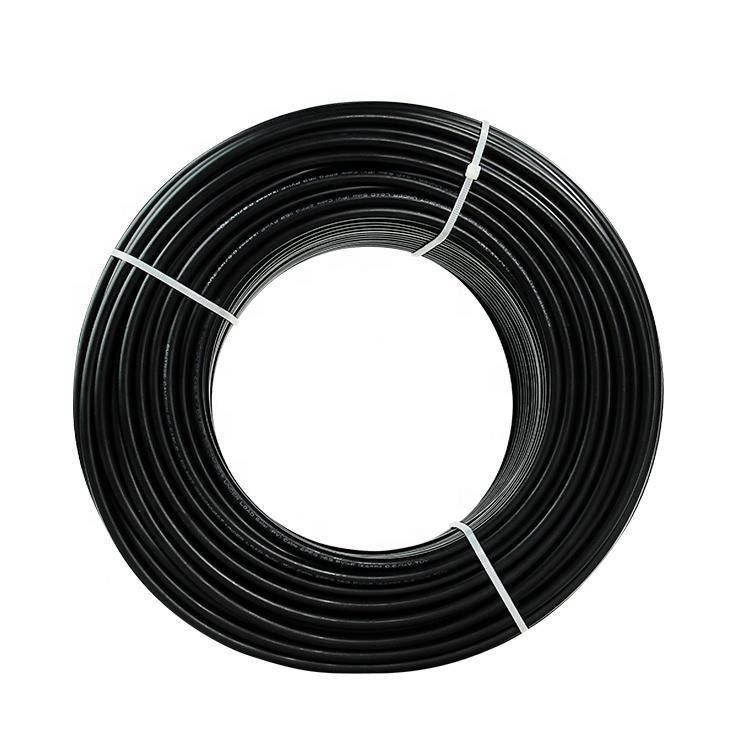

Name: Twin Core PV Solar Cable 4mm2 Fire Resistant For Photovotaic Power Station
Brand: Hochiry
SKU: PV1500
Rating: 4.7 (176 reviews)

Home > products > PV Solar Cable >

Twin Core PV Solar Cable 4mm2 Fire Resistant For Photovotaic Power Station

4mm2 PV Solar Cable

Twin Core PV Solar Cable

4mm Twin Core Solar Cable

Place of Origin:

CHINA

Brand Name:

Hochiry

Certification:

TUV

Model Number:

PV1500

Request A Quote

Twin Core PV Solar Cable 4mm2 Fire Resistant For Photovotaic Power Station

Product Details

Product Name:

Solar PV Cable Solar Panel Extension Cable

Conductor Material:

Tinned Copper Strands

Jacket:

XLPO/XLPE/PVC/PE

Core:

Multi-core

Conductor:

Tinned Copper Conductor

Standard:

IEC60502

Certification:

TUV&UL

Rated Voltage:

AC 600/1000V DC 1000/1800V

Flame Test According To:

DIN EN 50265-2-1 UL 1571(VW-1)

Application:

Solar Power System

Payment & Shipping Terms

Minimum Order Quantity

100PCS

Packaging Details

1. 250meters in a roll 2. 2 rolls in a carton 3. Carton dimension:42cm*42cm*21cm 4. Net weight:35kg 5.Gross weight:36kg

Delivery Time

3-5 days

Payment Terms

T/T, Western Union, MoneyGram

Supply Ability

50000 Pieces per Week

IP68 IEC60502 PV Solar Cable 4mm2 6mm2 Male Female Solar Panel Connector

Get Best Price

DC PV Solar Cable 6mm2 1000V Tin Copper Electrical Multi Core

Get Best Price

DC 1000V 4mm 20 Feet PV1F Solar Cable IEC60502 Standard

Get Best Price

Twin Core PV Solar Cable 4mm2 Fire Resistant For Photovotaic Power Station

Get Best Price

86-180-25320086

info@szhodas.com

86-0755-5320086

Contact Now

Product Description

4mm2 Photovoltaic Cable Twin Core DC Cable Extension Cable

Twin Core DC Cable Extension Cable Features

A. Application: Double insulation,electron-beam cross linked cables for photovotaic power station.
Construction:Tinned copper,according toVDE0295/IEC60228,Class5
B. Material Properties/Standards:
1. Fire-resistant performance:IEC60332-1.
2. Smoke emission:IEC61034;EN50268-2
3. Low fire load: DIN51900
4. Approvals:TUV2PfG 1169/08.2007 PV1-F.
5. Application Standards:UNE211 23;UNE20.460-5-52, UTE C 32-502

Product Paramenters:

Construction	Conductor construction.	Conductor	Outer	Resistance Max.	Current Carring Capacity
nxmm2	n/m	mm	mm	Ω/Km	A
1X1.5	30/0.25	1.58	4.90	13.30	30
1x2.5	50/0.25	2.02	5.45	7.98	41
1x4	56/0.3	2.30	6.10	4.75	55
1x6	84/0.3	3.42	7.20	3.39	70
1x10.0	142/0.3	4.56	9.00	1.95	98
1x16.0	228/0.3	5.60	10.20	1.24	132
1x25.0	361/0.3	6.95	12.00	0.795	176
1x35.0	525/0.3	8.74	13.80	0.565	218
1x50.0	720/0.3	9.20	14.80	0.393	280
1x70.0	988/0.3	11.00	16.90	0.277	350
1x95.0	1349/0.3	12.50	18.70	0.21	410
1x120.0	1691/0.3	14.20	20.70	0.164	480

Conductor: Tinned Copper,according to VDE0295/IEC60228,Class5
Insulation: Electron-beam cross-linked Polyolefin Copolymer TUV 2PfG/1169
Sheath: Electron-beam cross-linked Polyolefin Copolymer TUV 2PfG/1169
Nominal Voltage : AC 600/1000V DC 1000/1800V
Characteristic: Heat-resistant flame retardant,UV/ozone/hydrolysis/climate resistance
Sheath Color :Black or as per customer's requeit
Temperature Rating:45°c upto +125°c -40°F upto +257°F
Ambient temperature:25years(TUV) -40°c upto +90°c -40°F upto +194°F
Max.Short circuit temperature:280°c,+536°F
Bending Radius:Fixed installation>4X Occasionally moved>5X

Product Details

Twin Core PV Solar Cable 4mm2 Fire Resistant For Photovotaic Power Station 3

Twin Core PV Solar Cable 4mm2 Fire Resistant For Photovotaic Power Station 4

Construction	Conductor construction.	Conductor	Outer	Resistance Max.	Current Carring Capacity
nxmm2	n/m	mm	mm	Ω/Km	A
1X1.5	30/0.25	1.58	4.90	13.30	30
1x2.5	50/0.25	2.02	5.45	7.98	41
1x4	56/0.3	2.30	6.10	4.75	55
1x6	84/0.3	3.42	7.20	3.39	70
1x10.0	142/0.3	4.56	9.00	1.95	98
1x16.0	228/0.3	5.60	10.20	1.24	132
1x25.0	361/0.3	6.95	12.00	0.795	176
1x35.0	525/0.3	8.74	13.80	0.565	218
1x50.0	720/0.3	9.20	14.80	0.393	280
1x70.0	988/0.3	11.00	16.90	0.277	350
1x95.0	1349/0.3	12.50	18.70	0.21	410
1x120.0	1691/0.3	14.20	20.70	0.164	480
