Name: DC 1000V 4mm 20 Feet PV1F Solar Cable IEC60502 Standard
Brand: SHENZHEN HODAS TECHNOLOGY COMPANY
SKU: PV1500
Availability: InStock

Home > products > PV Solar Cable >

DC 1000V 4mm 20 Feet PV1F Solar Cable IEC60502 Standard

4mm Solar PV Cable

4mm DC Solar Cable

PV1F Solar Cable

Place of Origin:

CHINA

Brand Name:

Hochiry

Certification:

TUV

Model Number:

PV1500

Request A Quote

DC 1000V 4mm 20 Feet PV1F Solar Cable IEC60502 Standard

Product Details

Product Name:

Pv1f Solar Cable

Conductor Material:

Tinned Copper Strands

Jacket:

XLPO/XLPE/PVC/PE

Conductor:

Tinned Copper Conductor

Standard:

IEC60502

Core:

Multi-core

Certification:

TUV&UL

Flame Test According To:

DIN EN 50265-2-1 UL 1571(VW-1)

Application:

Solar Power System

Rated Voltage:

AC 600/1000V DC 1000/1800V

Payment & Shipping Terms

Minimum Order Quantity

100PCS

Packaging Details

1. 250meters in a roll 2. 2 rolls in a carton 3. Carton dimension:42cm*42cm*21cm 4. Net weight:35kg 5.Gross weight:36kg

Delivery Time

3-5 days

Payment Terms

T/T, Western Union, MoneyGram

Supply Ability

50000 Pieces per Week

IP68 IEC60502 PV Solar Cable 4mm2 6mm2 Male Female Solar Panel Connector

Get Best Price

DC PV Solar Cable 6mm2 1000V Tin Copper Electrical Multi Core

Get Best Price

DC 1000V 4mm 20 Feet PV1F Solar Cable IEC60502 Standard

Get Best Price

Twin Core PV Solar Cable 4mm2 Fire Resistant For Photovotaic Power Station

Get Best Price

86-180-25320086

info@szhodas.com

86-0755-5320086

Contact Now

Product Description

Solar Extension Cable Solar Panel Connector 20 Feet Pv1f Solar Cable

Pv1f Solar Cable Description:

Protecting against short circuits and ground leakages. Suitable for use inside and connected to insulated equipment.
High current carrying capacity.
Resistance against UV, water, ozone, fluids, oil, salt and general weathering.
Hard plastic connectors at each end. Suitable for using in solar panels, DC circuits, inverter wiring.
Engineered for long life and outdoor applications. Good abrasion resistance,excellent softness and stripping performance.

Features :

1. For outdoor use and it is moisture, UV and corrosion resistant.
2. Male and Female Hard plastic connector at the end.

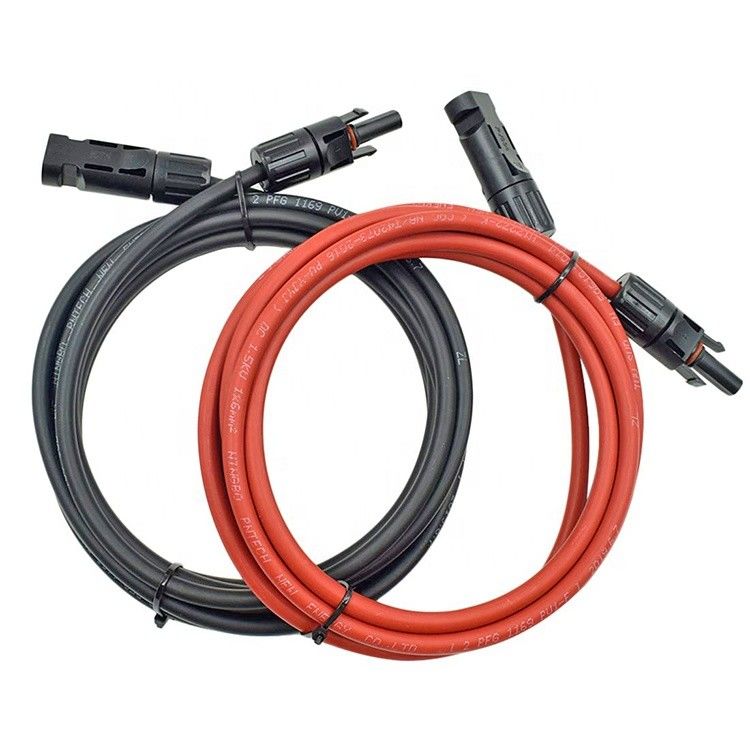

3. Black + Red Solar Panel Extension Cable Wire.
4. Extends and locks built-in cables.
5. Voltage: DC 1000V & AC 1800V.
6. Application: used for solar power board, solar energy power station.
7. Range of cross section: 2.5mm2~10mm2.

Technical Characteristics:

Connector system	4mm
Rated Voltage	1000V
Rated current	1.5mm2:17A
	2.5mm2:22.5A
	4mm2~6mm2:30A
Temperature range	-40℃~90℃
Waterproof class	Insertion:IP68;
Waterproof class	Non-insertion:IP2X
Contact resistance	≤0.35mΩ
Safety class	DCⅡ
Connected system	multipoint connection
Wiring	crimping
Conductor	Copper tin plating
Insulation material	PPO
Self-locking system	Embedded
Flame class	U.L/94-V0

Product Picture

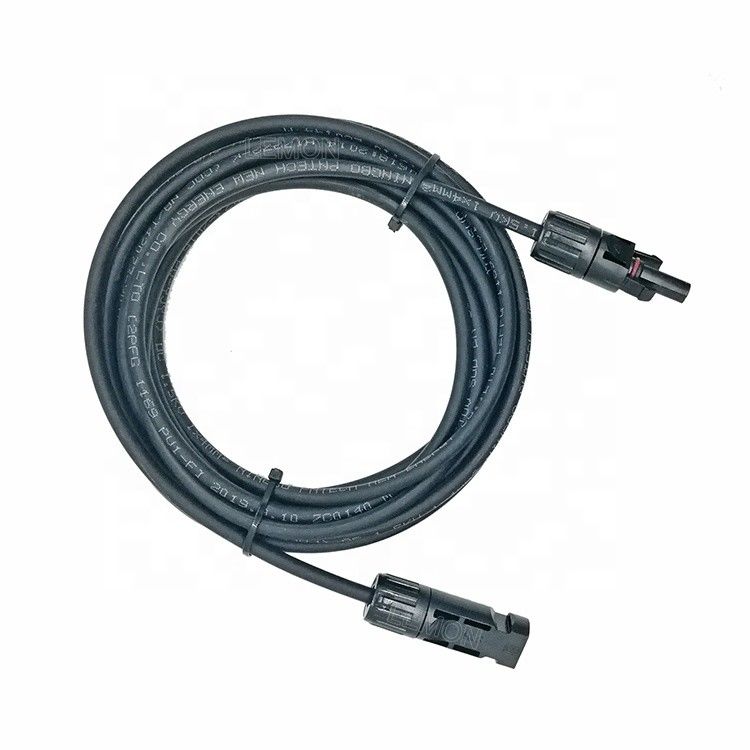

Solar Extension Cable Solar Panel connector 20 Feet pv1f solar cable

DC 1000V 4mm 20 Feet PV1F Solar Cable IEC60502 Standard 7

Product packaging

DC 1000V 4mm 20 Feet PV1F Solar Cable IEC60502 Standard 8
