Place of Origin:
CHINA
Brand Name:
Hochiry
Certification:
TUV
Model Number:
PV1500
Contact Us

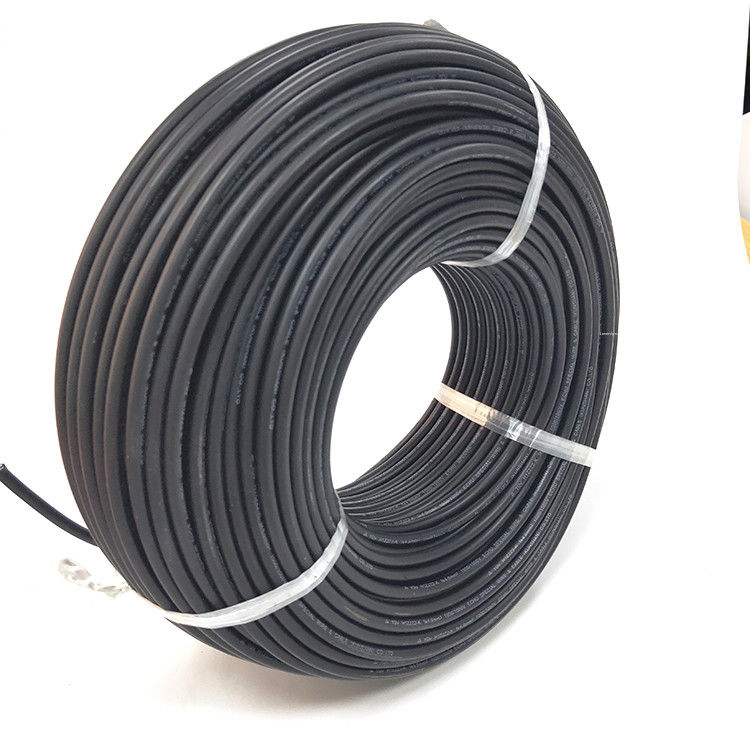

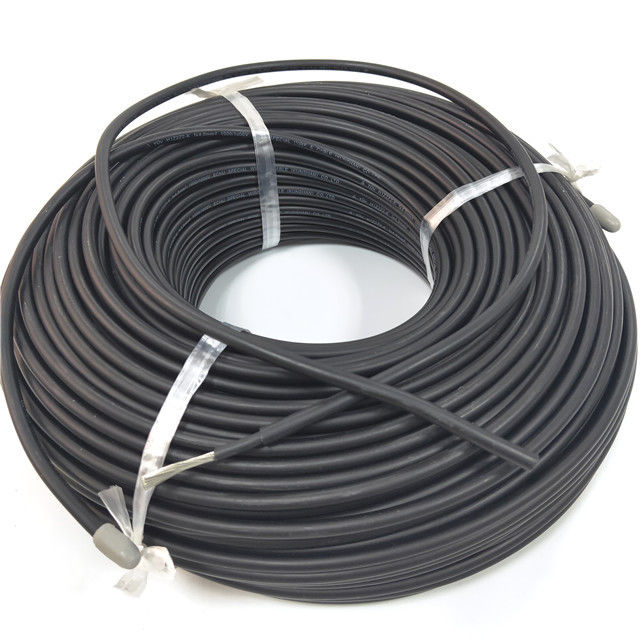

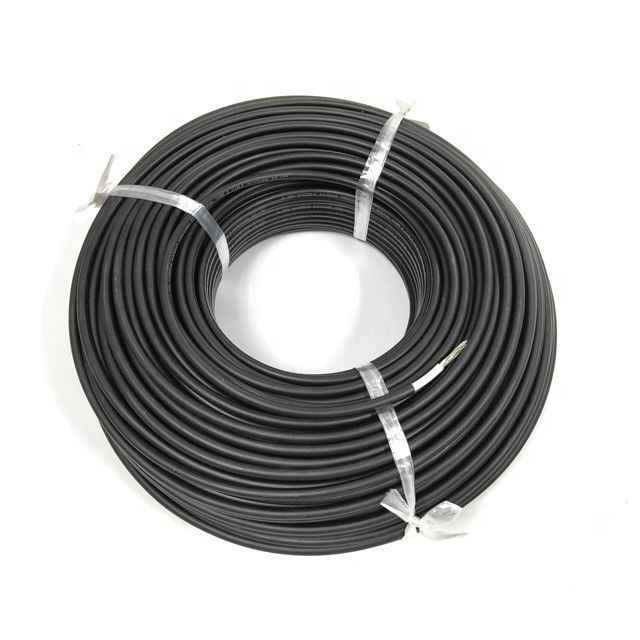

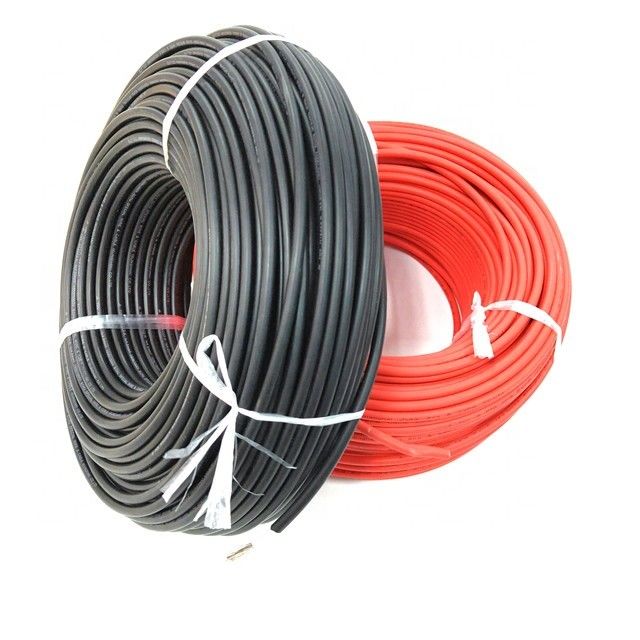

1) Electron beam cross-linked materials do not melt or flow, even at high temperature, high resistance against heat, cold,abrasion, UV, ozone and hydrolyses 4mm PV solar cable.
2) These cables provide the means to interconnect between photovoltaic(PV) panels and from panels to the inverter.
3)They operate at DC voltage and provide long life in exposed conditions 4mm solar cable.
|
No. Of cores x Construction
(mm2)
|
Conductor Construction
(n / mm)
|
Conductor No./mm
|
Insul.
Thick. (mm)
|
Current Aarring Capacity (A)
|
|
1x1.5
|
30/0.25
|
1.58
|
4.9
|
30
|
|
1x2.5
|
50/0.256
|
2.06
|
5.45
|
41
|
|
1x4.0
|
56/0.3
|
2.58
|
6.15
|
55
|
|
1x6
|
84/0.3
|
3.15
|
7.15
|
70
|
|
1x10
|
142/0.3
|
4.0
|
9.05
|
98
|
|
1x16
|
228/0.3
|
5.7
|
10.2
|
132
|
|
1x25
|
361/0.3
|
6.8
|
12.0
|
176
|
|
1x35
|
494/0.3
|
8.8
|
13.8
|
218
|
|
1x50
|
418/0.39
|
10.0
|
16.0
|
280
|
|
1x70
|
589/0.39
|
11.8
|
18.4
|
350
|
|
1x95
|
798/0.39
|
13.8
|
21.3
|
410
|
4mm Solar Cable Advantages:
4mm Solar Cable Technical Data:
| Conductor: 99.99% copper, tinned | UV resistance: EN60811-501 |
| Insulation material: XLPE(XLPO) | High voltage and High current |
| Double walls insulation | Temperature range: -40°C ~ +85°C |
| Halogen-free material: EN50525-1 | Color: Black |
| Flame test according to: DIN EN 50265-2-1 UL 1571(VW-1) | Smallest permissible bending radius: 5 x D |
| Flame test: EN60332-1-2 | Smoke density: EN61034-2 |
| Ozone resistance: EN50396 | Oil resistance: EN60811 |
