Place of Origin:
CHINA
Brand Name:
Hochiry
Certification:
TUV
Model Number:

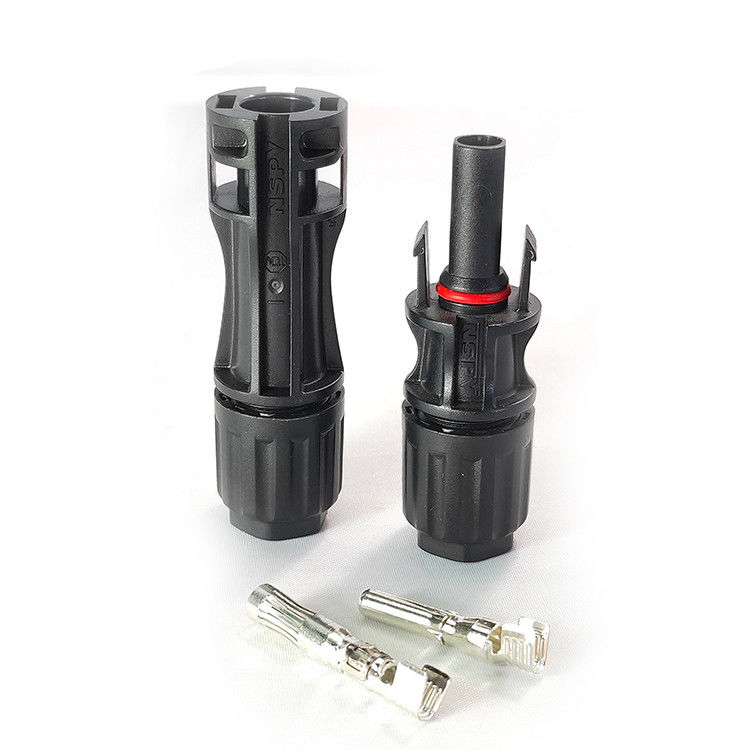

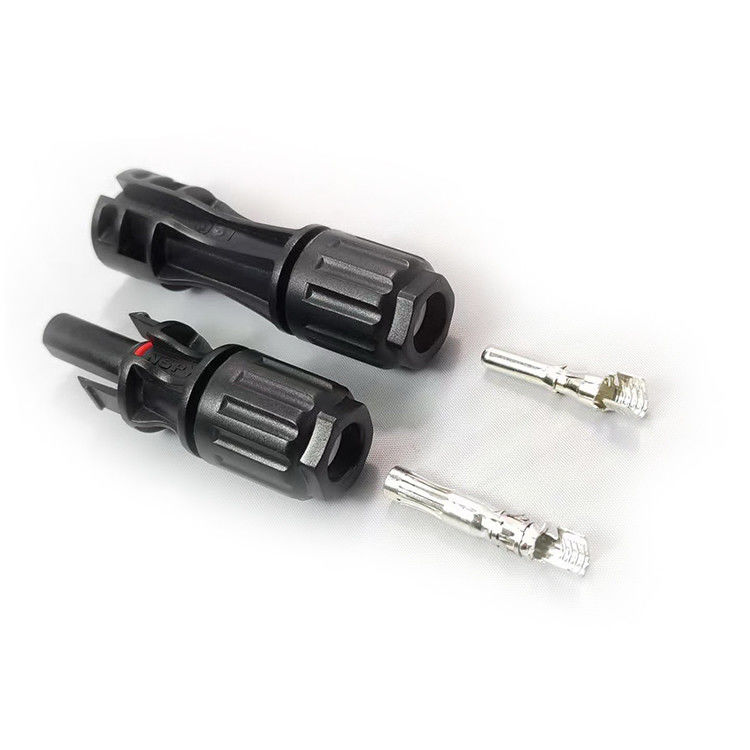

MC4 Female
Contact Us
| Product Specifications | ||||||||
| Insulation material | PPE | Safety degree | II | |||||
| Rated Impulse voltage | 12KV | Flame class | UL94-V0 | |||||
| Rated voltage | 1500VDC(TUV) | Installation type | Outdoor,UV resistant(F1) | |||||
| Test voltage | 8kV(50Hz,1min) | Ambient temperature range | -40℃…+90℃(IEC) | |||||
| contact resistance | < 5 mΩ | Suitable cable cross sections | 2.5~6mm²/14~10AWG | |||||
| Contact material | Copper,Tin plated | Connecting system | Crimp connection | |||||
| Degree of protection | IP68 | Nut cap locking force | 1.0-1.2Nm | |||||
| Overvoltage category/Pollution degree | CATIII/2 | Upper limiting temperature | 110℃(IEC) | |||||
| Regulatory approval | TUV/CE(IEC62852:2014) | Rated Impulse voltage | 16kV | |||||
| 4.0 Cable Female Connector | 4.0 Cable Male Connector | |||||||
| Part No. | a | Cable Size | Amps | Part No. | a | Cable Size | Amps | |
| 4CP25 | 4.2 | 1.5/2.5mm²/16/14AWG | 35 | 4CN25 | 4.2 | 2.5mm²&14AWG | 35 | |
| 4CP40 | 5.8 | 4.0/6.0mm²&10/12AWG | 35 | 4CN40 | 5.8 | 4.0mm²&12AWG | 35 | |
| 4CP60 | 5.8 | 4.0/6.0mm²&10/12AWG | 35 | 4CN60 | 5.8 | 6.0mm²&10AWG | 35 | |
| 4CP100 | Φ4.5 | 10.0mm²& 6AWG | 60 | 4CN100 | Φ4.5 | 10.0mm²&6AWG | 60 | |
1.What’s the application of photovoltaic connectors?
Photovoltaic connectors are used to connect solar photovoltaic power generation systems.
2.Which models do photovoltaic connectors include?
Line to line use cable PV connector (PV004), Multi ways input to one way output. Confluence PV connector (PV004-2T1/PV004-3T1/PV004-4T1 and PV004-T2/T3/T4/T5/T6).
3.How to select high quality photovoltaic connectors?
The connector shall have TUV or CE certification, and the conductor of the connector shall be plated with nickel-clad copper or silver-plated copper. The connector housing material shall be PC or high quality PPO material.
4.How long is the service life and quality assurance time of connector products?
Connector products can be used for at least 25 years the same as solar cell modules. The product quality guaranteed for 10 years.
