Place of Origin:
CHINA
Brand Name:
Hochiry
Certification:
TUV
Model Number:

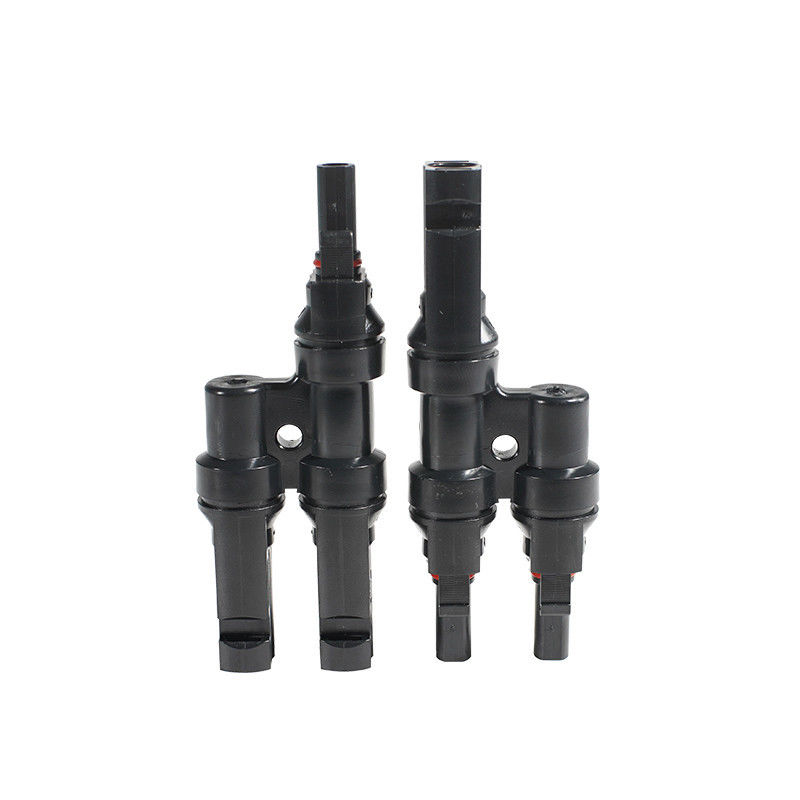

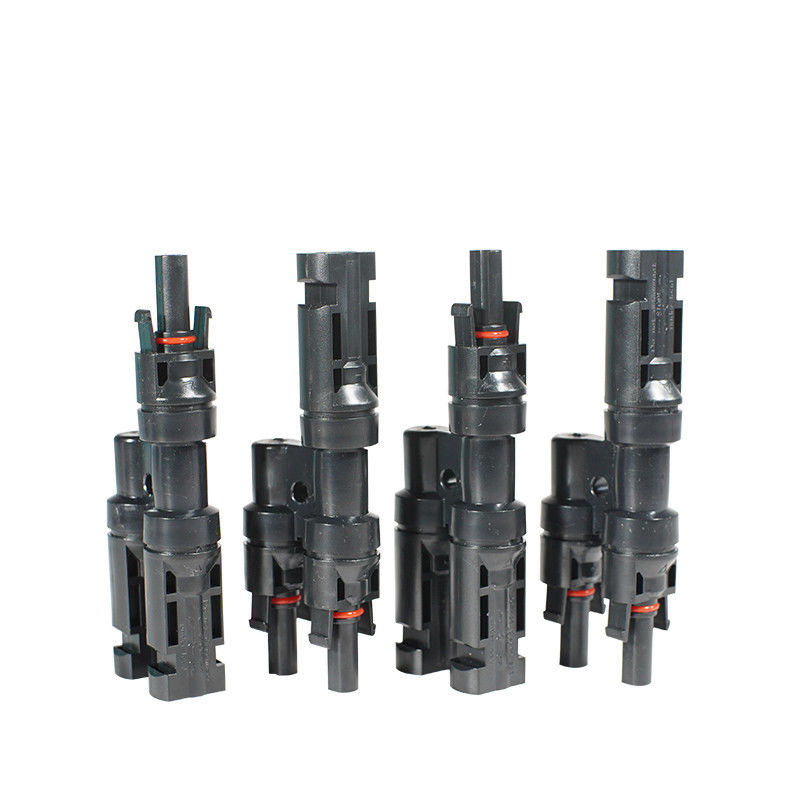

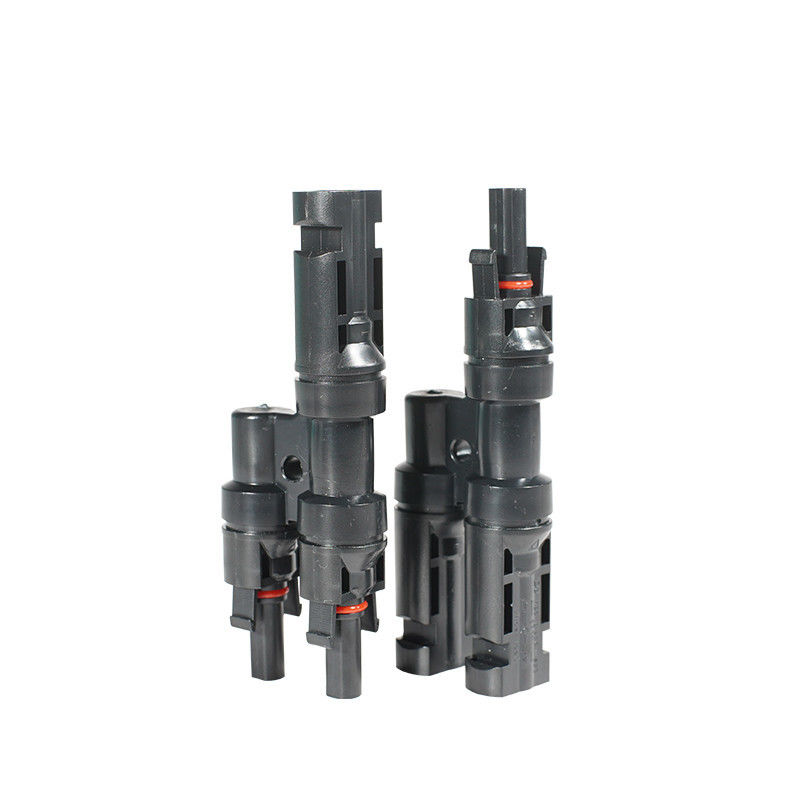

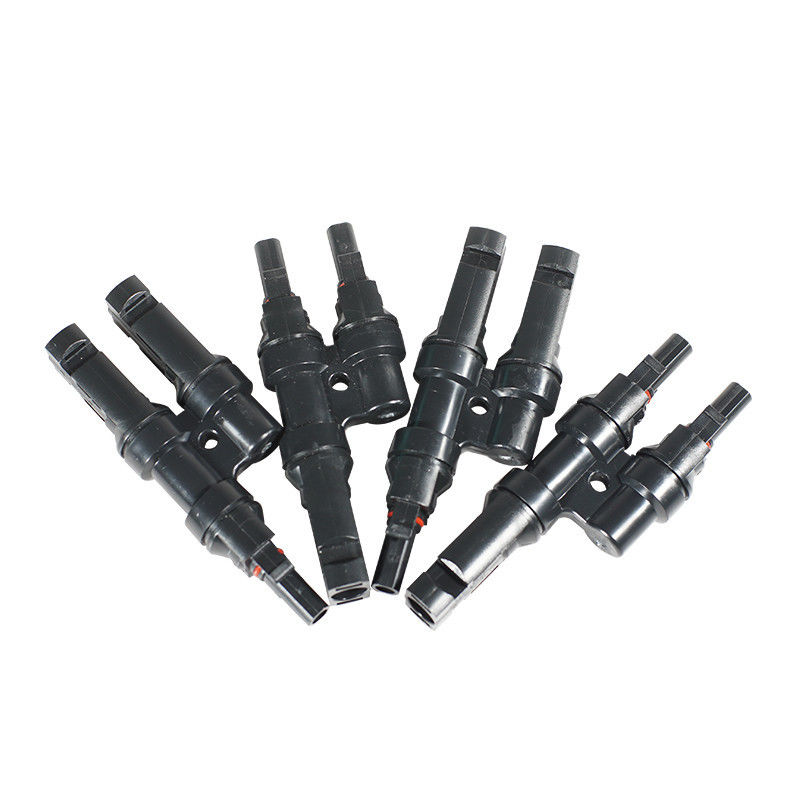

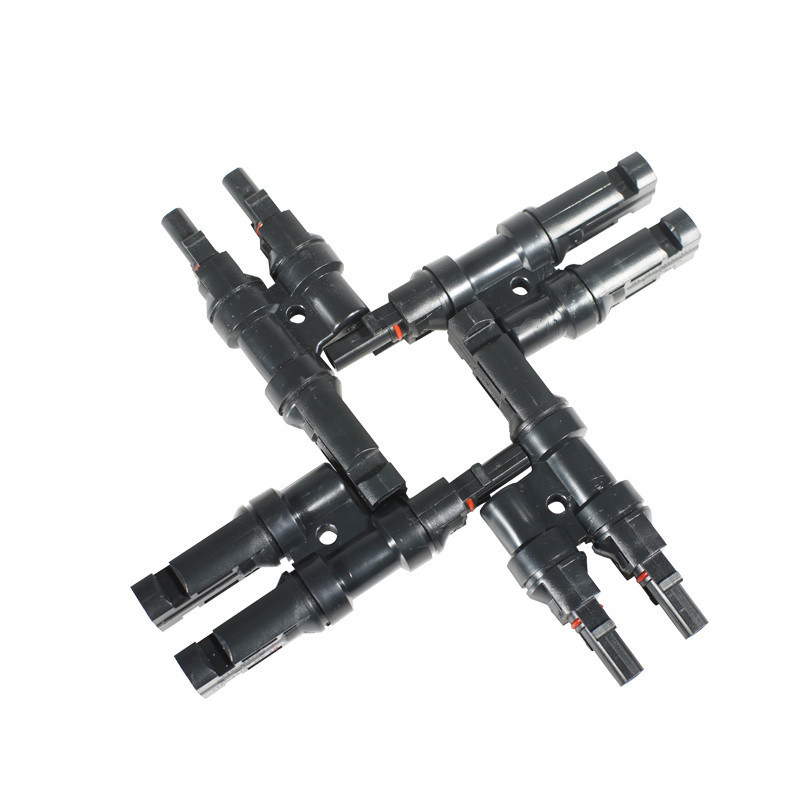

MC4T Branch Connector
Contact Us
|
Type
|
MC4T Solar Photovoltaic Connector
|
|
Rated current
|
30A(2-6mm2)
|
|
Rated vollage
|
1000V DC 1500V DC
|
|
Test vollage
|
6000V(50Hz,1min)
|
|
Insulation material
|
PA/PRO
|
|
Overvollage type/pollution degree
|
CAT Ⅲ/2
|
|
Contact resistant of plug connector
|
1mΩ
|
|
Contact material
|
Copper,Tin-plated
|
|
Degree of protection
|
IP2*/IP65
|
|
Flame class
|
UL94-VO
|
|
Safety class
|
II
|
|
Insertion force
|
≤50N
|
|
withdrawal force
|
≥50N
|
|
Temperature range
|
-40°C~+110C
|
1.What’s the application of photovoltaic connectors?
Photovoltaic connectors are used to connect solar photovoltaic power generation systems.
2.Which models do photovoltaic connectors include?
Line to line use cable PV connector (PV004), Multi ways input to one way output. Confluence PV connector (PV004-2T1/PV004-3T1/PV004-4T1 and PV004-T2/T3/T4/T5/T6).
3.How to select high quality photovoltaic connectors?
The connector shall have TUV or CE certification, and the conductor of the connector shall be plated with nickel-clad copper or silver-plated copper. The connector housing material shall be PC or high quality PPO material.
4.How long is the service life and quality assurance time of connector products?
Connector products can be used for at least 25 years the same as solar cell modules. The product quality guaranteed for 10 years.
