Place of Origin:
CHINA
Brand Name:
Hochiry
Certification:
TUV
Model Number:
MC4Y connector
Contact Us

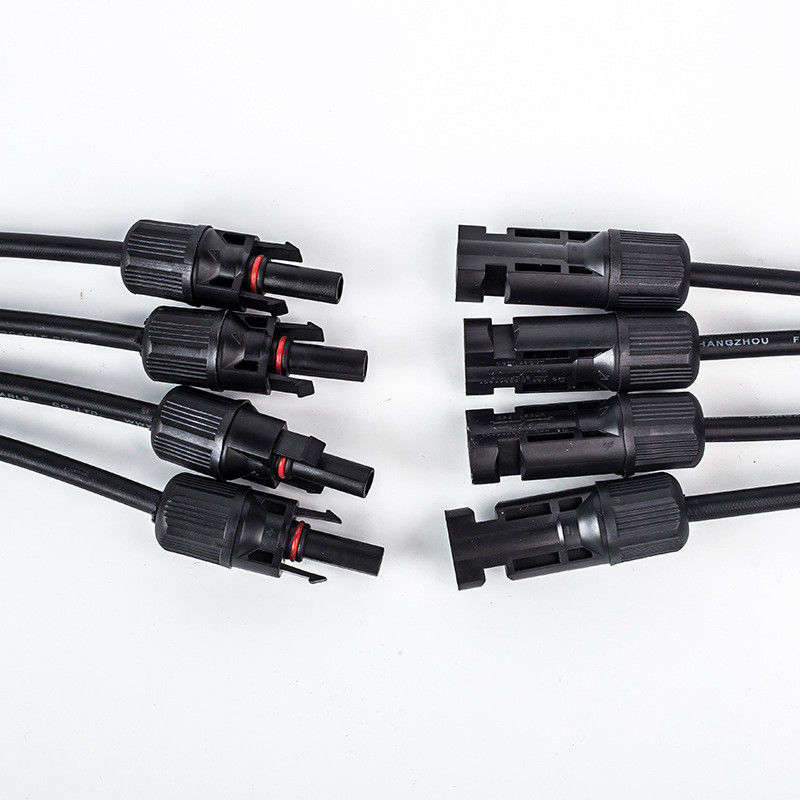

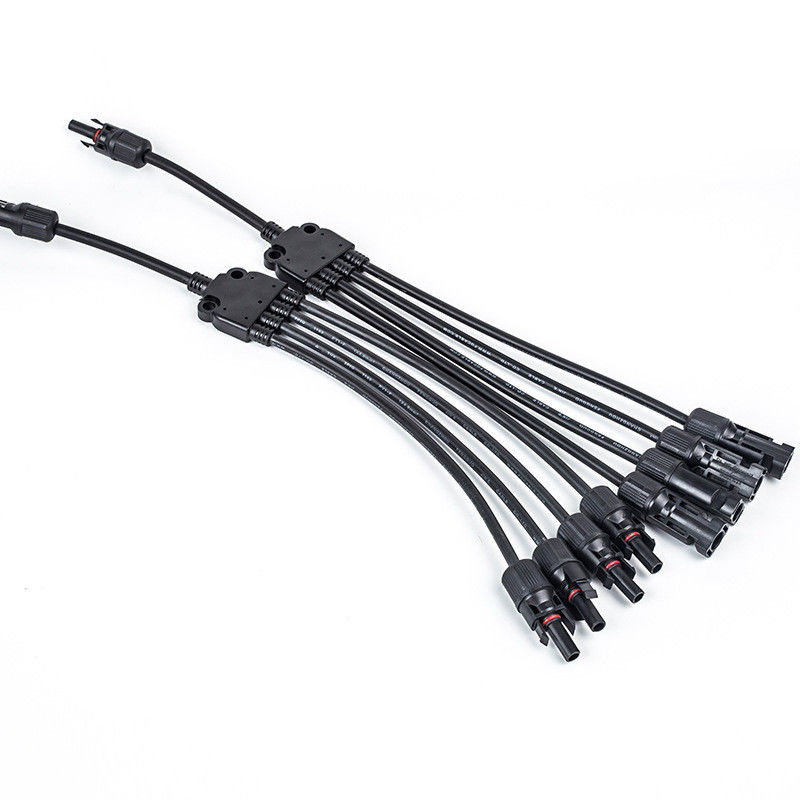

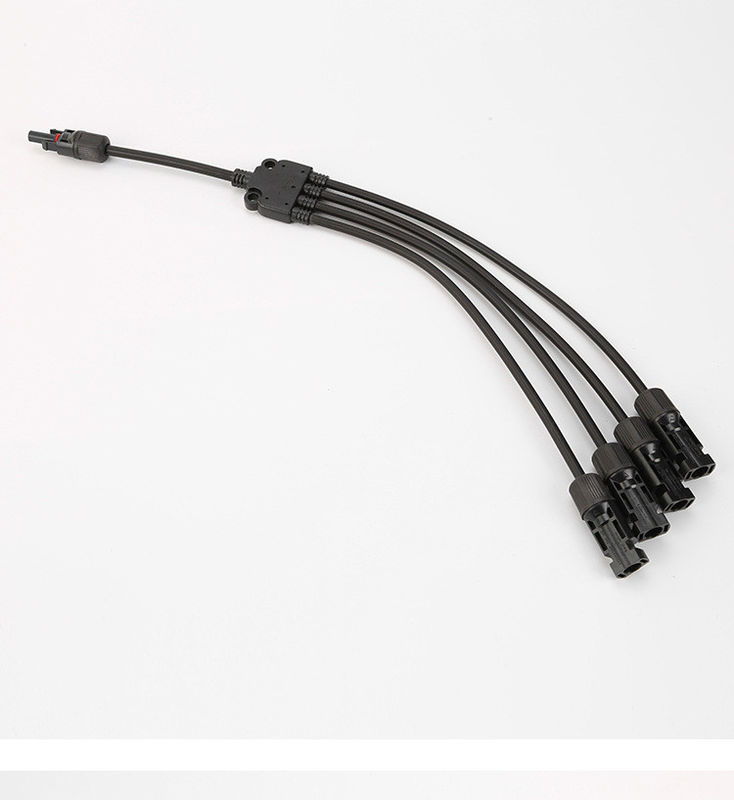

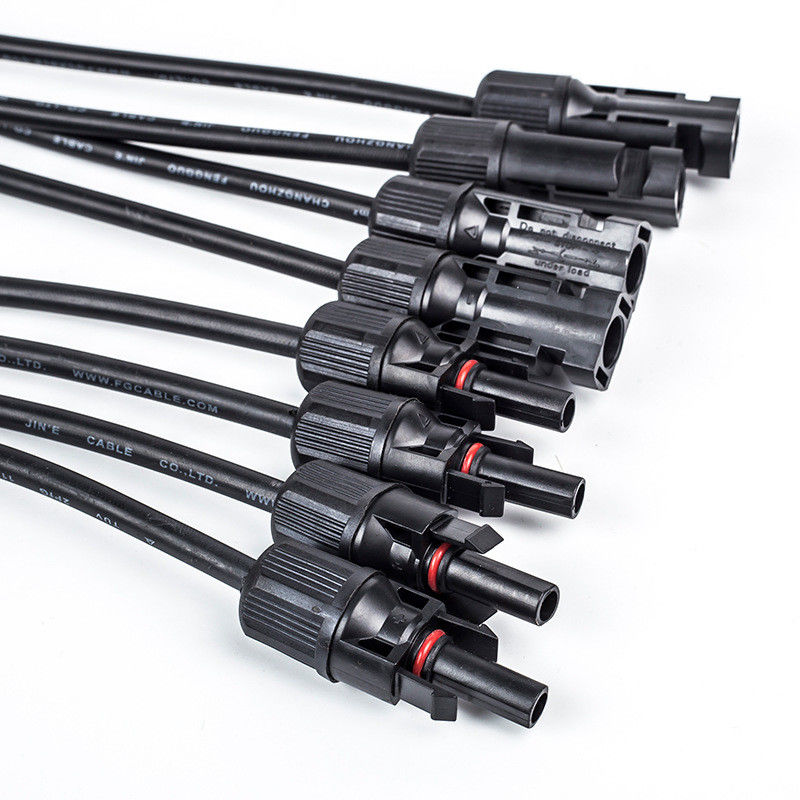

MC4Y Solar Connector Description
a. Application:Applied to solar panels for power generation and related components of the wiring, connection,particularly suitable for outdoor . Resistance to sunlight, anti-aging , Using the low smoke halogen-free flame retardant materials, higher grade, more safety .
b. Construction:MC4 Y Solar PV Connector, with TUV certified, has inner drum-type material metal connectors, the plugs and minus connector are used with the cable, made of PC material, easy to connector with each other. It is important and indispensable components for photoelectric system.
MC4Y Solar Connector Advantages:
a. Simple on-site processing
b. Mating safety provided bykeyed housings
c. Multiple plugging and unplugging cycles
d. Accomodates PV cable with different insulation diameters
e. High current carrying capacity
f. TUV and UL approved
MC4Y Solar Connector Technical Data:
|
Type
|
MC4Y connector
|
|
Rated current
|
30A(2-6mm2)
|
|
Rated vollage
|
1000V DC 1500V DC
|
|
Test vollage
|
6000V(50Hz,1min)
|
|
Insulation material
|
PA/PRO
|
|
Overvollage type/pollution degree
|
CAT Ⅲ/2
|
|
Contact resistant of plug connector
|
1mΩ
|
|
Contact material
|
Copper,Tin-plated
|
|
Degree of protection
|
IP2*/IP65
|
|
Flame class
|
UL94-VO
|
|
Safety class
|
II
|
|
Insertion force
|
≤50N
|
|
withdrawal force
|
≥50N
|
|
Temperature range
|
-40°C~+110C
|
