200W UL94 V0 Flame Class Waterproof Solar Photovoltaic Solar PV Junction Box
Product Description

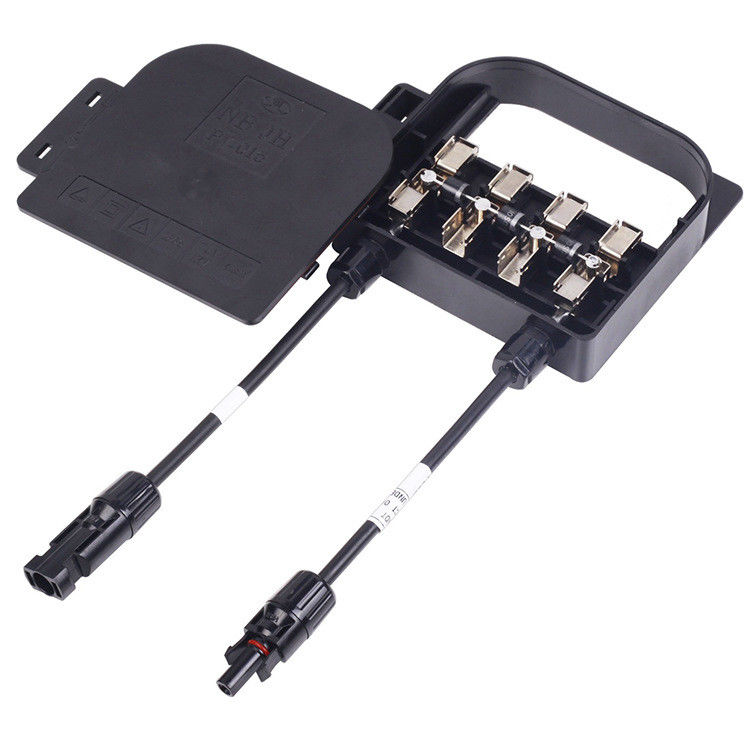

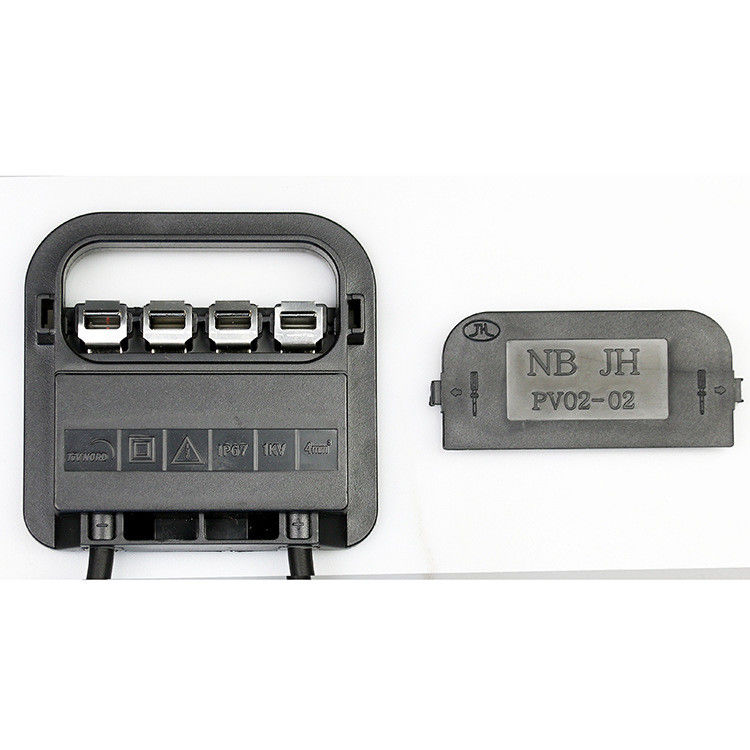

PV-JB08-A junction box is beautiful and small in structure design, easy to install, and can be used for automatic production line assembly. The whole copper conductor has better heat dissipation, and the overall glue filling design has excellent waterproof, dustproof, safe and reliable performance.
| Item No. | PV -JB08-A |
| Rated current | 15A |
| Working voltage | 100V |
| Rated voltage | DC 1500V |
| Operating temperature | -40~+85℃ |
| Degree of protection | IP67 |
| Flame class | UL94-V0 |
| Pollution degree | class A |
| Connecting capacity | 1x4mm2 12AWG |
| Waterproof structure | glue pouring |
| Connection method | welding |
| Material and specification | |||
| Number | parts name | type | QTY |
| ① | Lid | PPE+PS 9406P(f1) | 1 |
| ② | Diode | 30PV045 | 3 |
| ③ | Support | H62, copper | 1 |
| ④ | Box | PPE+PS 9406P(f1) | 1 |
| ⑤ | Floor | PA66, FR7025V0F(+) | 1 |
| ⑥ | Pressing block | PPE+PS 9406P(f1) | 2 |
| ⑦ | Cable | 1x4,0mm2; 1500VDC | 2 |
| ⑧ | Connector | PV-TT02 | 1 |
| Number of diodes | |||
| Diod model | Rated current | Rated voltage | Number |
| 30PV045 | 30A | 45V | 3 |
