Name: 1000V DC Solar PV Module Junction Box IP67 UL944-V0 Flame Class
Brand: Hochiry
SKU: GF20X
Price: 3.5 USD
Availability: InStock
Rating: 4.7 (171 reviews)

Home > products > Solar PV Junction Box >

1000V DC Solar PV Module Junction Box IP67 UL944-V0 Flame Class

Solar Module Junction Box

1000V PV Module Junction Box

IP67 Solar Panel Connection Box

Place of Origin:

CHINA

Brand Name:

Hochiry

Certification:

TUV

Model Number:

GF20X

Request A Quote

1000V DC Solar PV Module Junction Box IP67 UL944-V0 Flame Class

Product Details

Product Name:

PV Solar Junction Box

Power:

300W

Rated Voltage:

1000V DC

Waterproof Protection:

IP67

Rated Currrent:

25A

Flame Class:

UL944-V0

Safety Class:

Class I I

Payment & Shipping Terms

Minimum Order Quantity

100Pcs

Price

3.5USD/PCS

Packaging Details

Standard carton(500sets/ctn), 21g/set N.W:10.8KG G.W:11.3KG Size: 40*26*31cm

Delivery Time

3-5 days

Payment Terms

T/T, Western Union, MoneyGram

Supply Ability

50000 Pieces per Week

TUV 1500V Solar PV Junction Box 200W 25A UL94 V0 Flame Class IP67

Get Best Price

GF20X Solar PV Junction Box 300W Module 4 Busbar 3 Bypass Diode 25A

Get Best Price

1000V DC Solar PV Module Junction Box IP67 UL944-V0 Flame Class

Get Best Price

BIPV Solar PV Junction Box Photovoltaic 4rails 3diods 730580260mm

Get Best Price

86-180-25320086

info@szhodas.com

86-0755-5320086

Contact Now

Product Description

IP67 BIPV Junction Box for Building Integrated Photovoltaic 4rails3diods 4mm2 Cable connectors Solar Panel Junction Box

Main View

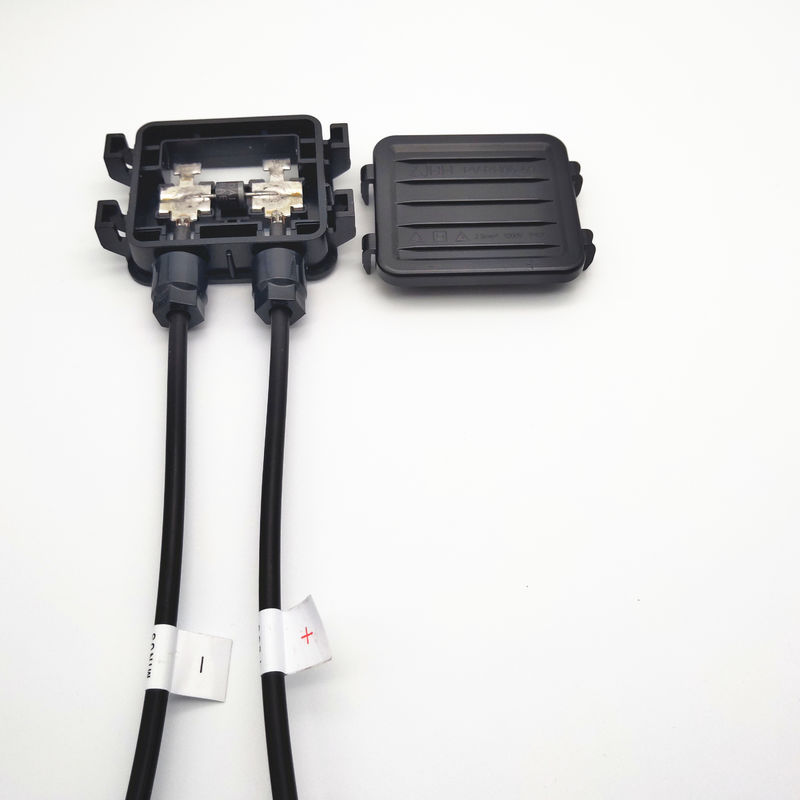

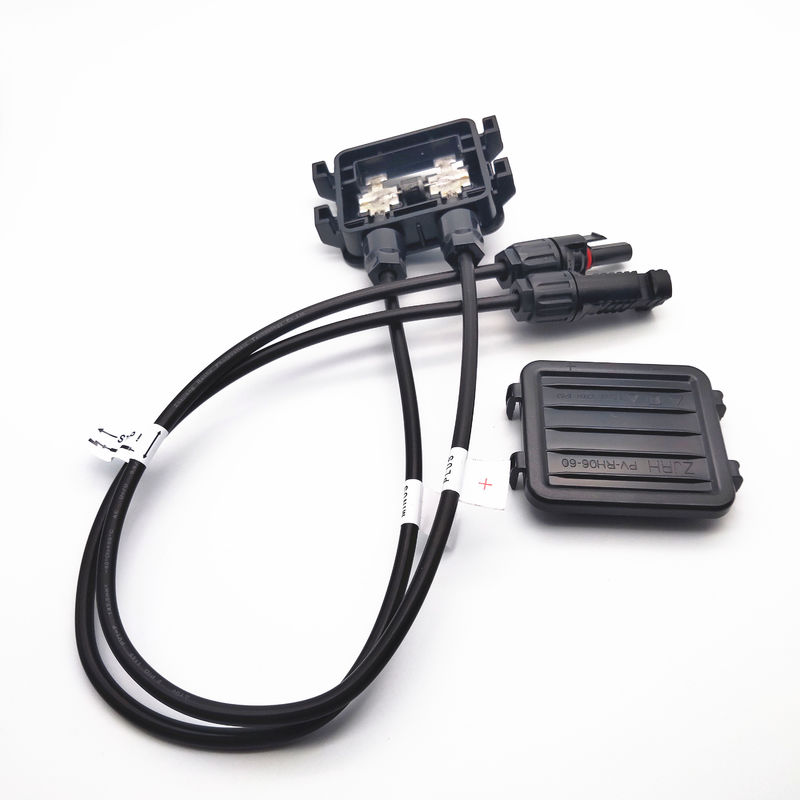

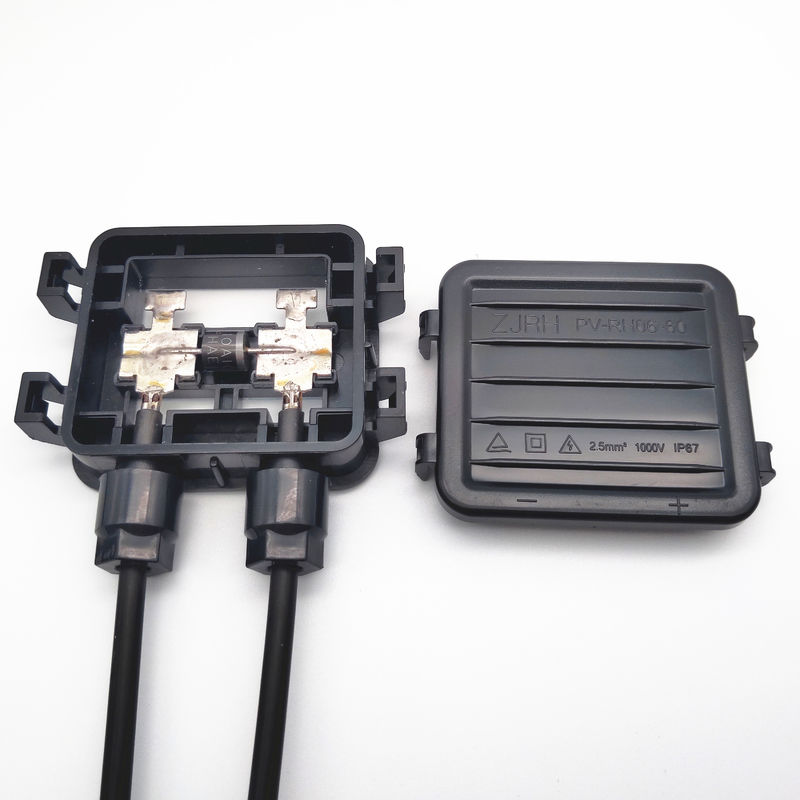

Solar Panel Junction Box Is Used For Solar PV Panel Connection, It has Diode, Cable, Junction Box Body, Connector. This J-Box Is 1 Diode, Suitable For 50W-100W Solar Module

Features:

1. Certification, TUV, CE, RoHS

2. 25 Years Warranty

3. Back Body Stick To Panel Directly, Very Convenient To Install

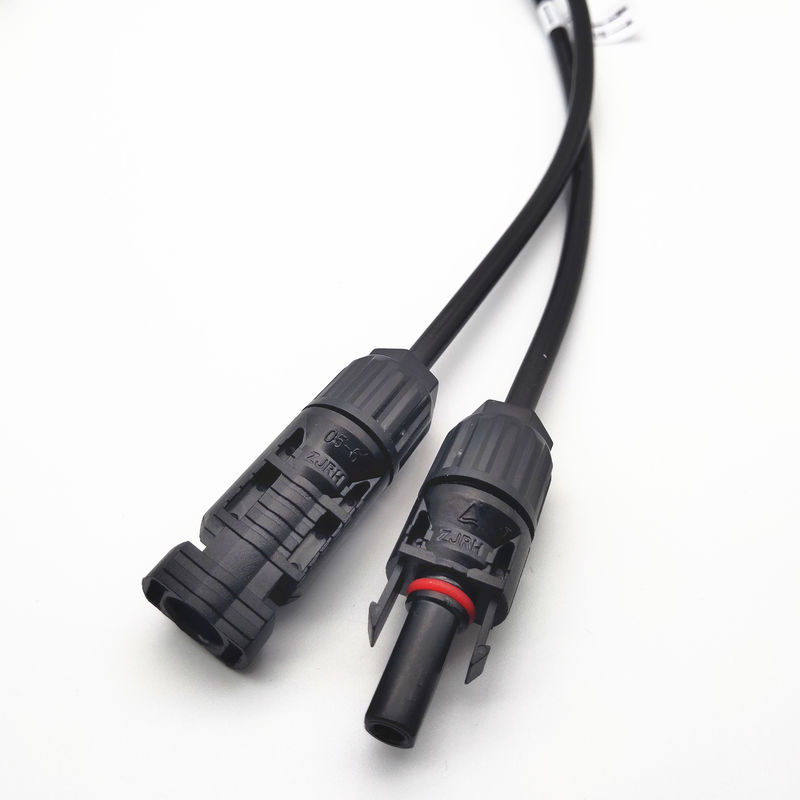

4. Already Fit With Solar Connector and Wires Connection

Technical specifications:

Model Number	GF20X
Certification Number	TUV: R50348429
Rated Voltage	TUV 1500V ,UL 1000V, CSA 1500V DC
Temperature Range	-40C to +85C
Safety Class	Class II
Protection Degree	IP67
Wire Size Range	4mm2, 12AWG, 1Meter
Flame Resistance	V-0, 5VA
Waterproof Range	Potting Sealant
Volume Of Silicon Gel	24 ml
Width Of Copper Ribbons	Up to 8mm for soldering
Connection Method	Soldering
Insulation Material	PPE+PS/PA
Contact Material	Copper Alloy
Overall Size	10x8x16cm

Installation Steps

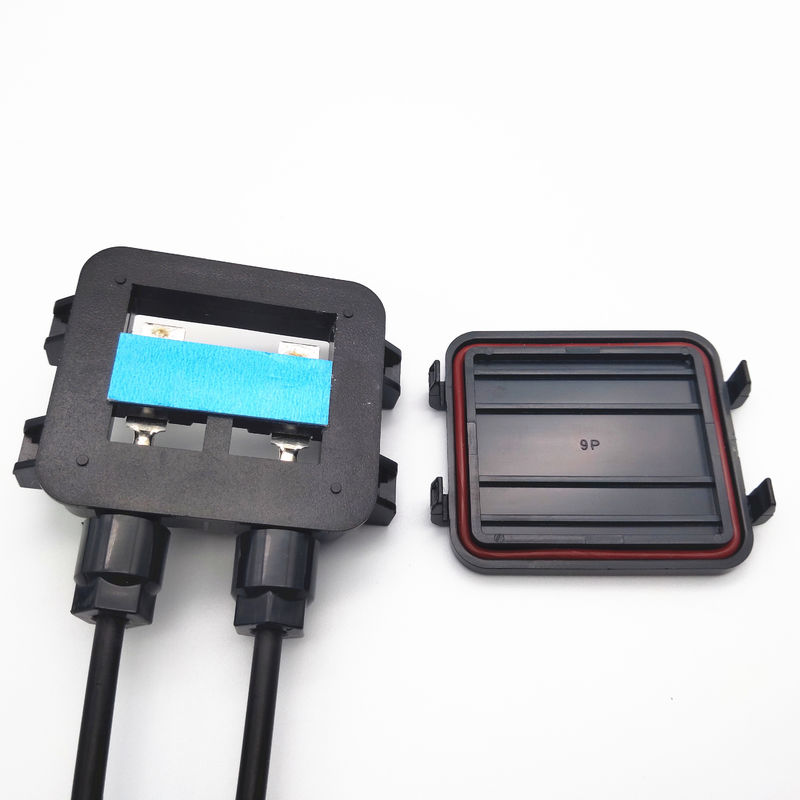

Box adhesive back plate

It's a very simple affixing operation between junction box and back sheet of PVmodule.

Making junction box facing down and injecting glue around the bottom
of the junction box

Solder ribbons of PV module passed
through sealing area.The box body is aligned in the right place of the back sheet.

Bus welding

Do not move the slotted
screwdriver, contacting the ribbon of PV-module with soldering iron tip,
remove the soldering iron until the tin layer melted, and remove the forceps
after tin curing.

Box filling

After the connection and assembly of the junction box and components, the inside part of the junction box must be injected with glue. The copper, diode and metal components inside of the junction box must be sealed with glue.

Install box lid

The box lids are placed above the junction box.

Press box lid down, The box lid in the right place when you hear "flap" sound obviously.
Notes

1, Keeping the box body a horizontal state when cover the lid.
2, Do not tilt the junction box when complete.
3, Required when installing the lid place panels across in the air currents 10 hours till the silicon cures.
