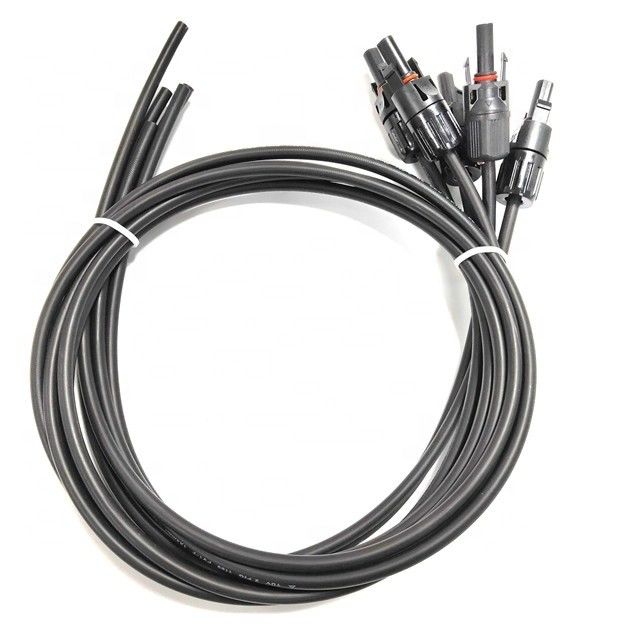

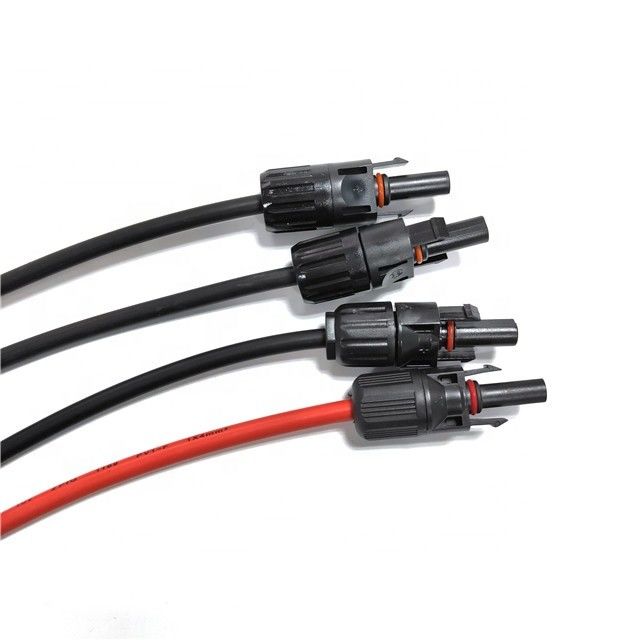

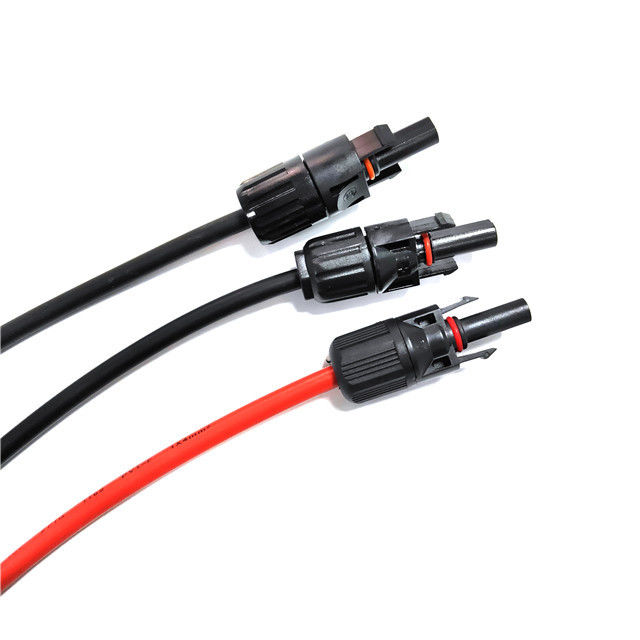

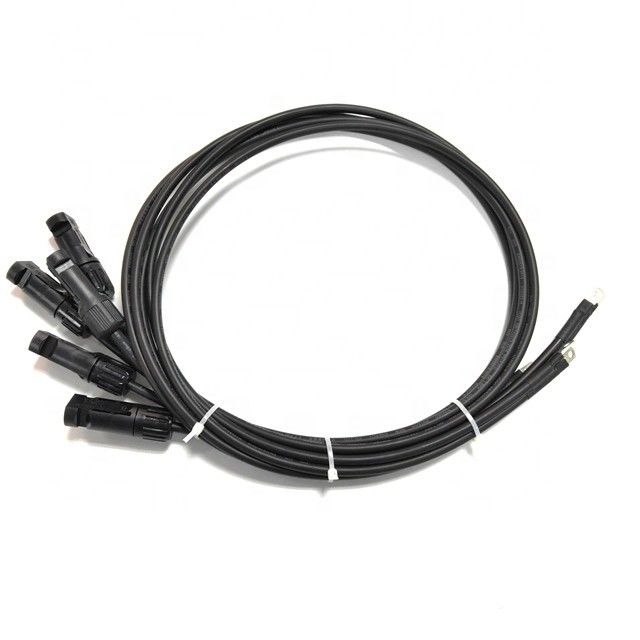

Mc4 Connector Waterproof Solar Photovoltaic Extension Cable 12AWG Solar Adaptor Cable
Product Features:
The 0.6/1KV solar cable is a tinned copper conductor, XLPO insulation, and LSZH sheath, which is designed for connecting photovoltaic system components inside and outside of buildings and equipment with high mechanical requirements and extreme weather conditions. It has the characteristics of UV resistance, wears resistance, and aging resistance, and the service life is more than 25 years.
Description:
Rated Voltage: DC 1500V
Ambient Temperature: -40ºC--90ºC Max. Temperature at Conductor 120ºC:
Conductor: Tin-Plated copper, Class5
Insulation: 125ºC XLPE
Jacket: 125ºC XLPE
Color: Black
Marking: FRCABLE IEC 62930 DC 1.5KV, 1X4.0mm2 Meter marking
|
Product Name |
Mc4 Connector Waterproof Solar Photovoltaic Extension Cable 12AWG Solar Adaptor Cable |
|
Insulation Material |
PPO |
|
Contact Material |
Copper,Tin plated |
|
Connector |
Solar Panel Connector |
|
Wire Color |
Black/Red |
|
Wire Gauge |
2.5mm2, 4mm2, 6mm2, 10mm2 (14/12/10/8AWG) |
|
Rated Current |
30A(2.5mm2),50A(4mm2,6mm2) |
|
Rated Voltage |
1000V/1500V DC |
|
Test Voltage |
8kV(50Hz,1min) |
|
Wire Length |
1m(3ft),2m(6ft),3m(10ft), 6m( 20ft), 10m(30ft), Can be customized |
|
Waterproof protection |
IP68 |
|
Delivery Time |
5-10 working days |
|
Application |
Suitable for Generator, Solar Panel system. |
|
Package |
Bulk Packing, we accept custom packing |
