Place of Origin:
CHINA
Brand Name:
Hochiry
Model Number:
PV1500
Contact Us

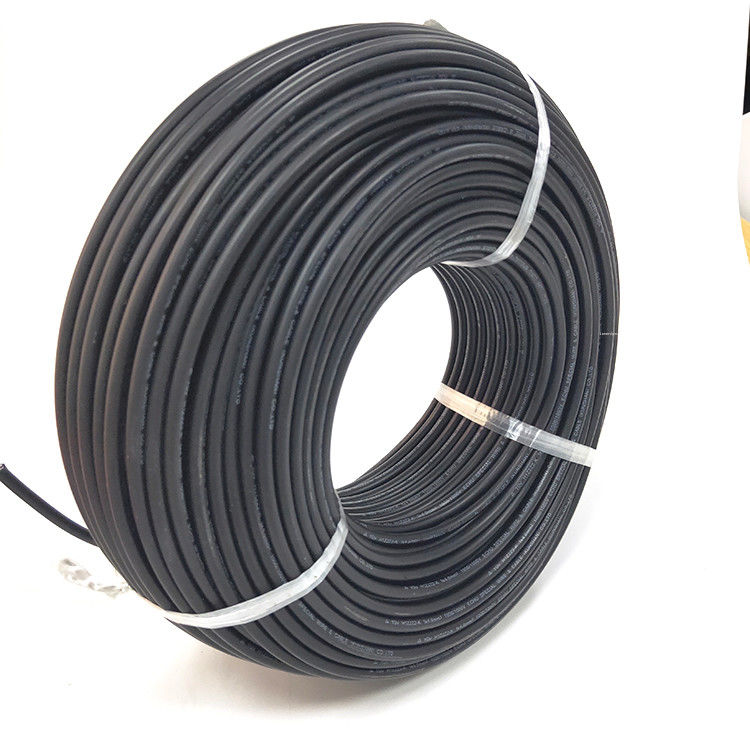

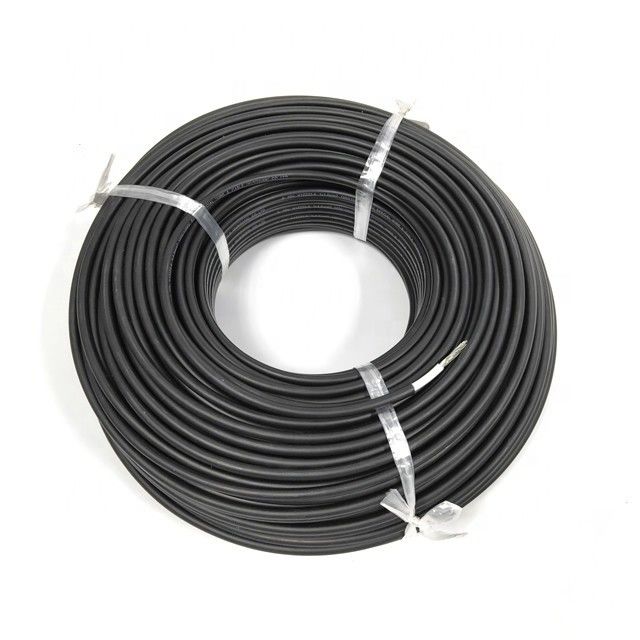

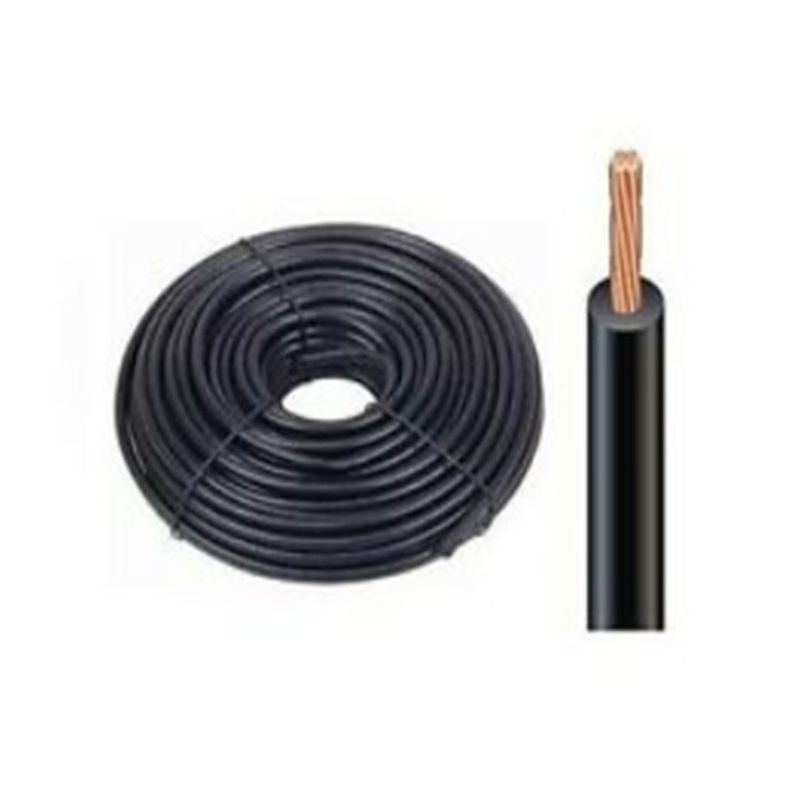

XLPE UV Resistance Fire Resistance Low Voltage TUV PV1 F 4mm Solar Battery Cable Photovoltaic Power Wire PV Solar Cable
Technical Specification:
Nominal Voltage: Uo/U= 0.6/1 KV (AC), 1/1.8 KV (DC)
Test Voltage : No breakdown at 6.5 kA (AC)50HZ 5min &20 ±5 ℃/ 15kA (DC) 5 min 20 ±5℃
Temperature Rating: Working temoerature - 40 ℃-+90℃,Max conductor temperature 125 ℃(continuously 20 h ), Allowable short circuit temperature 200 ℃ in 5 second.
Service Life : Expected life span ≥ 25 years.
Bending Radius : Fixed installation > 4D ,Occasionally moved >5D
Material Properties /Standards
Fire-resistance performance : IEC60332-1
Smoke emission : IEC61034 ,EN 50268-2
Low fire load : DIN 51900
Halogen- free : EN 50267-2-2 PH >4.3 ; EN 50267-2-1,
Bromine Chloride Content ≤ 0.5% ; EN60684-2 , Fluorine Content ≤ 0.1%
Executive Standard : TUV PV1-F 2 PfG
|
No. Of cores x Construction
(mm2)
|
Conductor Construction
(n / mm)
|
Conductor No./mm
|
Insul.
Thick. (mm)
|
Current Aarring Capacity (A)
|
|
1x1.5
|
30/0.25
|
1.58
|
4.9
|
30
|
|
1x2.5
|
50/0.256
|
2.06
|
5.45
|
41
|
|
1x4.0
|
56/0.3
|
2.58
|
6.15
|
55
|
|
1x6
|
84/0.3
|
3.15
|
7.15
|
70
|
|
1x10
|
142/0.3
|
4.0
|
9.05
|
98
|
|
1x16
|
228/0.3
|
5.7
|
10.2
|
132
|
|
1x25
|
361/0.3
|
6.8
|
12.0
|
176
|
|
1x35
|
494/0.3
|
8.8
|
13.8
|
218
|
|
1x50
|
418/0.39
|
10.0
|
16.0
|
280
|
|
1x70
|
589/0.39
|
11.8
|
18.4
|
350
|
|
1x95
|
798/0.39
|
13.8
|
21.3
|
410
|
