Name: ESS Container Battery System For Solar Storage 1 Mwh 2 Mwh 200kwh 500kwh
Brand: Hochiry
SKU: Hochiry
Rating: 4.6 (129 reviews)

Home > products > Lithium Battery Cabinet >

ESS Container Battery System For Solar Storage 1 Mwh 2 Mwh 200kwh 500kwh

Container Battery System 1 Mwh

Solar Storage Container Battery System 200kwh

ESS Lithium Battery Cabinet

Place of Origin:

CHINA

Brand Name:

Hochiry

Certification:

TUV

Request A Quote

ESS Container Battery System For Solar Storage 1 Mwh 2 Mwh 200kwh 500kwh

Product Details

Product Name:

48V 400Ah 20Kwh Solar Battery Bank

Battery Type:

LiFePO4

Cycle Life:

3000cycle/6000cycle

Protection:

Built-in Smart BMS

Capacity:

50Ah/80ah/100Ah/200Ah

Application:

Solar, Wind, UPS Energy Storage

Communication Port:

RS232, RS485, CAN

Payment & Shipping Terms

Minimum Order Quantity

10PCS

Packaging Details

Product size: 23*12*20cm Manner of packing: Color Box Single weight:3kg QTY / Carton:4 unit / Carton Carton N.W.:15.4kg Carton G.W.:16.2kg Carton Size:49.5cm*46cm*21cm

Delivery Time

10-15 work days

Payment Terms

T/T, Western Union, MoneyGram

Supply Ability

10000 Piece per week

Light Weight Lifepo4 Lithium Battery Cabinet Storage With Wheel 48V 400Ah 20KWH

Get Best Price

Lifepo4 Lithium Battery Cabinet Hybrid Inverter Solar Energy Storage

Get Best Price

Off Grid Home Solar System Lithium Battery Cabinet 6500 Cycle Life 48V 400Ah 20Kwh

Get Best Price

48V 400Ah 20Kwh Lithium Battery Cabinet Off Grid Home Solar System

Get Best Price

86-180-25320086

info@szhodas.com

86-0755-5320086

Contact Now

Product Description

ESS Container LiFePO4 Energy Storage System 500kw 1mw 3mw Solar System Container House

Product Description

System Block Diagram

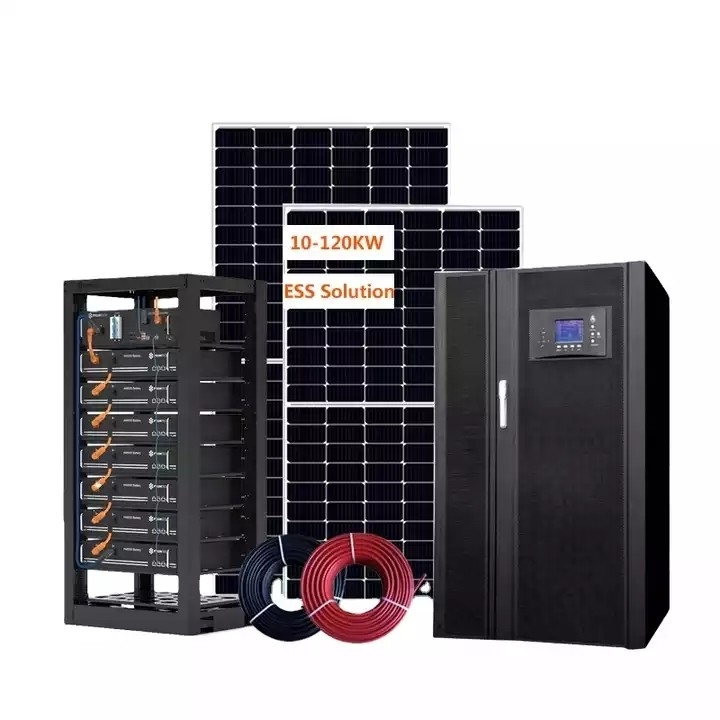

Components Included


Half Cut Solar Panel
Highest conversion efficiency of 21.5%

0~+5W positive power tolerance

PID Protection

Higher performance under low light.

MBB cell technology.

Maximum system voltage:1500V *Junction box:IP68

Frame:Aluminum alloy

Cell amount:72*2pcs

Application level:Class A

12Years product warranty,25 Years power output guarantee.
.

PV Combiner Box
*Lightning protection

*Optional string monitoring function

*IP65 environment compatibility

*Flexible design, 8,16 inputs optional

*RS485 communication interface

*Input fuse for over current protection *PV combiner box is an accessory for multiple PV string connection, it is with smart controller inbuilt for monitoring, along with comprehensive protections including fuse and SPD

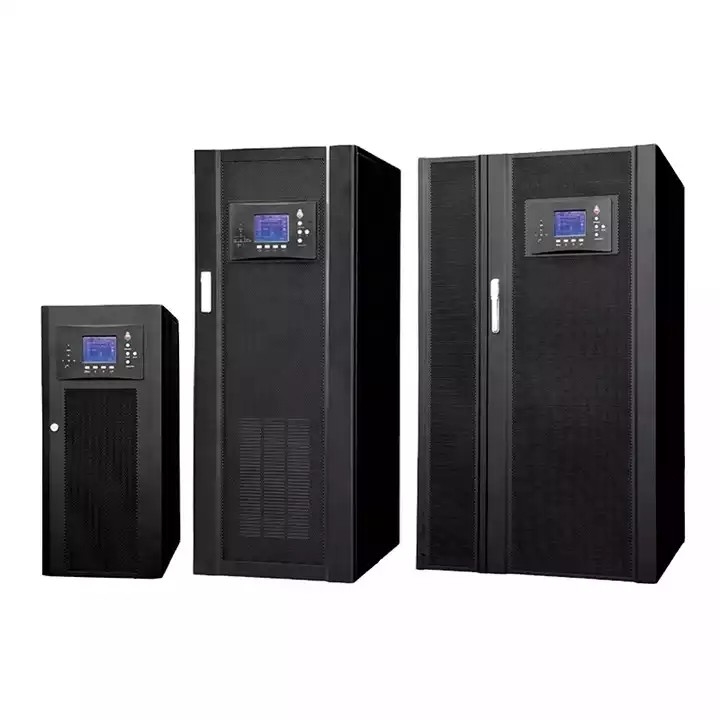

PBD/PCS/Bypass

*PBD250:Solar Charge Controller

*PCS50/100/250/500/630:

Bi-directional battery inverter

*Bypass50/100/250/500:

bypass cabinet is designed to be used together with bidirectional battery inverter and PV inverter to realize seamless transfer between on and off grid mode automatically.

ShineMaster Monitoring
*Up to 32 inverters connection

*Multi-function and high performance *Local webserver for easy configuration *Support external sensor to realize zero-export function.

*Datalogger for overall system monitoring, collect operation data from different units via Modbus RS485 and communicate with the server via internet

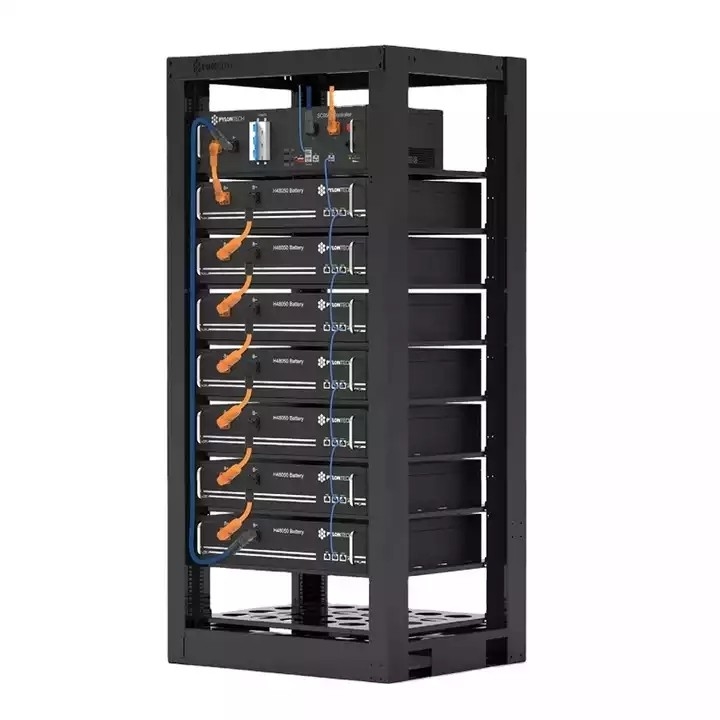

Lithium-ion Battery*Easy installation and maintenance
*LFP high-capacity Li-Ion battery with aluminum shell,over 130wh/kg
*Self-developed 3-level BMS, complex protection, safe and reliable
*Long cycle life, 6000 cycles *Outdoor battery cabinet with IP54 protection level, indoor battery rack with IP20 protection level,inbuild lithium-ion battery and BMS.
*Standard 5Years Warranty.

Solar Accessories
*Black/Red color 4/6/10 mm2 PV cable

*Universal compatible PV connectors

*With CE TUV certificate

*15Years Warranty

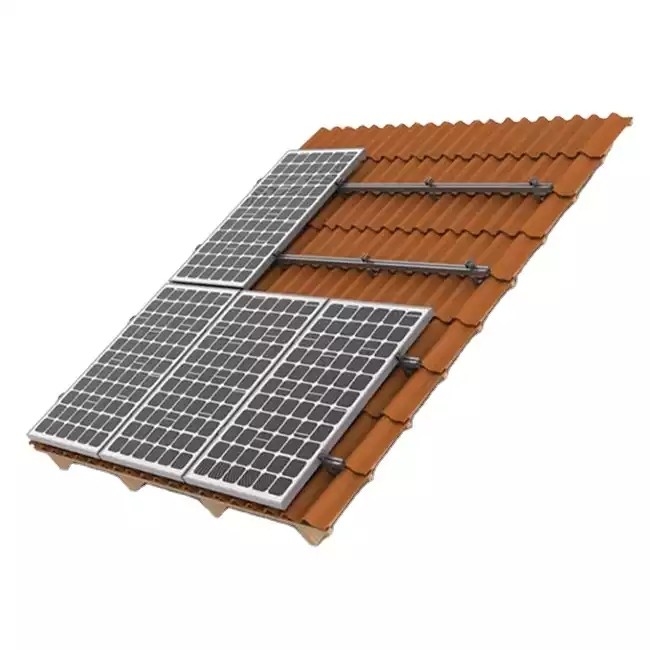

PV Mounting System
*Customized for roof&ground etc. *Adjustable angle from 0~65 degree

*Compatible with all type solar panel

*Mounting Rail & Rail Splice Kit: AI6005 & SUS304 Bolt.

*Mid & End Clamps: 35,40,45,50mm

*L Foot Asphalt Shingle Moount & Hanger Bolt Optional

*Cable Clip & Tie Optional

*Ground Clip & Lugs Optional

*25Years Warranty

Micro-grid 250-5000KW/KWH Complete ESS Container Configuration
System Model	LS250KW/KWH-ESS	LS500KW/KWH-ESS	LS1MW/MWH-ESS
Half Cut 550W Solar Panel	480pieces	960pieces	1920pieces
PV Combiner Box	5pieces 8 input 1output	10pieces 8 input 1output	20pieces 8 input 1output
Solar Charge Controller	1Piece PBD250	2Piece PBD250	4Pieces PBD250
Bi-directional Battery Inverter	1piece PCS 250	1piece PCS 500	2pieces PCS 500
Bypass cabinet	1piece Bypass 250	1piece Bypass 500	1piece Bypass 1000
LFP Battery Bank	250KWH	500KWH	1MWH
PV Cables	4000m	8000m	12000m
MC4 Connector	240pairs	480pairs	960pairs
Mounting System	Customized based on your installation site
Container Size	10/20/40ft

System Model	LS2MW/MWH-ESS	LS3MW/MWH-ESS	LS5MW/MWH-ESS
Half Cut 550W Solar Panel	3840pieces	5760pieces	9600pieces
PV Combiner Box	40pieces 8 input 1output	60pieces 8 input 1output	100pieces 8 input 1output
Solar Charge Controller	8Piece PBD250	12Piece PBD250	20Piece PBD250
Bi-directional Battery Inverter	4pieces PCS 500	6pieces PCS 500	10pieces PCS 500
Bypass cabinet	2pieces Bypass 1000	3pieces Bypass 1000	5pieces Bypass 1000
LFP Battery Bank	2MWH	3MWH	5MWH
PV Cables	24000m	36000m	60000m
MC4 Connector	1920pairs	2880pairs	4800pairs
Mounting System	Customized based on your installation site
Container Size	10/20/40ft
