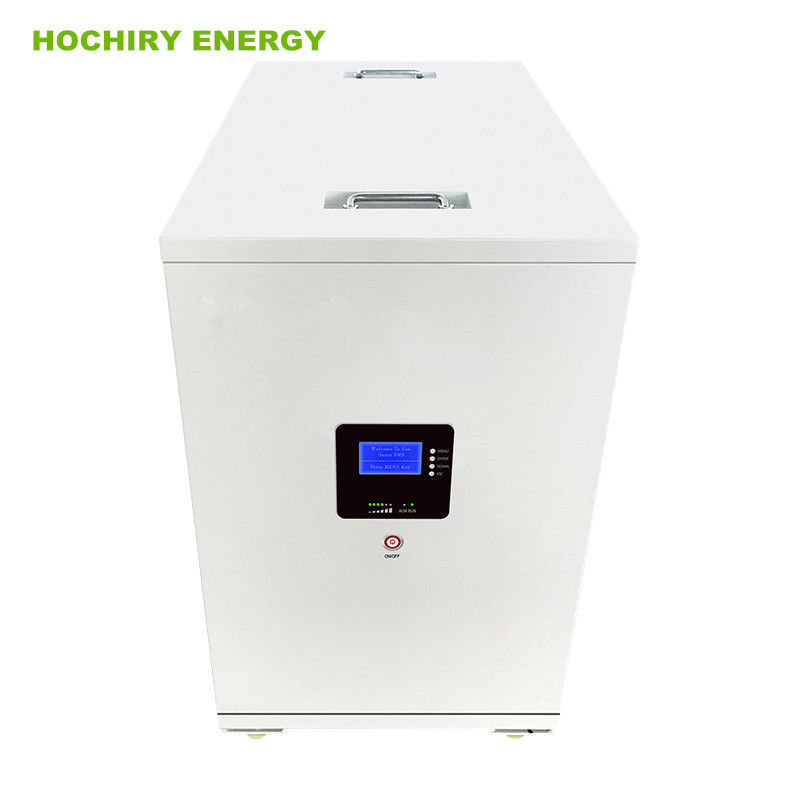

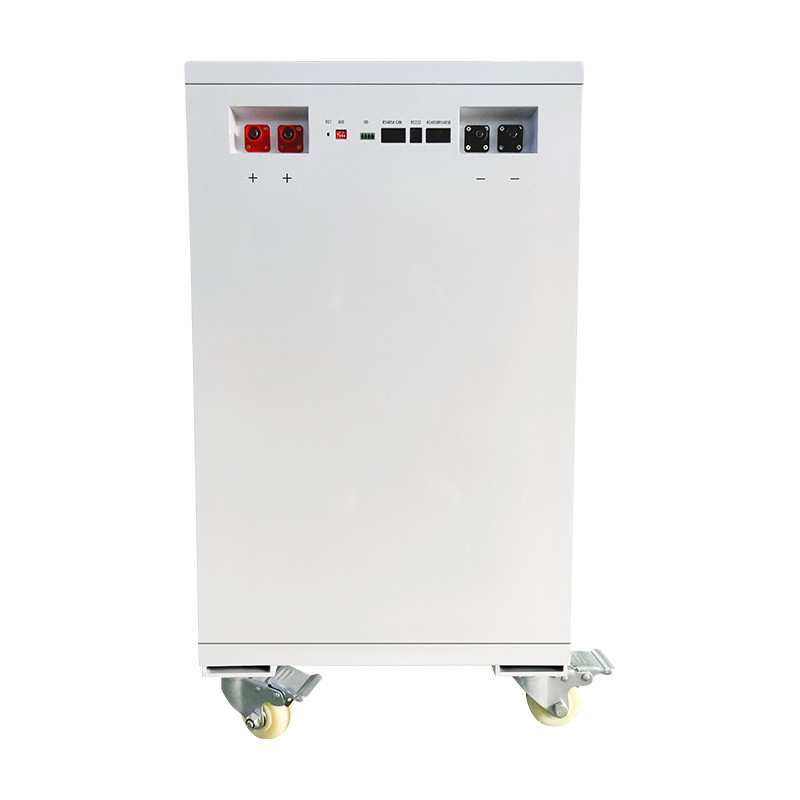

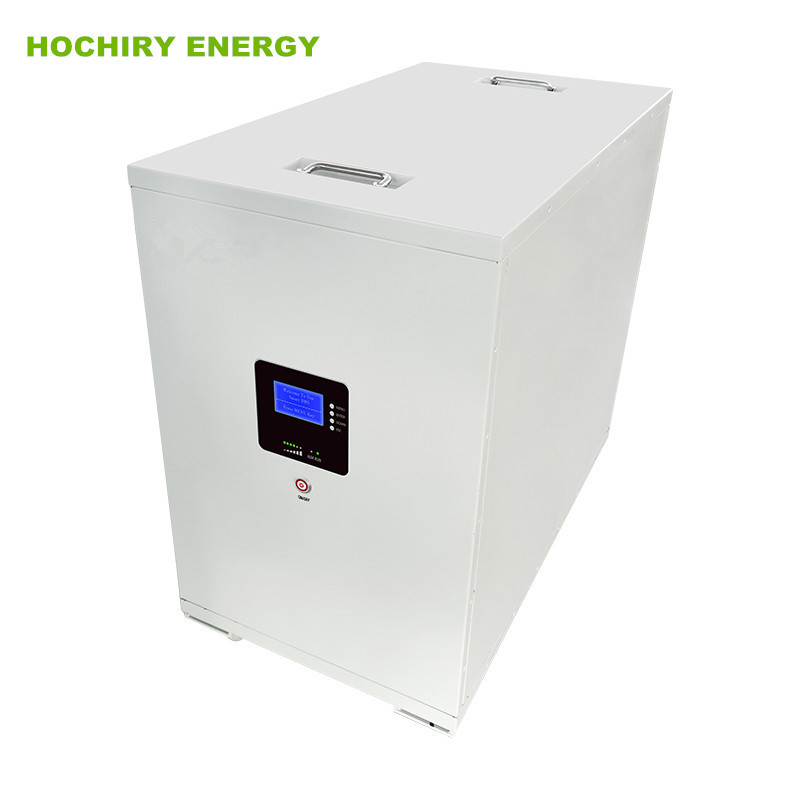

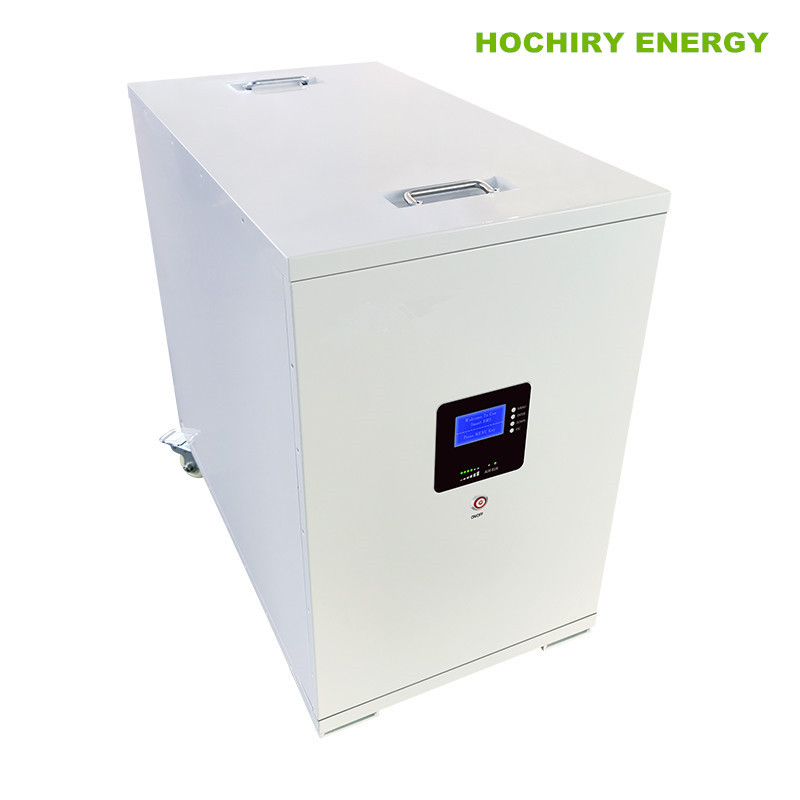

Long Life Cycle LiFePO4 Batteries 5U 48V 200Ah Lithium Battery Pack Module
| Specification | |||
| No. | Item | General Parameter | Remark |
| 1 | Combination method | 16S8P | |
| 2 | Rated Capacity | 400Ah | Standard discharge after Standard charge(package) |
| 3 | Factory Voltage | 51.2V | Mean Operation Voltage |
| 4 | Voltage at end of Discharge | 46V | Mean Operation Voltage |
| 5 | Charging Voltage | 58.4V | |
| 6 | Internal Impedance | ≤40mΩ |
Internal resistance measured at AC 1KH Z after 50% charge The measure must uses the new batteries that within one week after shipment and cycles less than 5 times |
| 7 | Standard charge | Constant Current 100A | Charge time : Approx 4.5h |
| Maximum Charge | 250A | ||
| 8 | Standard discharge | Constant current:100A | |
| 9 | Maximum Continuous Discharge Current |
250A | |
| 10 | Maximum Discharge Current |
40A | |
| 11 | Operation Temperature Range |
Charge: 0~45℃ | 60±25%R.H.Bare Cell |
| Discharge: -20~55℃ | |||
| 12 | Storage Temperature Range |
Less than 12 months : -10~35℃ | 60±25%R.H.at the shipment state |
| Less than 3 months: -10~45℃ | |||
| Less than 7 day : -20~65℃ | |||
| 13 | Dimensions | (L*W*H) 820*460*700mm | Include case |
| 14 | Weight | 250kg | Include case |
Energy Storage
--Solar-Wind Power System / City Grid (On/Off) / Community and Family
Back-up System and UPS
--Telcom Base / CATV system / Computer Server Center / Medical Instrumnt / Military Equipment
Other Applications
--Security and Electronics / Mobile POS, Mining Lihgt / Torch / LED Light / Emergency Light
--RV Motorhome /Golf Carts Battery / Boat Marine Yachts / Electric Skateboard
--LED Backup / Engine Starting Battery,etc.
Passed the below abuse and safety test-short-circuit, dropping, nail penetration, impact, crush, thermal shock, over-charge,over-discharge: no fire, no explosion with stable chemical structure.
◆ Experience--More than 12 years Specialized in lithium battery, Leaders of Lithium Lifepo4 Battery.
◆ Certification--CE,UL,MSDS,Test Report from National Center For Quality Supervision and Inspection of Battery Products approved.
◆ Quality Control-- 37 production process,7 steps quality check to promise stable quality and high reliability for you.
◆ Best Material-- Insist on choosing top quality cell, material and accessories,lithium battery last longer time.
◆ Fresh battery-- All battery is fresh Production.
