Name: 3 Phase 22kw Fast Electric Charging Station EV Car Charger Wallbox
Brand: SHENZHEN HODAS TECHNOLOGY COMPANY
SKU: HDS- AC-E22-7KW
Price: 385 USD
Availability: InStock

Home > products > EV Charging Station >

3 Phase 22kw Fast Electric Charging Station EV Car Charger Wallbox

22kw Electric Car Charger

IP65 3 Phase Car Charging Stations

Fast Electric Vehicle Charging Wallbox

Place of Origin:

CHINA

Brand Name:

Hochiry

Certification:

TUV

Model Number:

HDS- AC-E22-7KW

Request A Quote

3 Phase 22kw Fast Electric Charging Station EV Car Charger Wallbox

Product Details

Products Name:

Fast Electric Car EV Charging Stations

Charging Port::

3 Ports, 2 Ports, 1port, 4 Ports, Type C

Payment Method:

"Plug And Play" Or RFID Card APP

Nput Voltage Range:

230V±15%, Signal-phase

Protection:

IP65

Application:

AC Home Charging

Power Plug Type:

Schuko/Nema/UK Plug / Au Plug/ CEE

Connector Type:

IEC 62196 / SAE J1772

Charging Power:

3.5KW/7KW/11KW/22KW

Payment & Shipping Terms

Minimum Order Quantity

Price

385

Payment Terms

T/T, Western Union, MoneyGram

32A Level 2 Public Commercial EV Charging Station With OCPP 1.6 Wifi 4G

Get Best Price

360KW DC Split Type EV Charging Station IP55 Floor Standing European Standard

Get Best Price

16A Type 2 Portable Electric Car Charger CCS Combo 2 Fast Charger

Get Best Price

IP66 240V 32 Amp Level 2 Charging Station With 6m Cable

Get Best Price

86-180-25320086

info@szhodas.com

86-0755-5320086

Contact Now

Product Description

Ocpp Mennekes Type 2 32a 3 Phase 7kw 22kw Wallbox Fast Electric Charging Station EV Car Charger

【 High-Speed EV Charging Station 】with Connecting to the Distribution Box, Your Electric Car Will Get a 32amps of Charging Speed.20ft Cable (charger body+ Wall plug cable + car plug cable 25ft)

【 Perfect Charging Solution 】Level 2, 240 Volts, High-Power, 32 Amp, 7.7 Kw EV Charging Station. Indoor/Outdoor Installation, Electric Vehicle (EV) Charging Station Charges up to 6X Faster than a Standard Wall Outlet And Adds Up To 25 Miles Of Range Per Hour, So You Always Have the Range You Need

【 IP66 Waterproof Level 2 Wall Box 】 Everything You Need Is in the Box and the Charging Unit Itself Is All-Weather Compatible/Waterproof. The LCD Display Tells You Exactly How Much And What Speed You'Re Charging At.

【 Smart And Intelligent EV Charger 】 Designed with an Intelligent Chip Which Will Monitor All the Conditions During the Charging Process Including the Voltage, Current, Charging Time and Power Consumed.

【 100% Satisfied 】please download or consult if necessary. Whenever Your EV Chargers Have Any Problem or Anything Simply Not Meets Your Needs, unconditional replacement within 30 days

Our newest, fastest and most advanced Level 2 home charging station, can charge up to 28 miles of range per hour - 6x faster than a standard wall outlet. Its easy installation, cutting-edge technology and intelligent chipset ensure a convenient and smart charging experience.

✔ Compatible with all SAE J1772 electric vehicles

✔ Power Output: 32 Amp/7.68kWs

✔ IP Rating: IP66

✔ Fast charging

✔ 20ft cable length

Real-time Charging Data

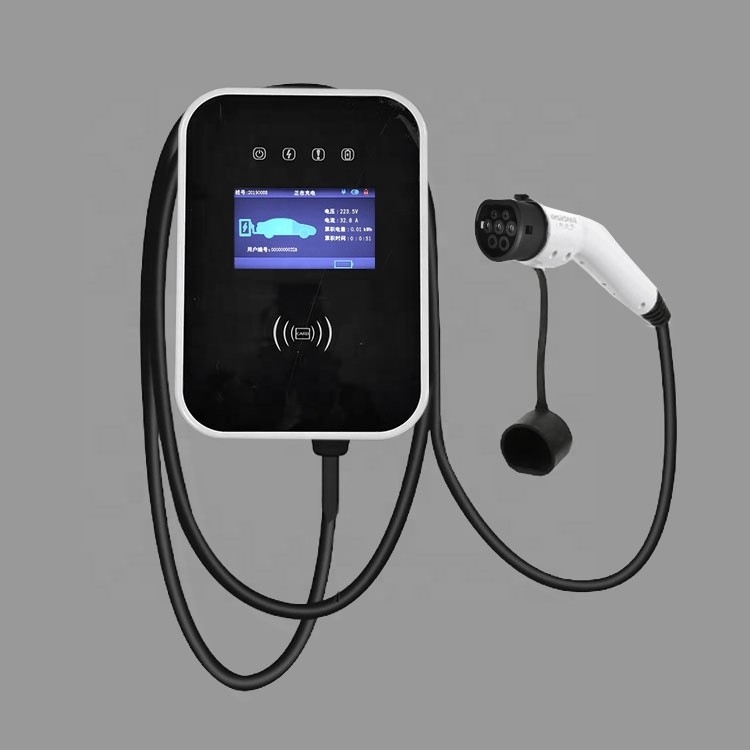

The 2.76 x 2.05 inch LCD screen provides real-time charging status such as voltage, current and kWhs added.

Safe and Reliable for Your Home and Your EV

Our charging station balances the currents of household appliances to ensure a safe, steady current while charging. It also has an IP rating of IP66 which means it is suitable for outdoor use.

Thoughtful Design

The charging station comes with a 20ft-long cable. The included hook allows you to store the long charging cable neatly.

Intelligent Chipset

The device can detect and repair imbalances automatically to avoid overvoltage and overcurrent. Intelligence is one of the standout features of the charging station.

Easy Installation

Lectron 240V 32A is ready to plug into any NEMA 14-50 outlet and comes with a 20-feet cable.

It can be installed by any electrician, indoor or outdoor, to charge at 32A, and comes with a 20-foot charging cable and a NEMA 14-50 plug.

Hang the cable on the included hook when not in use.

Product Parameter

Wall Mounted EV Charger Power Specification
	EU Standard

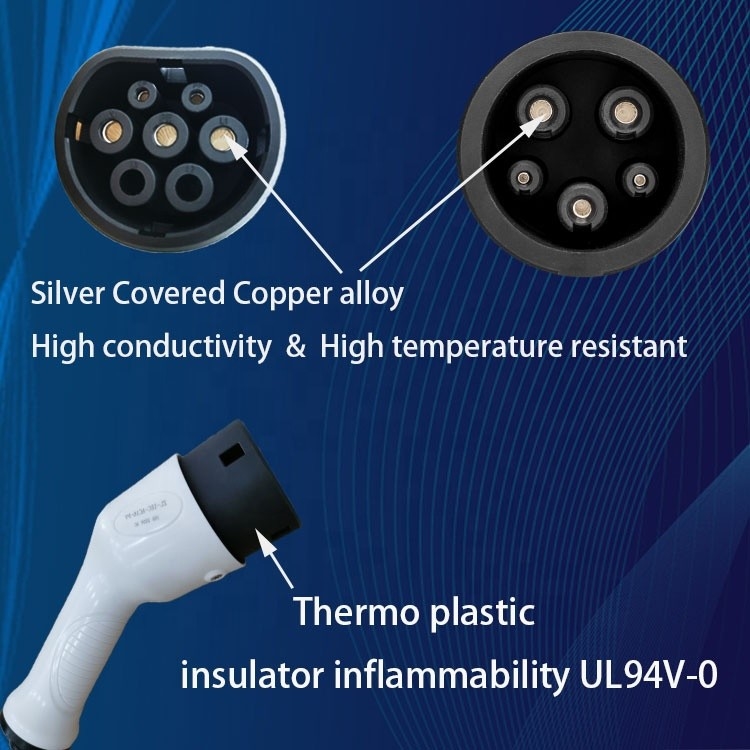

Charging Connector Type	IEC 62196-2 (Type 2)
AC Power Input Rating	1 Phase	3 Phase
AC Power Input Rating	230V±15%	380V±15%
AC Power Output Rating	7kw/32A	11kw/16A
AC Power Output Rating		43kw/63A
Frequency Rating	50/60 Hz
User Interface & Control
Emergency Stop Button	Yes	Plug-and-Charging	Yes

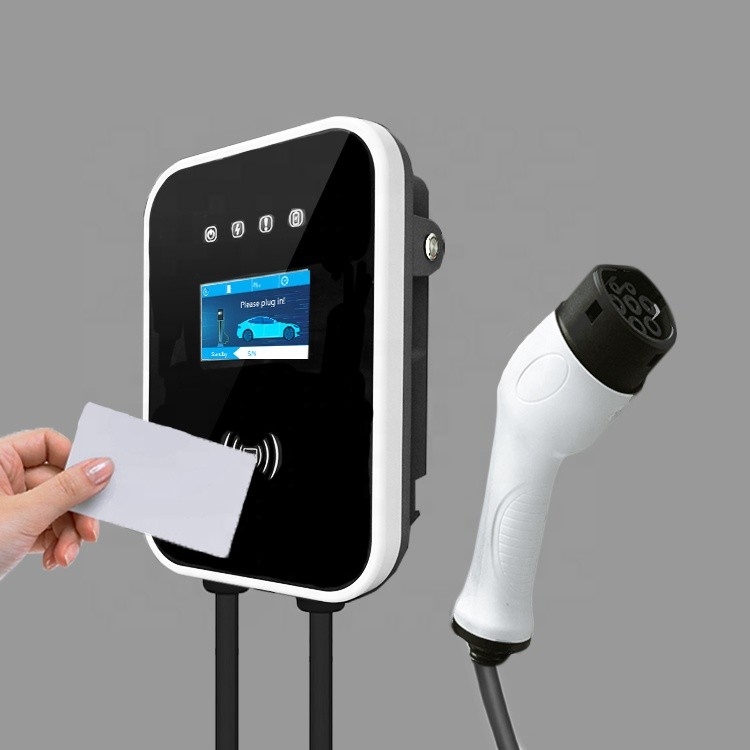

RFID Card Charging	Yes	App Charging	Yes
Ethernet Interface	Yes	Wifi Function	Yes
OCPP Protocol	OCPP 1.6	4.3-inch LCD Screen	Optional
Protection
Over Voltage Protection	Yes	Under Voltage Protection	Yes
Over Load Protection	Yes	Short Circuit Protection	Yes
Earth Leakage Protection	Yes	Ground Protection	Yes
Over-temp Protection	Yes	Surge Protection	Yes
RCD	Type B
Environmental
Storage Temperature	-40 ~ 70℃	Operating Temperature	-20 ~ 50℃
Operating Humidity	Up to 95%, non-condensing	Altitude	≤2000m
Cooling Method	Natural Cooling
BCJ01 Wallbox Mechanical
IP Code	IP54	Dimension(H×W×D,mm)	410×260×164
Weight	6kg	Charging Cable Length	5m or Customize
Enclosure Material	Front-panel: PC/ABS flame retardant material

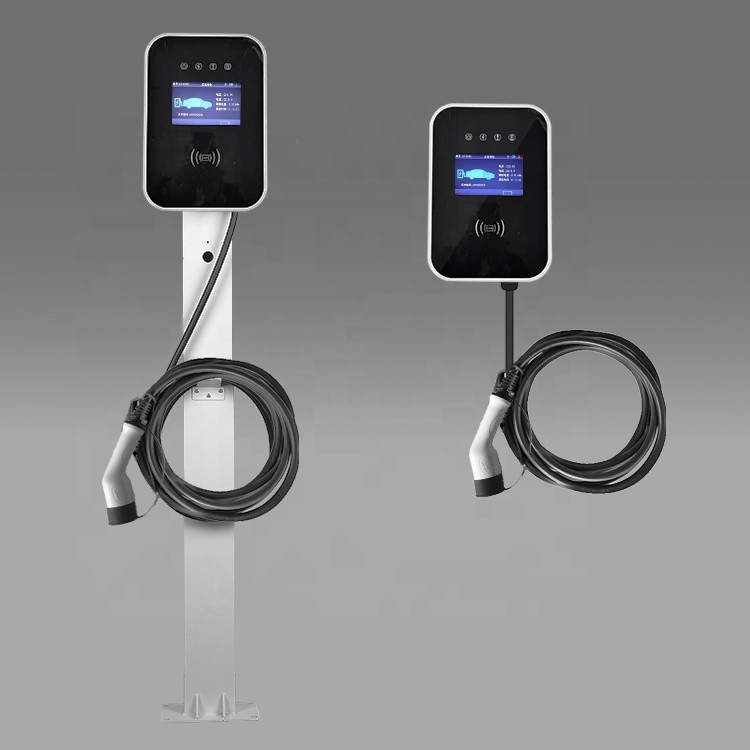

BCJ01 Mounting Pole(Optional)
Dimension(H×W×D,mm)	1500×150×60	Weight	＜7kg
Enclosure Material	Metal

Compatible Model
BMW	BMW 5 Series 530e, BMW X5 xDrive40e, BMW i3	Subaru	Subaru Crosstrek Hybrid
Ford	Ford C-Max Energi, Ford Fusion Energi, Ford Mustang Mach-E	Fiat	Fiat 500e
Chevrolet	Chevrolet Bolt EV, Chevrolet Volt	Jaguar	Jaguar I-PACE
Hyundai	Hyundai Ioniq Electric, Hyundai Kona Electric	KIA	Kia Niro PHEV
Nissan	Nissan LEAF S, Nissan LEAF S PLUS	Porsche	Porsche Cayenne S E-Hybrid
Honda	Honda Clarity Electric, Honda Clarity PHEV	Volkswagen	Volkswagen e-Golf
Toyota	Toyota Prius Prime	Chrysler	Chrysler Pacifica
Mitsubishi	Mitsubishi Outlander PHEV

Specification

Wall Mounted EV Charger Power Specification
	EU Standard
Charging Connector Type	IEC 62196-2 (Type 2)
AC Power Input Rating	1 Phase	3 Phase
AC Power Input Rating	230V±15%	380V±15%
AC Power Output Rating	3.5kw/16A	11kw/16A
	7kw/32A	22kw/32A
		43kw/63A
Frequency Rating	50/60 Hz
User Interface & Control
Emergency Stop Button	Yes	Plug-and-Charging	Yes
RFID Card Charging	Yes	App Charging	Yes
Ethernet Interface	Yes	Wifi Function	Yes
OCPP Protocol	OCPP 1.6	4.3-inch LCD Screen	Optional
Protection
Over Voltage Protection	Yes	Under Voltage Protection	Yes
Over Load Protection	Yes	Short Circuit Protection	Yes
Earth Leakage Protection	Yes	Ground Protection	Yes
Over-temp Protection	Yes	Surge Protection	Yes
RCD	Type B
Environmental
Storage Temperature	-40 ~ 75℃	Operating Temperature	-30 ~ 55℃
Operating Humidity	Up tp 95%, non-condensing	Altitude	≤2000m
Cooling Method	Natural Cooling
M3P Wallbox Mechanical
IP Code	IP54	Dimension(H×W×D,mm)	410×260×164
Weight	12kg	Charging Cable Length	5m or Customize
Enclosure Material	Front-panel: Tempered Glass, Back-cover: Plate Metal
M3T Mounting Pole(Optional)
Dimension(H×W×D,mm)	1400×200×100	Weight	＜8kg
Enclosure Material	Metal
