Place of Origin:
CHINA
Brand Name:
Hochiry
Model Number:
Hochiry-PS-100KW
Contact Us
Simple and compact:
|
Model
|
HCR-PEVC3401E-30K1000N1
|
HCR-PEVC3401-40K1000N1
|
|
Power Suppply
|
3P+N+PE
|
|
|

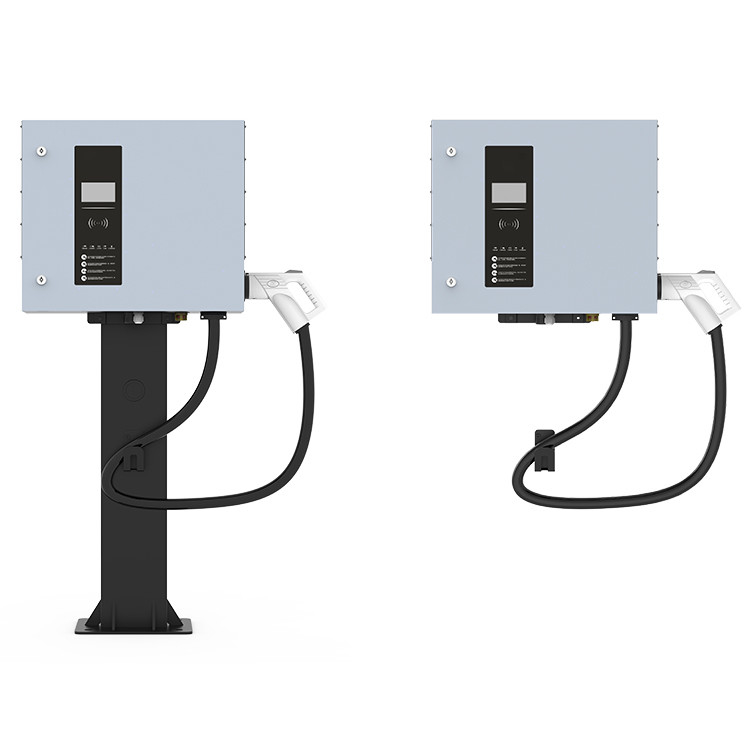

Installation
|
Wall-mounted/floor-standing
|
|
|
THDi
|
≤5%
|
|
|
Efficiency
|
≥95%
|
|
|
Power Factor
|
≥0.98
|
|
|
Rated Voltage
|
400VAC±15%(50/60Hz)
|
|
|
Protection
|
IP54
|
|
|
Connector Type
|
CCS Combo 2
|
|
|
Output voltage
|
150-1000VDC
|
|
|
Maximum Output Current
|
200ADC
|
|
|
Output Power
|
30KW
|
40KW
|
|
Output Voltage Accuracy
|
≤0.5%
|
|
|
HMI
|
4.3 inch touch LCD screen
|
|
|
Output Current Accuracy
|
≤0.5%
|
|
|
Output Current Accuracy
|
≤±5%
|
|
|
Payment Method
|
RFID Card,APP
|
|
|
Cable length
|
5 Meters (Custom)
|
|
|
Network Connection
|
Cellular modem:GSM/3G/4G
LAN:10/100 Base-T Ethernet
|
|
|
Communication Protocol
|
OCPP 1.6J
|
|
|
Operating Noise Level
|
≤60dBA
|
|
|
Protective function
|
Over Current,Under Voltage,Over Voltage,Short Circuit,Residual Current, Surge Protection,Over Temperature,Ground Protection
|
|
|
Power Meter
|
Accuracy Class 1 energy meter
|
|
|
Enclosure
|
Galvanized steel
|
|
|
Product Dimension
|
700 x 550 x 1800mm(W x D x H)
|
|
|
Package Dimension
|
950 x 720 x 1950mm(W x D x H)
|
|
|
Maximum Installation Height
|
≤2000 meters
|
|
|
Operating Humidity
|
5%–95% RH
|
|
|
Operating temperature
|
-35℃ to +50℃
|
|
|
Storage temperature
|
–40°C to +75°C
|
|
