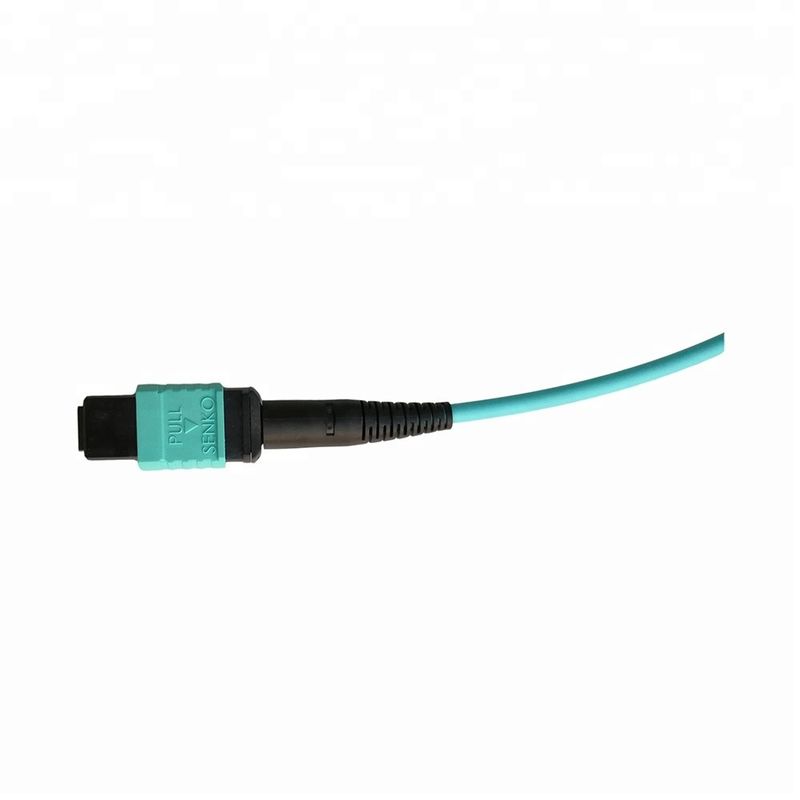

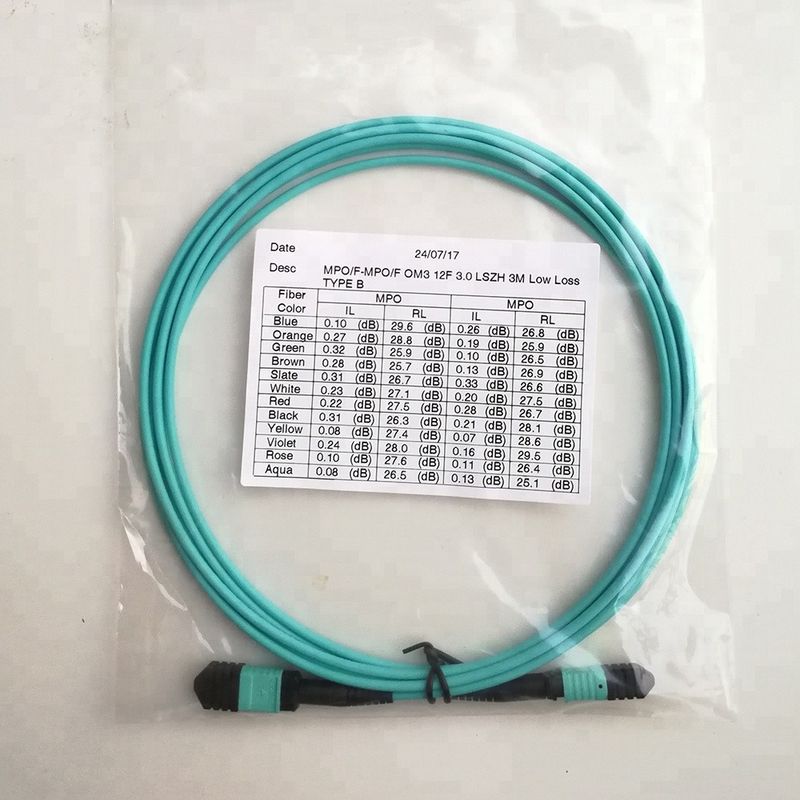

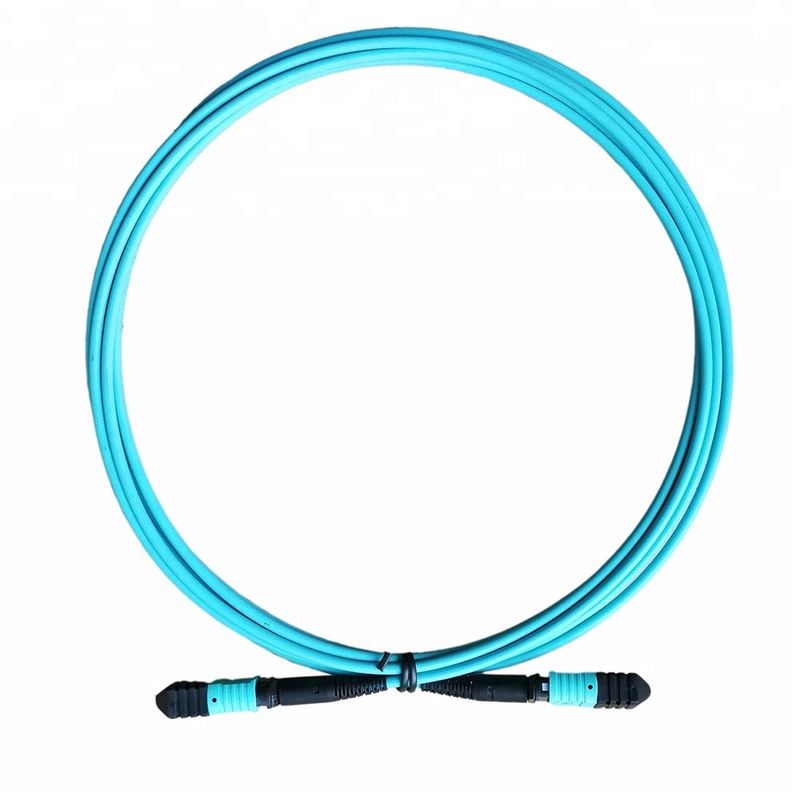

12 Fibers Female Mpo Fiber Optic Patch Cord Fiber Optical Pigtail Fiber Cable
Fiber Optical Pigtail Fiber Cable Description:
Specially designed for fast Ethernet, Fiber Channel,perfect for the demands of Fiber Professionals.
High quality material: The fiber optic jumper jacket is made of friendly PVC or LSZH material, soft body but wearable.Ceramic connectors ensure low loss, and high reliability.
Widely used: Strong compatibility, compatible with all standard fibre optic equipments and connectors, can be used for
various types of optical fiber LAN, optical fiber communication system, instruments,CATV,CCTV and so on.
Product Features:
1.The style is diverse, the interface is complete
2.Low insertion loss and return loss
3.High back loss, small volume, light weight
4.End-face geometry and quality superior than IEC and Telcordia standards.
5.G652D or G657A,LSZH, cable jacket.
6.Mechanical performance: IEC 61754-4 standard.
7.RoHS and REACH materials compliant.
MTP/MPO Specifications:
|
Type |
Single Mode |
Single Mode |
Multi Mode |
|||
|
(APC Polish) |
(UPC Polish) |
(PC Polish) |
||||
|
Fiber Count |
8,12,24 etc. |
8,12,24 etc. |
8,12,24 etc. |
|||
|
Fiber Type |
G652D,G657A1 etc. |
G652D,G657A1 etc. |
OM1,OM2,OM3 etc. |
|||
|
Maximum Insertion Loss |
Elite |
Standard |
Elite |
Standard |
Elite |
Standard |
|
Low Loss |
Low Loss |
Low Loss |
||||
|
≤0.35 dB |
≤0.75dB |
≤0.35 dB |
≤0.75dB |
≤0.35 dB |
≤0.60dB |
|
|
Return Loss |
≥60 dB |
≥60 dB |
NA |
|||
|
Durability |
≥500 times |
≥500 times |
≥500 times |
|||
|
Operating Temperature |
-40℃ ~ +80℃ |
-40℃ ~ +80℃ |
-40℃ ~ +80℃ |
|||
|
Test Wavelength |
1310nm |
1310nm |
1310nm |
|||
Application:
Data communication network
Optical System Access network
Storage area networking fiber channel
High density architectures
Note: Maximum Bandwidths of Different Multimode Fibers
OM1 – 62.5/125um – 10GBit up to 33 meters (108 feet)
OM2 – 50/125um – 10GBit up to 82 meters (270 feet)
OM3 – 50/125um, Laser Optimized – 10GBit up to 300 meters (984 feet)
OM4 – 50/125um, Laser Optimized – 10GBit up to 550 meters (1805 feet)
