HDX 07B Outdoor FTTH Splitter Distribution Box IP55 196×170×50MM

HDX 07B FTTH Outdoor Waterproof LGX PLC Optical Splitter Fiber Optic Distribution CTO Box For

Features:

Description:

GFS-02A fiber access termination box is able to hold up to 16 subscribers.It is used as a termination point for the feeder cable to connect with drop cable in FTTx network system.It integrates fiber splicing,splitting,distribution,storage and cable connection in one solid protection box.

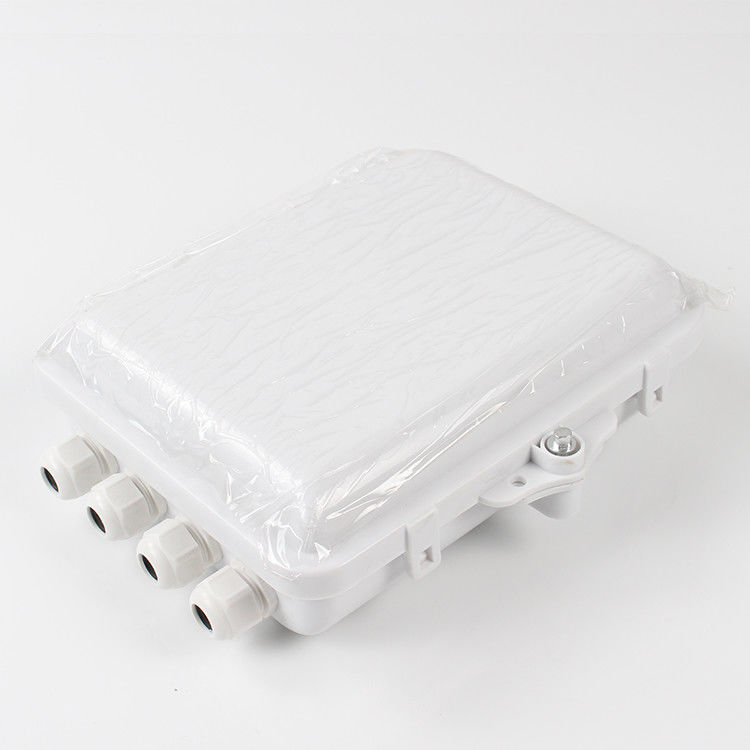

• Water-proof design for outdoor uses.
• Protection Level: IP55.
• Easy installations: Ready for wall mount – installation kits provided
• Adapter slots used – No screws and tools needed for installing adapters.
• Ready for splitters: designed space for adding splitters.

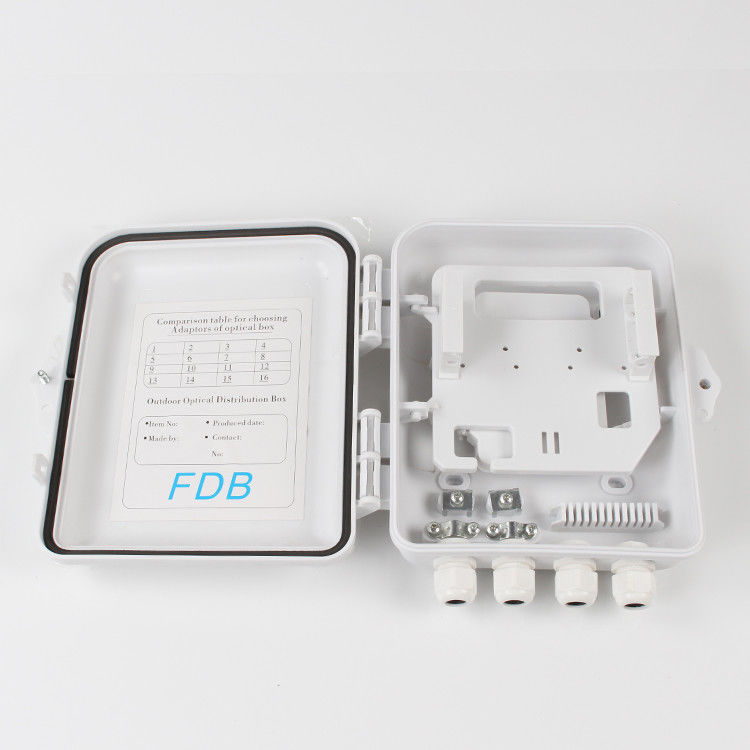

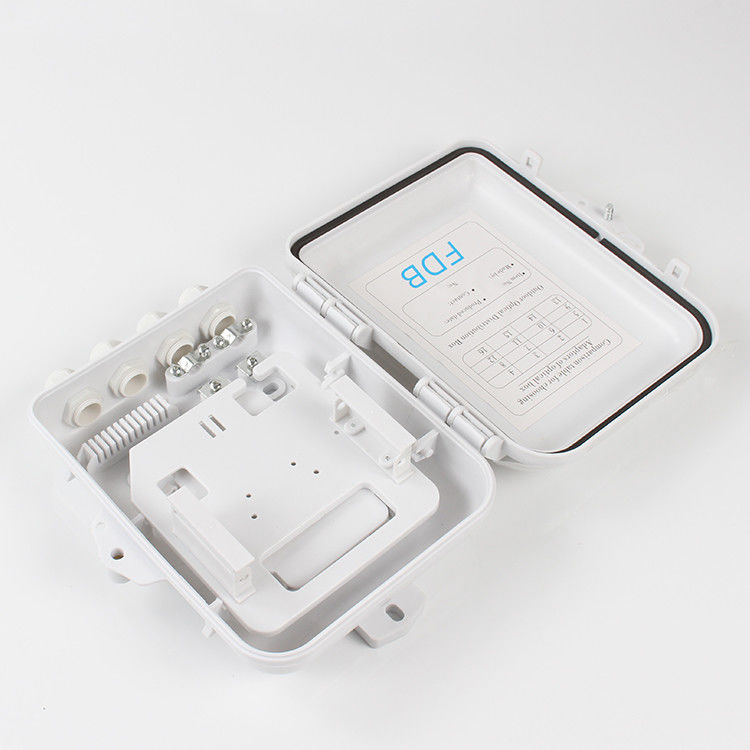

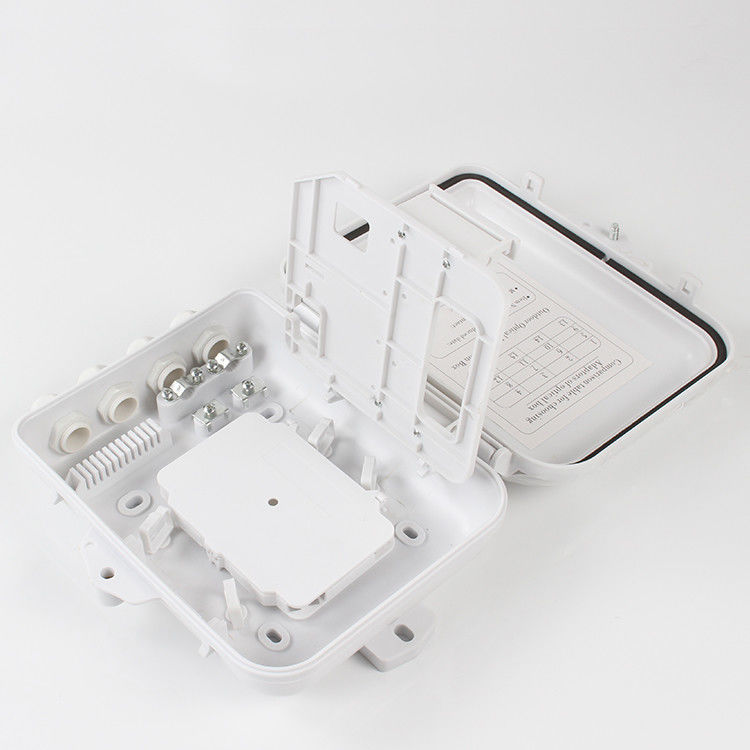

• Space saving! Double-layer design for easier installation and maintenances:
• Lower layer for splitters and over length fiber storage.
• Upper layer for splicing, cross-connecting and fiber distribution.
• Cable fixing units provided for fixing the outdoor optical cable.
• Accommodates both cable glands as well as tie-wraps
• Lock provided for extra security

Features

• Industry standard user interface, be made of high impact plastic.

• Anti-UV, Ultra violet resistant and rainfall resistant;

• Wall and pole mountable;

• Water-proof design with IP-66 Protection level;

• Integrated with splice cassette and cable management rods;

• manage fibers in a reasonable fiber radius condition;

• easy to maintain and extend the capacity;

• Fiber bend radius control more than 40mm;

• Suitable for the fusion splice or mechanical splice;

• 1*8 1*16 Splitter can be installed as an option;

• Efficient cable management;

• 2 ports cable entrance for drop cable.

Accessories

1. Wall mounting kits : 4 pieces
2. Screws : 4 pieces
3. Cable tie: 10 pieces
4. Heat shrink protective sleeves: 16 pieces
5. Key :1 piece

widely used in FTTH access network.
Telecommunication Networks
CATV Networks
Data communications Networks
Local Area Networks
