Place of Origin:
CHINA
Brand Name:
Hochiry
Certification:
CE ROHS
Model Number:
GXF-A
Contact Us
● Nonmetal SMC body to effectively prevent condensation
● SMC body can be pulled out from inside structure without interfere in the existing cabling, easy for maintenance in future

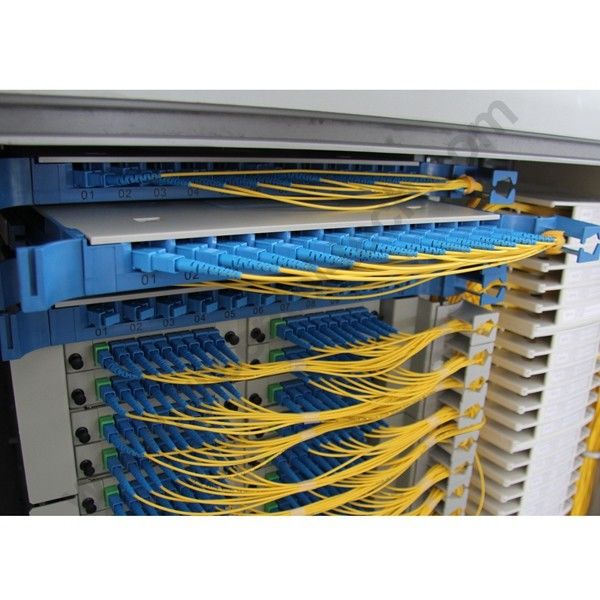

● Distribution large quantity of cables through PLC Splitters
● Waterproof lock,two point locking,customized external padlock
● Dust and splash-proof level reaches IP66
● Full front access or double side access(for 576 cores or above)
● Available in 12F splicing & termination tray
● Available in FC/SC/ST/duplex LC adaptor
● Modular Splitter with Pre-connectorized fiber adaptors
● Optical cable fixing & stripping device to lead-in cables
● With pedestal,facilitating implementation

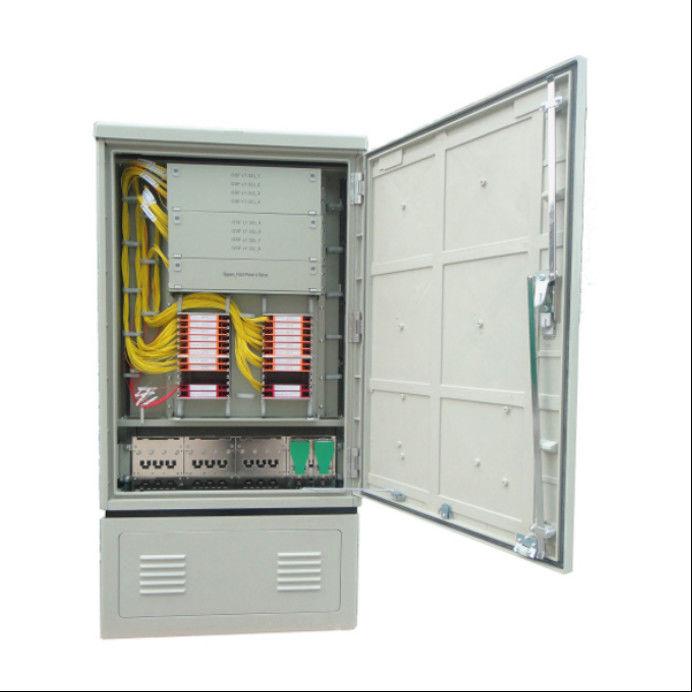

| Fiber Distribution Terminal GXF-A Parameter | |
| Adaptor Type | SC,FC,ST,Duplex SC,Duplex LC |
| Capacity | 144,288,576,1152 fibers |
| Body Material | SMC or stainless steel |
| Surface Treatment | Powder coating white or grey color |
| Installation Method | Floor-standing |
| Bending Radius(mm) | > 30 |
Customization Event
①Body Material ②Body Color ③Fiber Capacity ④Pigtail Type ⑤Adaptor Type ⑥Branding Logo Print Ordering Information
| Model | Dimension HxWxD(mm) | Termination /Splicing Unit | Straight Pass Through | PLC Splitter (Modular Type) | Door & Access |
| GXF-A-144 | 1000x550x310 | 144F(12Fx12 Trays) | 72F(12Fx6 Trays) | 1:32x6 units | 1xfront |
| GXF-A-288 | 1460x750x340 | 288F(12Fx24 Trays) | 144F(12Fx12 Trays) | 1:32x10 units | 1xfront |
| GXF-A-576A | 1450×760×560 | 576F(12Fx48 Trays) | 288F(12Fx24 Trays) | 1:32x20 units | 1xfront+1xrear |
| GXF-A-576B | 1450×760×560 | 576F(12Fx48 Trays) | 288F(12Fx24 Trays) | 1:32x20 units | 2xfront |
| GXF-A-1152 | 1450×1400×560 | 1152F(12Fx96 Trays) | 576F(12Fx48 Trays) | 1:32x40 units | 2xfront+2xrear |
| Please contact sales department for availability and customization requirement | |||||
