Place of Origin:
CHINA
Brand Name:
Hochiry
Certification:
CE ROHS FCC
Model Number:
ABS 1X32-PLC
Contact Us
Specification

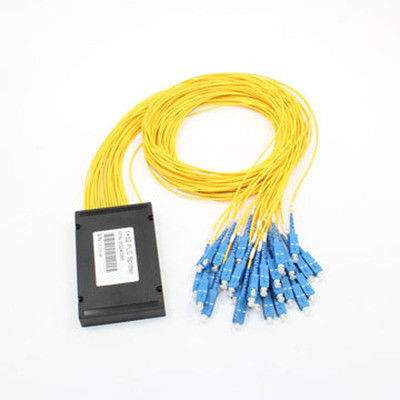

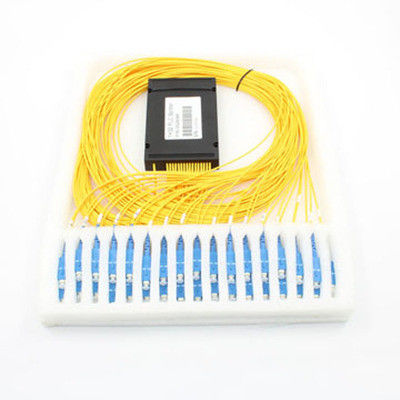

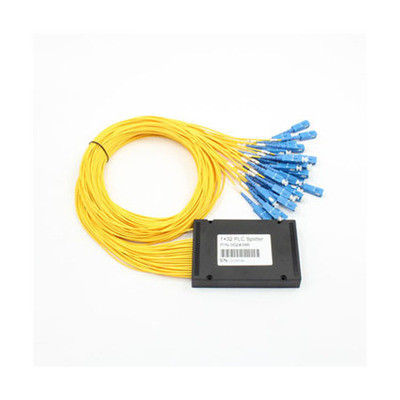

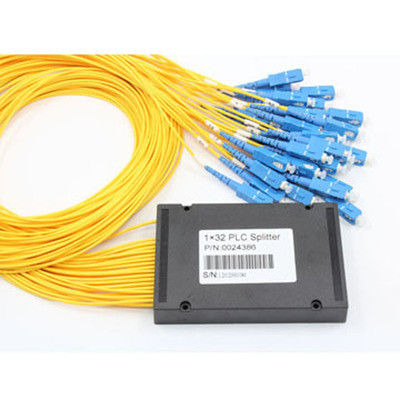

| ABS Box Type PLC Fiber Optic Splitter technical specifications | |||||||
| Model name | ABS 1X32-PLC | ||||||
| Wavelength(nm) | 1260-1650 | ||||||
| Free Sample | YES | ||||||
| Material | PVC;ABS | ||||||
| Design | OEM & ODM | ||||||
| Connectors | FC, SC, ST , LC, LC/APC, SC/APC, MU and FC/APC | ||||||
| fiber optic connectors are available | |||||||
| Parameters | 1x2 | 1x4 | 1x8 | 1x16 | 1x32 | 1x64 | 1x128 |
| Insertion Loss (dB) | ≤4.2 | ≤7.4 | ≤10.7 | ≤13.9 | ≤17.2 | ≤21.5 | ≤24 |
| PDL (dB) | ≤0.2 | ≤0.2 | ≤0.3 | ≤0.3 | ≤0.3 | ≤0.4 | ≤0.5 |
| Uniformity (dB) | ≤0.6 | ≤0.8 | ≤0.8 | ≤1.0 | ≤1.5 | ≤2.0 | ≤2.0 |
| Return Loss (dB) | ≥50 | ||||||
| Directivity (dB) | ≥55 | ||||||
| Temperature Range (°C) | -40~+75 | ||||||
| Storage Temperature (°C) | -40~+85 | ||||||
| NOTE: The above parameter is for splitter with connector, if w/o connector, insertion loss will reduce by 0.2dB. | |||||||
Application
1)Optical Signal Distribution
2)Data Communications
3)Lan and CATV System
4)FTTX Deployment
5)FTTH Network
6)Passive Optical Networks (PON)
7)Measuring System and Laser System
8)DWDM and CWDM Systems
