Place of Origin:
CHINA
Brand Name:
Hochiry
Certification:
CE ROHS
Model Number:
HDX-06B
Contact Us

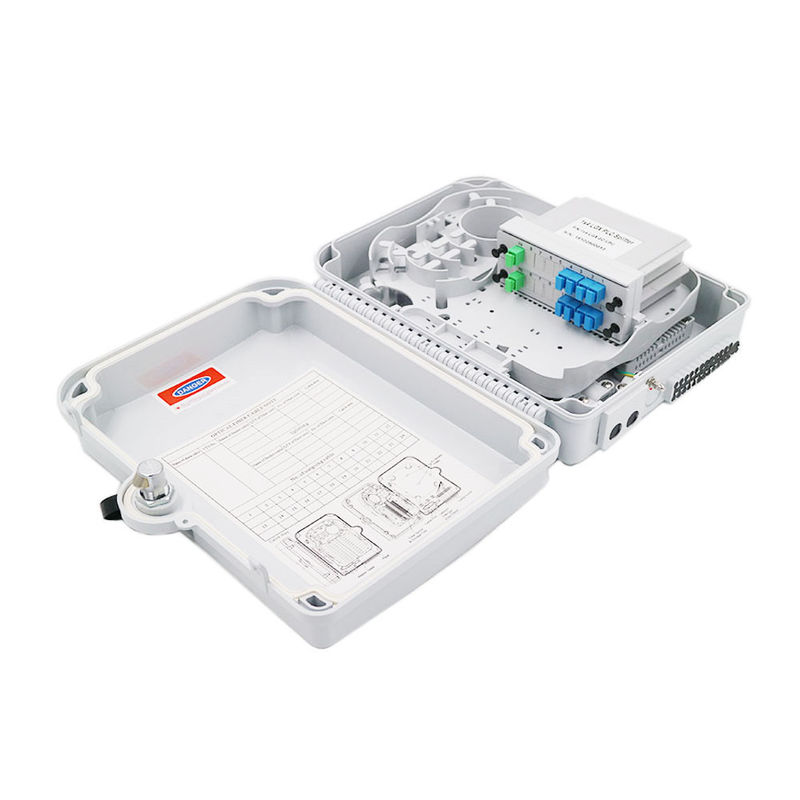

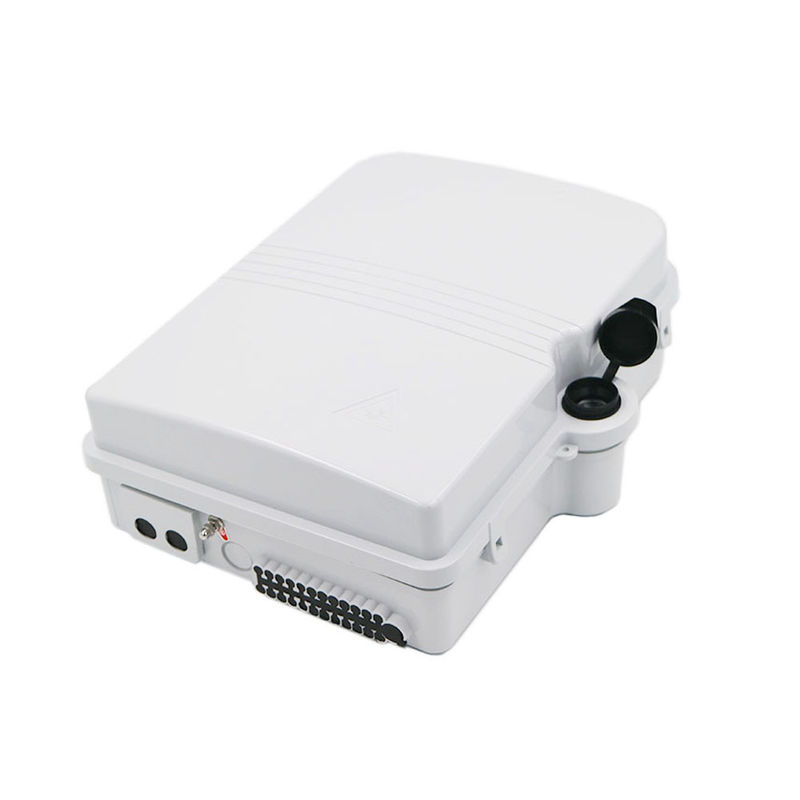

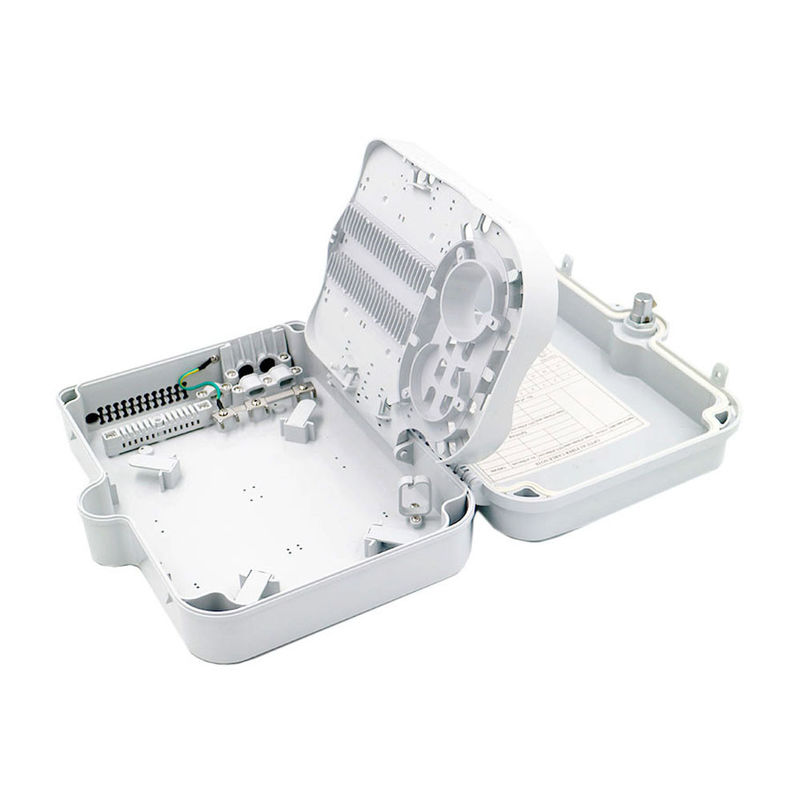

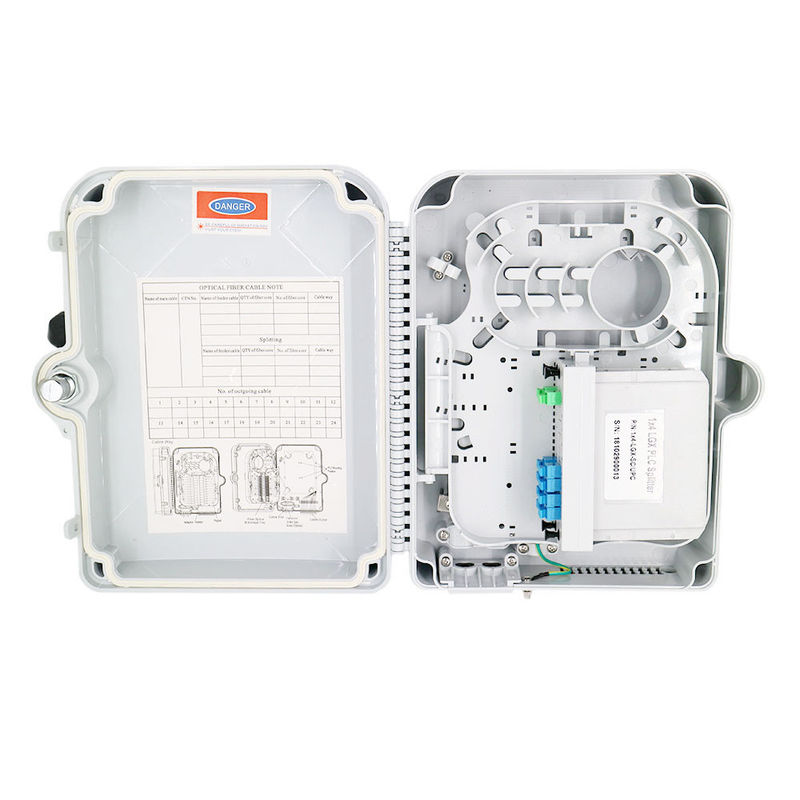

This box is used as a termination point for the feeder cable to connect with drop cable in FTTx communication network system.
It intergtates fiber splicing, splitting, distribution, storage and cable connection in one unit. Meanwhile, it provides solid protection and management for the FTTx network building.
Optical Fiber Splitter Box Features:
1. Total enclosed structure, be in nice shape
2. Protects and manages cable effectively
3. Secured with anti-theft locking mechanism
4. Standard size, light weight
5. High quality PC +ABS material
6. Good properties of dust, and moisture proofing,IP65
7. Clamping for feeder cable and drop cable, fiber splicing, fixation, storage, distribution...etc all in one
8. Suitable for SC and LC duplex adaptor and pigtail
9. Easy to operate
10. Wall and pole mountable (accessories optional)
11. Suitable for both outdoor and indoor use
widely used in FTTH access network.
Telecommunication Networks
CATV Networks
Data communications Networks
Local Area Networks
| Dimensions and Capability | |
| dimensions(W*H*D) | 225×200×65MM |
| Adapter Capacity | 1:8 PLC Splitter |
| Number of Cable Entrance/Exit | 2/12 |
| Optional Accessories | Adapters, pigtails |
| Insert Loss | ≤0.2dB |
| UPC Return Loss | ≥50dB |
| APC Return Loss | ≥60dB |
| Weight | 1.8KG |
| Shipping Information | |
| Pakage Contens | Distribution box, 1 unit; Keys for lock, 2keys |
| Wall mount installation accessories,1 set | |
| Package dimensions(W*H*D) | 225×200×65MM |
| Weight | 1.8KG |
