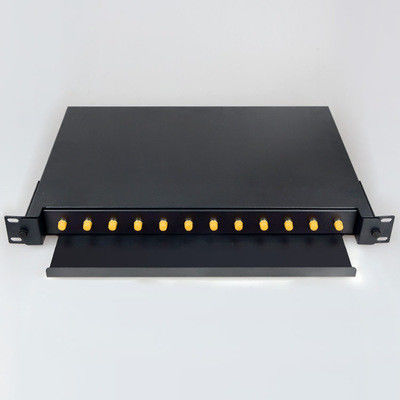

Name: 12-24 Core Fiber Optic Patch Panel SC FC ST LC Rack Mount Fiber Termination Box
Brand: Hochiry
SKU: GXF-A
Rating: 5 (194 reviews)

Home > products > Fiber Optic Distribution Box >

12-24 Core Fiber Optic Patch Panel SC FC ST LC Rack Mount Fiber Termination Box

SC Fiber Optic Patch Panel

24Core Fiber Optic Patch Panel

LC Rack Mount Fiber Termination Box

Place of Origin:

CHINA

Brand Name:

Hochiry

Certification:

CE ROHS

Model Number:

GXF-A

Request A Quote

12-24 Core Fiber Optic Patch Panel SC FC ST LC Rack Mount Fiber Termination Box

Product Details

Product Name:

ODF Fiber Optic Patch Panel

Material:

SMC

Installation:

Slide Rail Rack Mount

Protection:

IP 55

Capacity:

Max 48 Fibers

Size:

450x180x150mm

Dividers:

Max 4pcs 1:16 Splitter

Payment & Shipping Terms

Minimum Order Quantity

10PCS

Delivery Time

20-25 work days

Payment Terms

T/T, Western Union, MoneyGram

Supply Ability

50000 Pieces per Month

GXF-A 1152 Cores Fiber Distribution Terminal Cabinet / ODF Optical Distribution Cabinet

Get Best Price

Wall Mounted Fiber Optic Patch Panel 48 cores SMC For Outdoor Telecom Cabinet

Get Best Price

48 Fibers ODF Optical Distribution Frame Cabinet IP55 450x180x150mm

Get Best Price

ODF Fiber Optic Patch Panel Rack Mounted SC FC ST LC 48 Fiber

Get Best Price

86-180-25320086

info@szhodas.com

86-0755-5320086

Contact Now

Product Description

FTTH 12-24 Core SC/FC/ST/LC ODF Rack Mount Splicing Termination Box Fiber Optic Patch Panel

Product data:

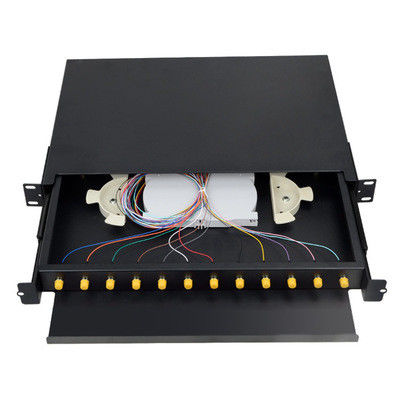

Standard: 19" rack mount dimension.Cable entrance: 4 ports, ⌀ 25mm. With cable lead-in, fixation and protection devices. There is enough room for fiber storage, ensure the bending radius is 15 times diameter of the cable. Providing relevant accessories.

Features

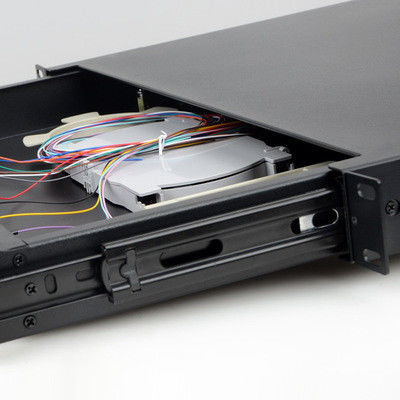

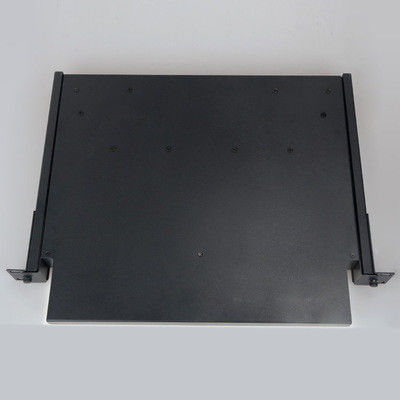

High quality cold rolled sheet forming, electrostatic powder spraying technology, smooth surface, not east to rust. High strength sheet metal, long-term using is not easy to deformation. The edges of metal parts are designed with rounded corners to avoid damage to cables. The bottom plate is designed with sliding design, for the patch panel already installed on the cabinet, the wiring can be adjusted without removing the patch panel.

Application:

1.Telecommunication area.
2.Internet service.
3.Data center, CATV
4.FTTH

Specifications:

Model	HDS-ODF-2U
Type	19inch Rock Mount
Material	1.34mm CRS(Cold Rolled Steel)
Size WDH (mm)	4302501U
Max capacity (core)	48
Included accessories	4pcs cable fix accessories, heat shrink tubes, cable ties, number tapes, adapter screws
Product color	Black
Weight	5kg/unit
Working temperature	-40~+85°C
Storage temperature	-40~+85°C
Outer carton dimension (mm)	485305425 / 5pcs
Outer Carton Weight (kg)	25 / 5pcs

Model Rules: HDS-ODF-XX-XX-XX
Ordering Information:

Model

XX: Fiber Capacity

XX: Adapter

XX: Pigtail

HDS-ODF

12=12 fibers
24=24 fibers
48=48 fibers
72=72 fibers
96=96 fibers

144=144 fibers

SC: SC/UPC
AS: SC/APC
LC: LC/UPC
AL: LC/APC
FC: FC/UPC
AF: FC/APC
