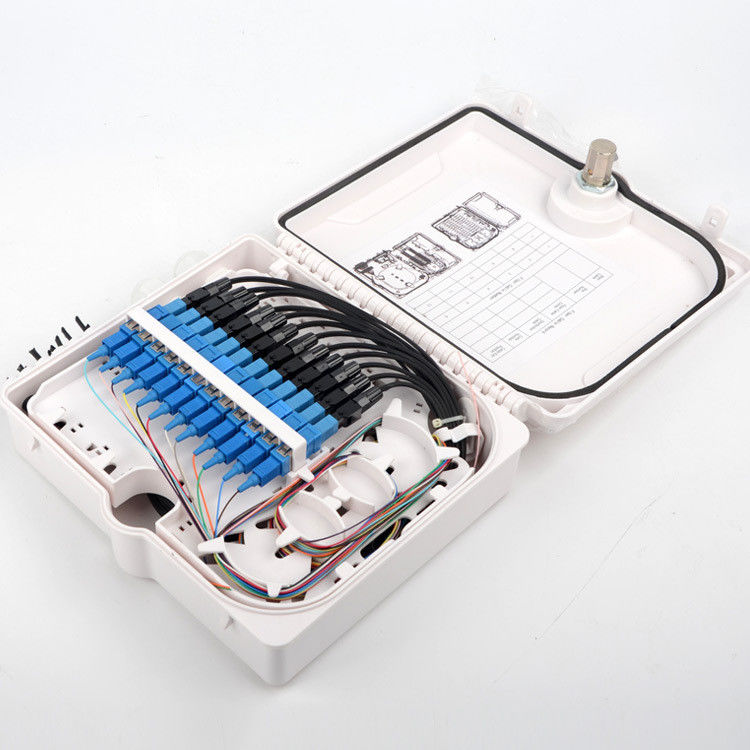

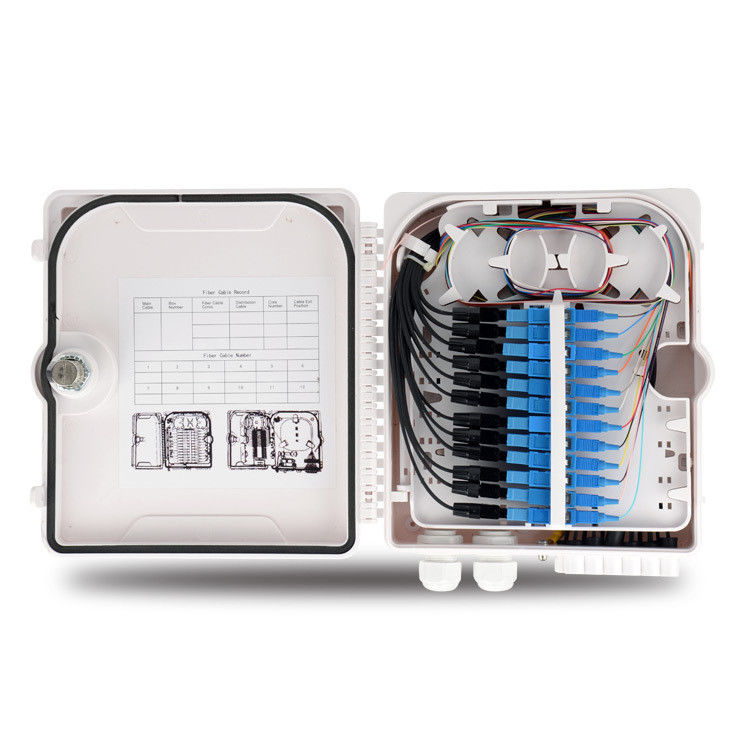

Wall Mounting Optical Fiber Distribution Box 4core 12core 24core 48core 1.8KG

FDB Equipment Terminal Box 4core 12core 24core 48core Fiber Optic Distribution Box Fiber Splitter Box

Description:

Fiber optic splitter termination box enables service providers to accelerate their deployments more effectively and is an ideal solution when deploying networks in FTTH applications. And it offers increased efficiency within distinct FTTX network applications. Featuring a compact solution for wall mounting, these termination boxes provide a significant space savings while maintaining hand access to connectors. Following are the features and benefits of deploying fiber optic splitter termination box.

Features

1. Provide a small footprint for splitting, splicing and terminating and are environmentally rated for indoor or outdoor use.
2. Available in several types, each box can equip with splice tray allowing for an input splicing option.

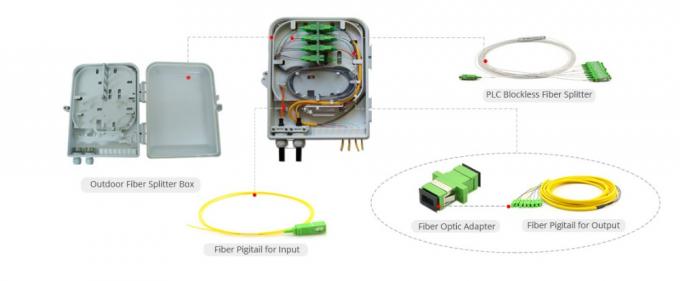

3. Accept standard splitters and splitters can be easily added after the termination box has been installed. And it can accommodate 1×4, 1×8, 1×16, 1×32 fibers, up to 64 fibers.
4. Its small size and flexible mounting options offer easy integration into cell sites and huts, providing on-demand capacity for wireless back haul applications.
5. Offer an economical solution for applications where larger sized FDHs (fiber distribution hubs) may be unfeasible.

widely used in FTTH access network.
Telecommunication Networks
CATV Networks
Data communications Networks
Local Area Networks
