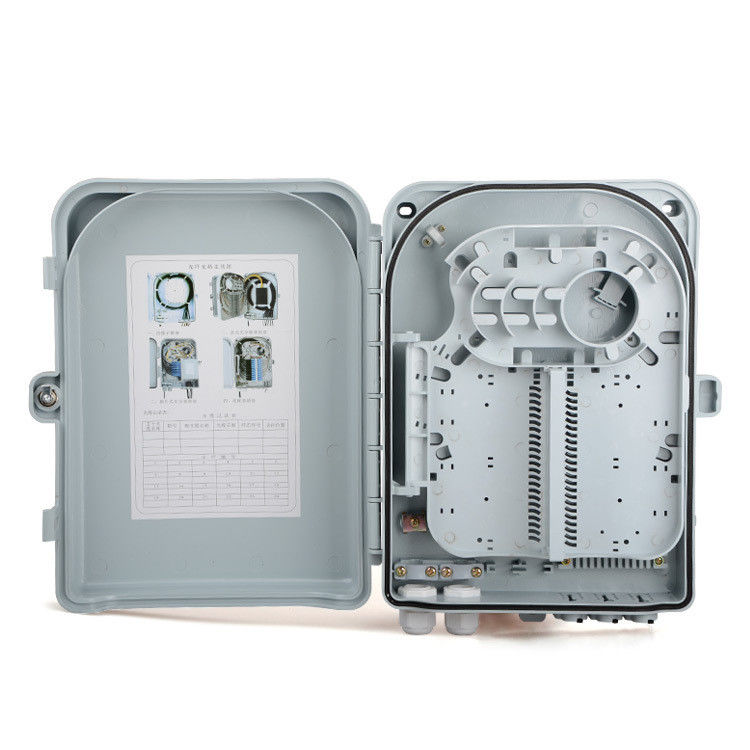

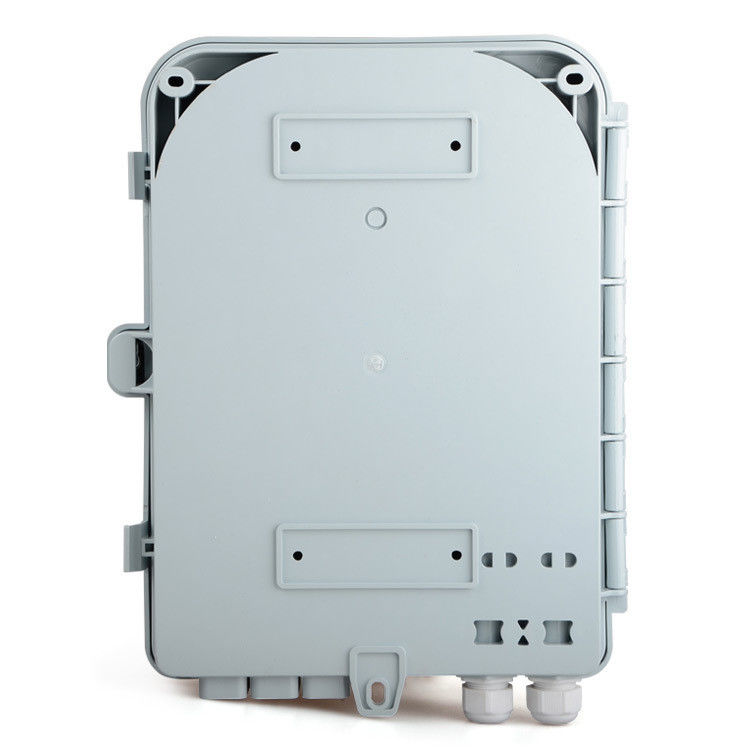

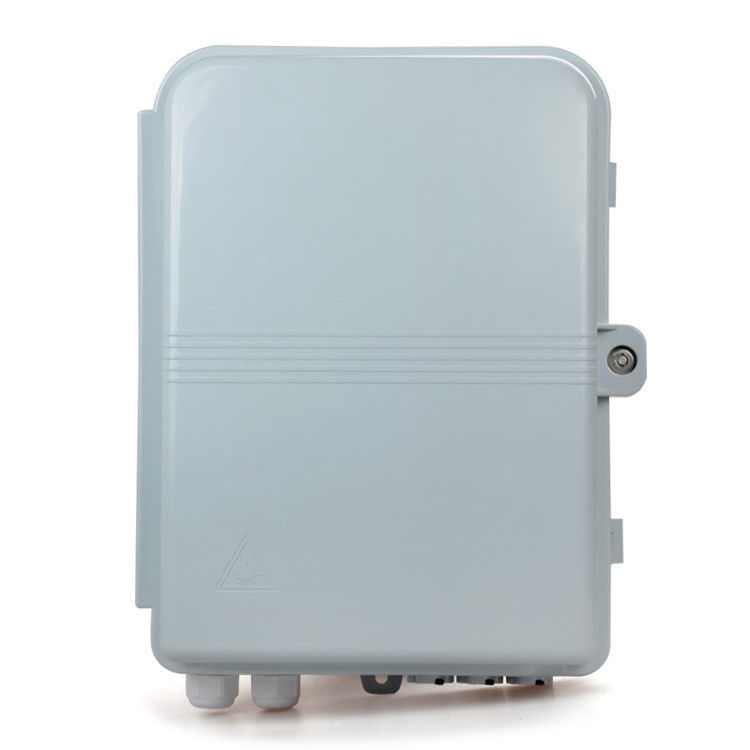

FTTH fiber optical terminal box, outdoor fiber optic termination box is used in wiring connection between optical cable and optical communication equipment, through adapter in distribution box, optical fiber jumper leads optical signal, realize optical wiring function, and can meet the optical splitter placed to achieve spectral function.
● Water-proof design with IP-66 Protection level.

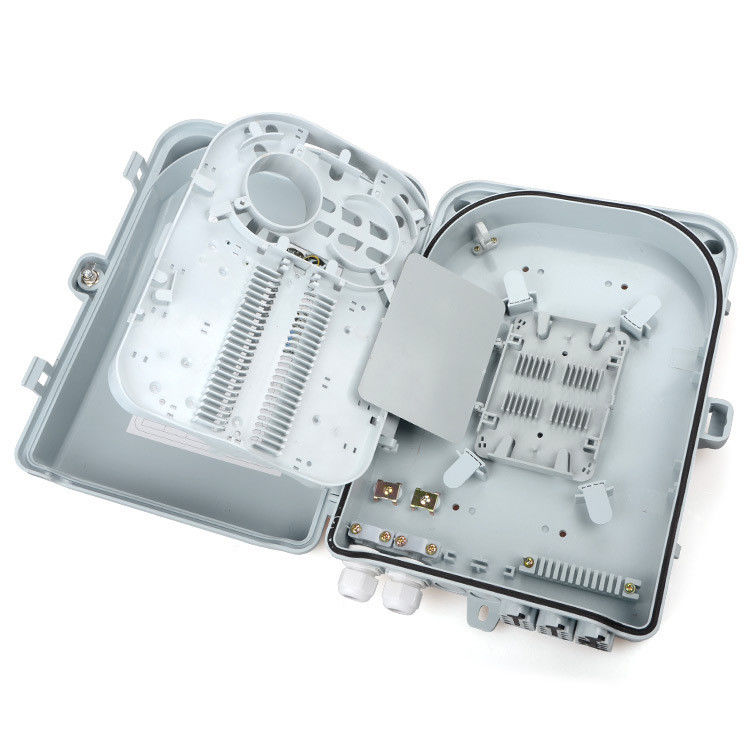

● Integrated with splice cassette and cable management rods.
● Manage fibers in a reasonable fiber radius condition.
● Easy to maintain and extend the capacity.
● Fiber bend radius control more than 40mm.
● Suitable for the fusion splice or mechanical splice.
● 1*16 Modular Splitter can be installed as an option.
● Efficient cable management.
●16ports cable entrance for drop cable.
| Product name | 8 Core Fiber Optic Distribution Box | Protection grade | IP65 |
| Operating Temperature | -40℃~60℃ | Product Size | 230×180×55MM |
| Working environment | Indoor and Outdoor wall-mounted | inlet/outlet Port | 3 inlet, 8 outlet for drop cables |
| Function | FTTH network building | Color | White or Black |
| Features | wet-proof,water-proof | Weight | 1.2kg |
