Place of Origin:
CHINA
Brand Name:
Hochiry
Certification:
CE ROHS
Model Number:
GJYXFCH-1B6-SM
Contact Us
FTTH Outdoor 2km G657A1 LSZH Flat Type Single Mode Optical De Cabo Fibra Optica Drop Cable Wire
Description:

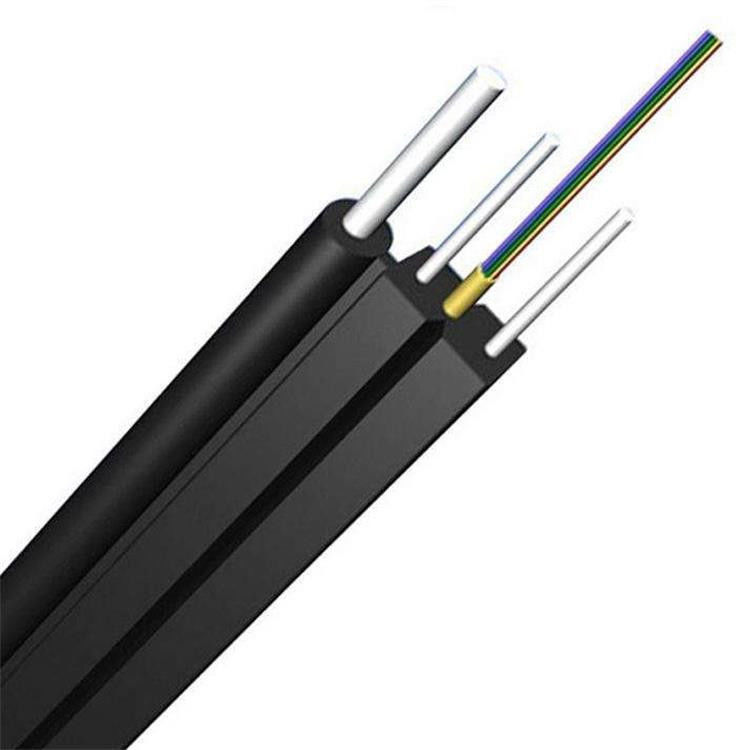

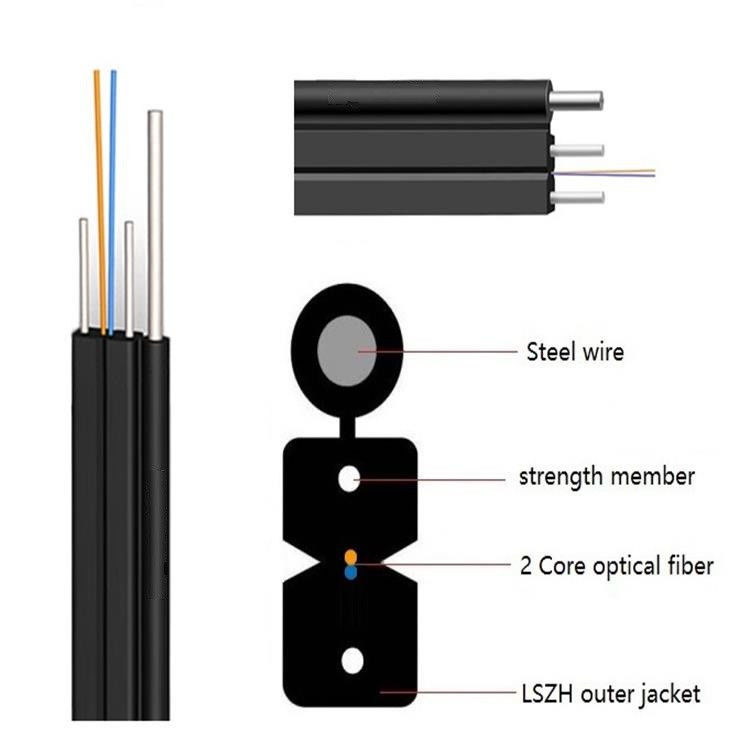

Self-supporting FTTH drop cable is constructed with one or two single-mode fiber (G.657A ). The cable is protected by a dielectric strength member made of fiberglass reinforced plastic (FRP), steel wire and a LSZH outer jacket. Designed for outdoor installation, the cable is well suited for connections between the dome closure and small dwelling unit/warehouse and independent villas.
Features:
Application:
|
Item
|
Technology parameter
|
|
Cable Type
|
Drop Cable
|
|
Cable Count
|
1 2 4 6 8 12
|
|
Fiber Color
|
Green, Yellow
|
|
Fiber Type
|
9/125 (G657A1)
|
|
Outer Sheath Color
|
Black or white
|
|
Sheath Material
|
LSZH
|
|
Cable Dimension (mm)
|
3.0(±0.1)*2.0(±0.1); 5.2(±0.1)*2.0(±0.1)
|
|
Cable weight (Kg/km)
|
15
|
|
Min. bending radius (mm)
|
10 (Static) 25 (Static) 30 (Static) 60 (Static)
|
|
Attenuation (dB/km)
|
≦ 0.4 at 1310nm, ≦ 0.3 at 1550nm
|
|
Short term tensile (N)
|
200; 600
|
|
Crush resistance (N/100mm)
|
1000; 2200
|
|
Operation temperature (℃)
|
-20~+70℃
|
