Place of Origin:
CHINA
Brand Name:
Hochiry
Certification:
CE ROHS
Model Number:
GJYXFCH-1B6-SM SC/UPC
Contact Us
FTTH Round Flat Indoor Outdoor G657a Ftth Sc Upc Drop Cable Patch Cord
Description:
The FTTH patch cord Can be divided into two kinds:FTTH indoor patch cord and FTTH outdoor patch cord. The FTTH indoor Pre-terminated patch cable comes with indoor Drop cable.The FTTH outdoor Pre-terminated patch cable comes with FTTH Flat Aerial Self-Supported Drop cable. It can be installed conveniently and operated simply. Hochiry can supply FTTH pre-terminated patch cables with SC/FC/LC connectors.
Feature
Low insertion loss, high return loss
High environmental stability
Available FTTH Drop cable diameters: Φ2.0*5.0mm; Φ2.0*5.2mm
For FTTH outdoor patch cord : FTTH Cable Self-Supported member: 1.0; 1.2 mm Steel wire
Connector Types: LC, FC, SC
Fiber Mode: Single mode G.657A1, G657A2, G657B3
Ferrule Interface Type: UPC to UPC, APC to APC, APC to UPC
Good exchangeability; Good Durability
High temperature stability
Compliant to IEC, TIA/EIA, NTT and JIS specifications
Drop Cable Patch Cord Specification:
|
Cable Type
|
FTTH Drop Cable
|
|
Construction
|
Self-supporting
|
|
Outer Jacket Material
|
LSZH (Black/White)
|
|
Cable Diameter
|
(2.±0.2)×(5.0±0.2)mm
|
|
Tensile Strength (long/short term)
|
100/200N
|
|
Bending Radius (long/short term)
|
10D/20D (mm)
|
|
Fiber Count
|
1 or 2Fibers
|
|
Fiber Type
|
Singlemode G.657A
|
|
Strength Member Material
|
FRP
|
|
Cable Weight
|
20kg/km
|
|
Crush Load (long/short term)
|
300/1000 (N/100mm)
|
|
Operating/Storage Temperature
|
-40 to +60℃
|

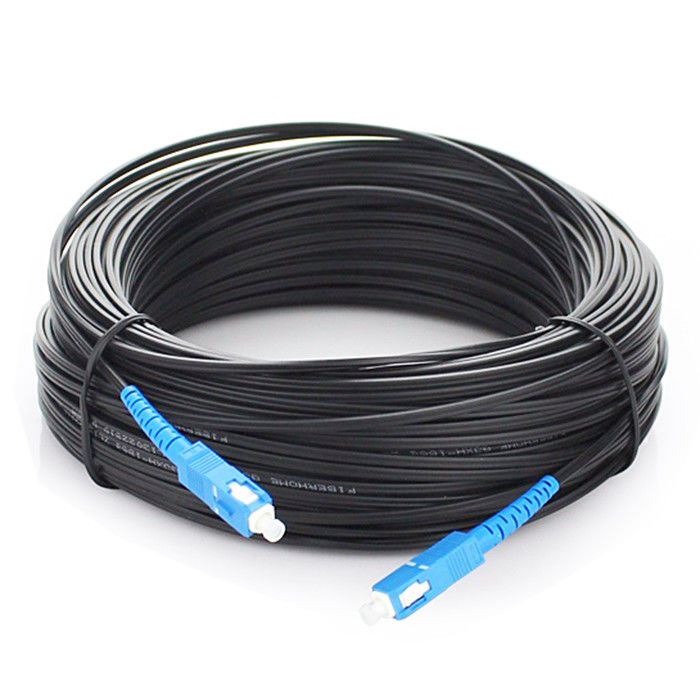

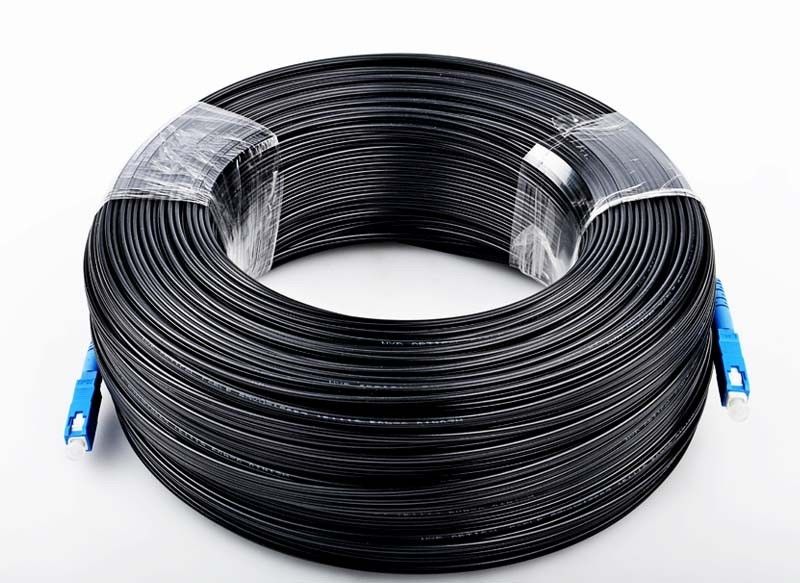

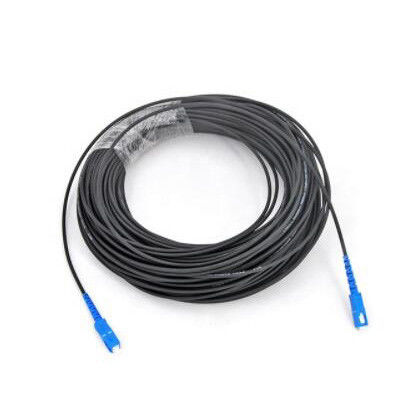

Drop Cable Patch Cord Details
