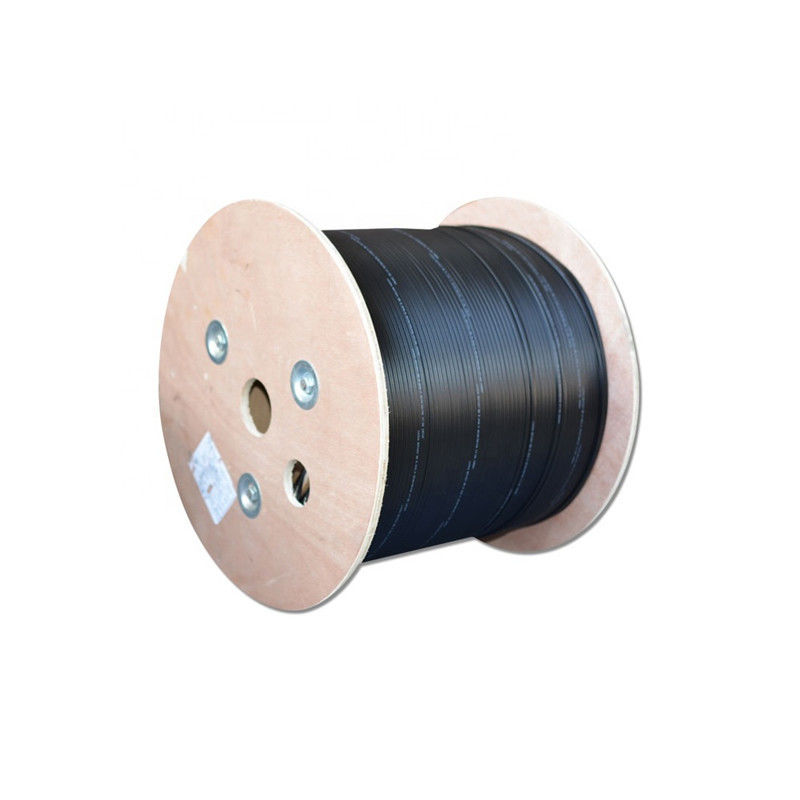

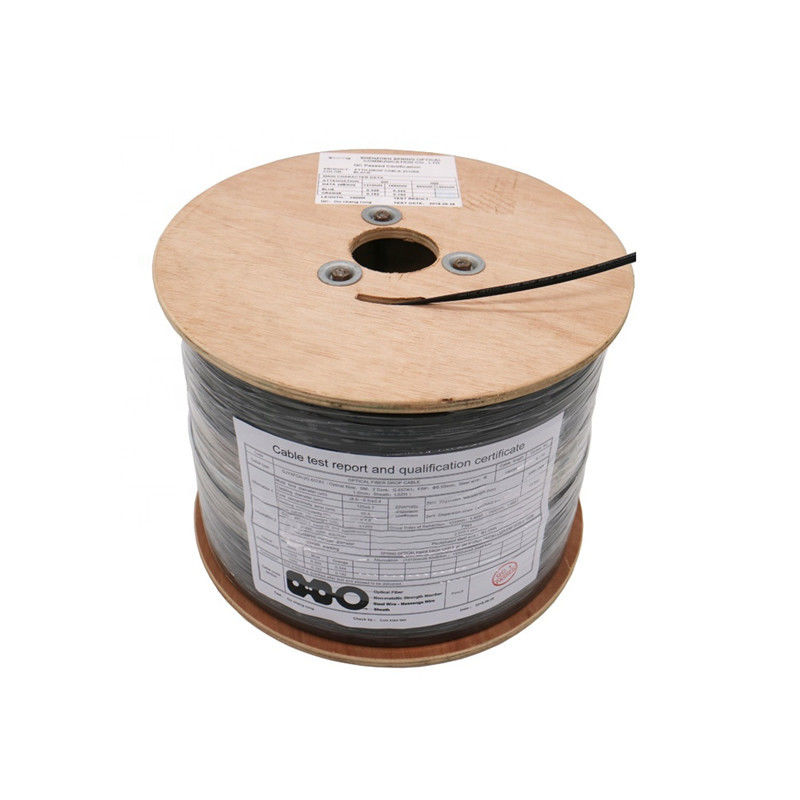

Plywood Drum Fiber Optic FTTH Drop Cable Singlemode Kfrp Strength Member Indoor Fiber Optic Cable
Description:

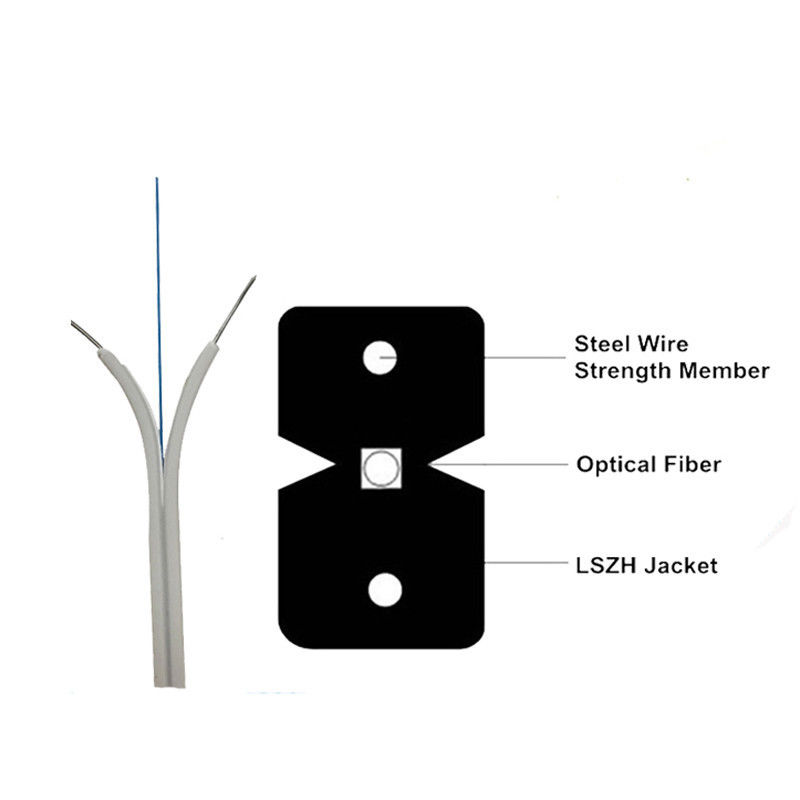

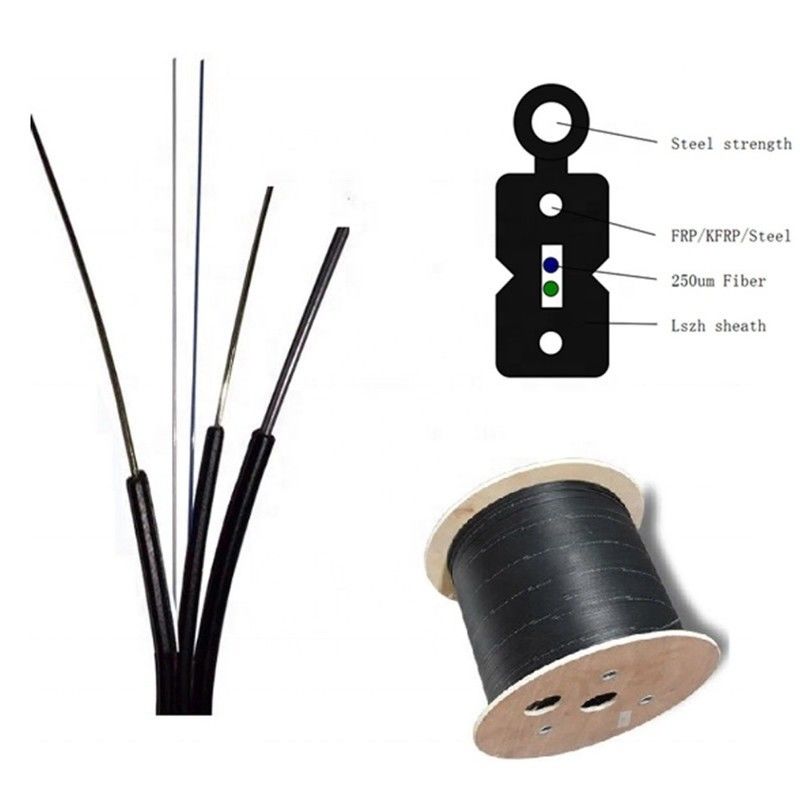

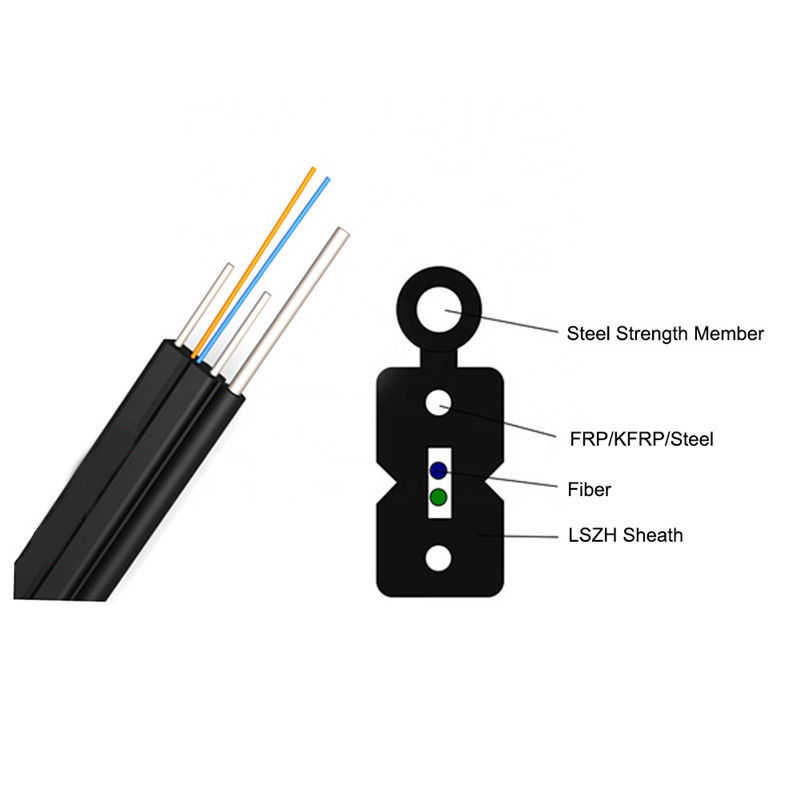

Self-supporting FTTH drop cable is constructed with one or two single-mode fiber (G.657A ). The cable is protected by a dielectric strength member made of fiberglass reinforced plastic (FRP), steel wire and a LSZH outer jacket. Designed for outdoor installation, the cable is well suited for connections between the dome closure and small dwelling unit/warehouse and independent villas.
Features:
1. Special low-bend-sensitivity fiber provides high bandwitch and excellent communication transmission property.
2.Two parallel FRP strength members ensure good performance of crush resistance to protect the fiber.
3. Single steel wire as the additional strength member ensure good performance of tensile strength.
4.Simple structure, light weight and high practicability.
5. Novel flute design, easily strip and splice, simplify the installation and maintenance.
6. Low smoke, zero halogen and flame retardant sheath.
Application:
Fibra Optica Drop Cable Specs
| Items | Unit | G.657A1 Specification | |
| Mode Field Diameter | 1310nm | μm | 9.0±0.4 |
| 1550nm | μm | 10.1±0.5 | |
| Cladding Diameter | μm | 124.8±0.7 | |
| Cladding Non-Circularity | % | ≤0.7 | |
| Core-Cladding Concentricity Error | μm | ≤0.5 | |
| Coating Diameter | μm | 245±5 | |
| Coating Non-Circularity | % | ≤6.0 | |
| Cladding-Coating Concentricity Error | μm | ≤12.0 | |
| Cable Cutoff Wavelength | nm | λcc≤1260 | |
| Attenuation (max.) | 1310nm | dB/km | ≤0.35 |
| 1550nm | dB/km | ≤0.21 | |
| Macro-Bending Loss | 1turn×10mm radius@1550nm | dB | ≤0.75 |
| 1turn×10mm radius@1550nm | dB | ≤1.5 | |
Fiber characteristics
|
Cable code
|
Fiber Count
|
Cable size
(mm)
|
Cable
weight
(KG/KM)
|
|
GJYXFCH
|
1
|
(2.0+-0.1)X(5.2+-0.1)
|
19
|
|
GJYXFCH
|
2
|
(2.0+-0.1)X(5.2+-0.1)
|
19
|
|
GJYXFCH
|
4
|
(2.0+-0.1)X(5.2+-0.1)
|
19
|
|
GJYXFCH
|
8
|
(2.5+-0.1)X(6.0+-0.1)
|
27
|
|
GJYXFCH
|
12
|
(2.5+-0.1)X(6.0+-0.1)
|
27
|
