Place of Origin:
CHINA
Brand Name:
Hochiry
Certification:
CE ROHS
Model Number:
GJYXFCH-1B6-SM SC/UPC
Contact Us

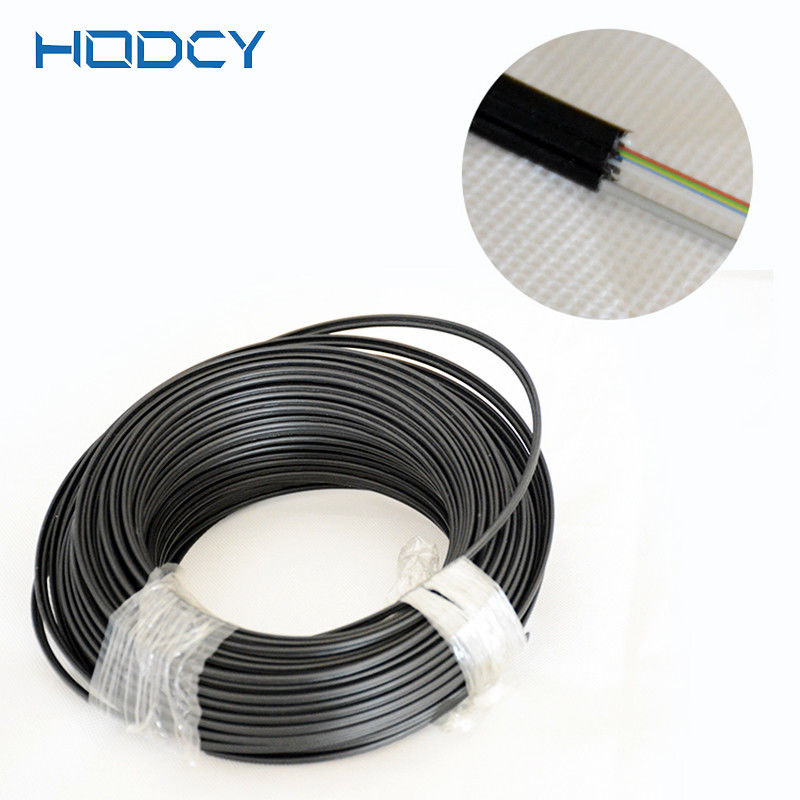

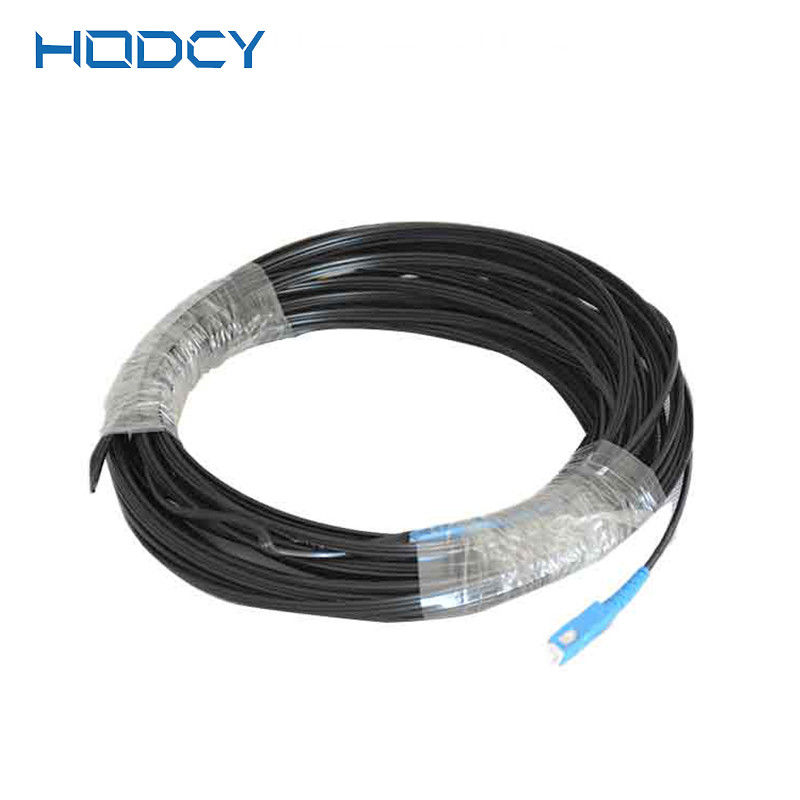

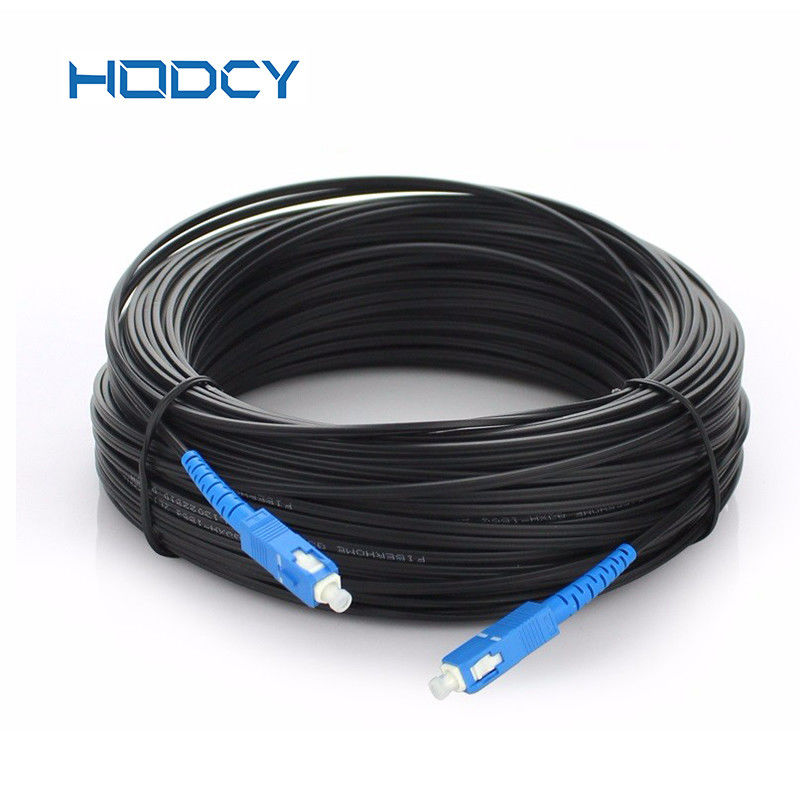

Indoor Outdoor 1 2 4 Core G657A1 FTTH Fiber Optic Drop Patch Cord Cable With Connector
Self-supporting FTTH drop cable is constructed with one or two single-mode fiber (G.657A ). The cable is protected by a dielectric strength member made of fiberglass reinforced plastic (FRP), steel wire and a LSZH outer jacket. Designed for outdoor installation, the cable is well suited for connections between the dome closure and small dwelling unit/warehouse and independent villas.
Feature
1, Self-supporting structure, light weight, easy to install
2, Durable and flame retardant LSZH sheath, low smoke zero halogen
3, Steel wire as additional strength member has high tensile strength
4, Two parallel FRP strength members ensure good performance of anti-electromagnetic and crush resistance
5, Outdoor aerial application
6, Used in the FTTH projects
7, High speed optical routes in building
8, High performance optical network operation
Drop Cable Patch Cord Specification:
|
Cable Type
|
FTTH Drop Cable
|
|
Construction
|
Self-supporting
|
|
Outer Jacket Material
|
LSZH (Black/White)
|
|
Cable Diameter
|
(2.±0.2)×(5.0±0.2)mm
|
|
Tensile Strength (long/short term)
|
100/200N
|
|
Bending Radius (long/short term)
|
10D/20D (mm)
|
|
Fiber Count
|
1 or 2Fibers
|
|
Fiber Type
|
Singlemode G.657A
|
|
Strength Member Material
|
FRP
|
|
Cable Weight
|
20kg/km
|
|
Crush Load (long/short term)
|
300/1000 (N/100mm)
|
|
Operating/Storage Temperature
|
-40 to +60℃
|

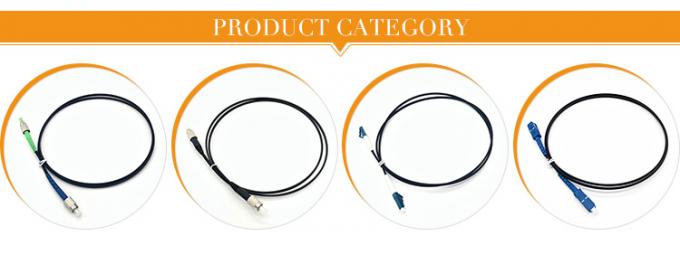

Drop Cable Patch Cord Details
