Name: GJYXFCH G657A SM Fiber Optic Cable 1 Core FRP Strength Member 1200N
Brand: Hochiry
SKU: GJYXFCH-1B6-SM
Price: 0.07 USD
Availability: InStock
Rating: 4.5 (124 reviews)

Home > products > Fiber Optic Cable >

GJYXFCH G657A SM Fiber Optic Cable 1 Core FRP Strength Member 1200N

1200N SM Fiber Optic Cable

GJYXFCH Fiber Optic Cable 1 Core

G657A Fiber Cable

Place of Origin:

CHINA

Brand Name:

Hochiry

Certification:

CE ROHS

Model Number:

GJYXFCH-1B6-SM

Request A Quote

GJYXFCH G657A SM Fiber Optic Cable 1 Core FRP Strength Member 1200N

Product Details

Model Number:

FTTH Drop Cable Patch Cord

Fiber Type:

G652D ,G657A ,G657A2

Cable Structure:

Self-support Tight Buffer

Strength Member:

FRP (Fiber Glass Reinforced Plastic)

Installation Tensile:

1200N

Fiber Amount:

1 Fiber

Jacket:

PVC LSZH PE

Payment & Shipping Terms

Minimum Order Quantity

100 Roll

Price

0.07USD/Meter

Packaging Details

1000M per Wooden Roll

Delivery Time

7-10 days

Payment Terms

T/T, Western Union, MoneyGram

Low Excess Loss 900um Steel Tube PLC Splitter 1x2 Without Connector

Get Best Price

ODM Passive Fiber Optic Cable Splitter 1x2 1x4 1x8 1x16 1x32 1x64 PLC Splitter

Get Best Price

PSM 1X16 Fiber Optic PLC Splitter 0.9mm Optical Steel Tube Mini Type

Get Best Price

EPON GPON Fiber Optic PLC Splitter 1 * 4 Low insertion loss with connector

Get Best Price

86-180-25320086

info@szhodas.com

86-0755-5320086

Contact Now

Product Description

Ftth Flat Drop Indoor Outdoor Fiber Optic Cable G657A LSZH Fibra Optica Drop Cable

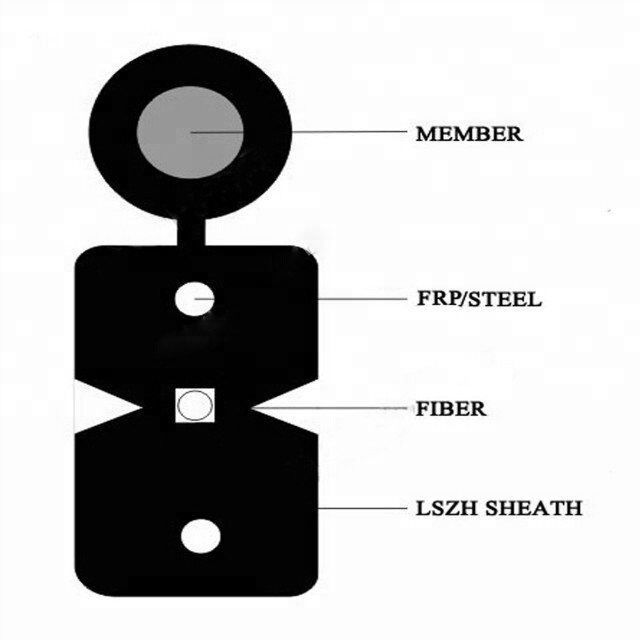

Description:

The optical fiber unit is positioned in the center.
Two parallel Fiber Reinforced Plastics (FRP) are placed at the twp sides.
Then the cable is completed with a black or white color LSZH sheath.

Features:

Special low-bend-sensitivity fiber provides high bandwidth and excellent communication transmission property
Two parallel strength members ensure good performance of crush resistance to protect the fiber
Simple structure, light weight and high practicability
Novel flute design, easily strip and splice, simplify the installation and maintenance
Low smoke, zero halogen and flame retardant sheath
Simple structure, light weight and high practicability

Application:

Used in indoor cabling, especially used for FTTH
Used as access building cable

Item	Technology parameter
Cable Type	Drop Cable
Cable Count	1 2 4 6 8 12
Fiber Color	Green, Yellow
Fiber Type	9/125 (G657A1)
Outer Sheath Color	Black or white
Sheath Material	LSZH
Cable Dimension (mm)	3.0(±0.1)2.0(±0.1); 5.2(±0.1)2.0(±0.1)
Cable weight (Kg/km)	15
Min. bending radius (mm)	10 (Static) 25 (Static) 30 (Static) 60 (Static)
Attenuation (dB/km)	≦ 0.4 at 1310nm, ≦ 0.3 at 1550nm
Short term tensile (N)	200; 600
Crush resistance (N/100mm)	1000; 2200
Operation temperature (℃)	-20~+70℃

Detailed Images

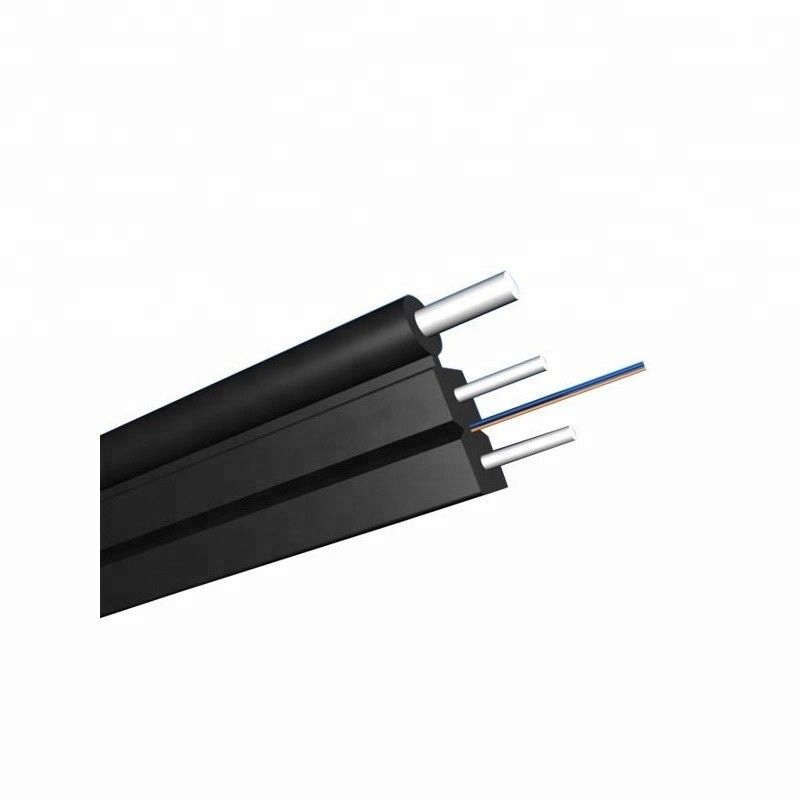

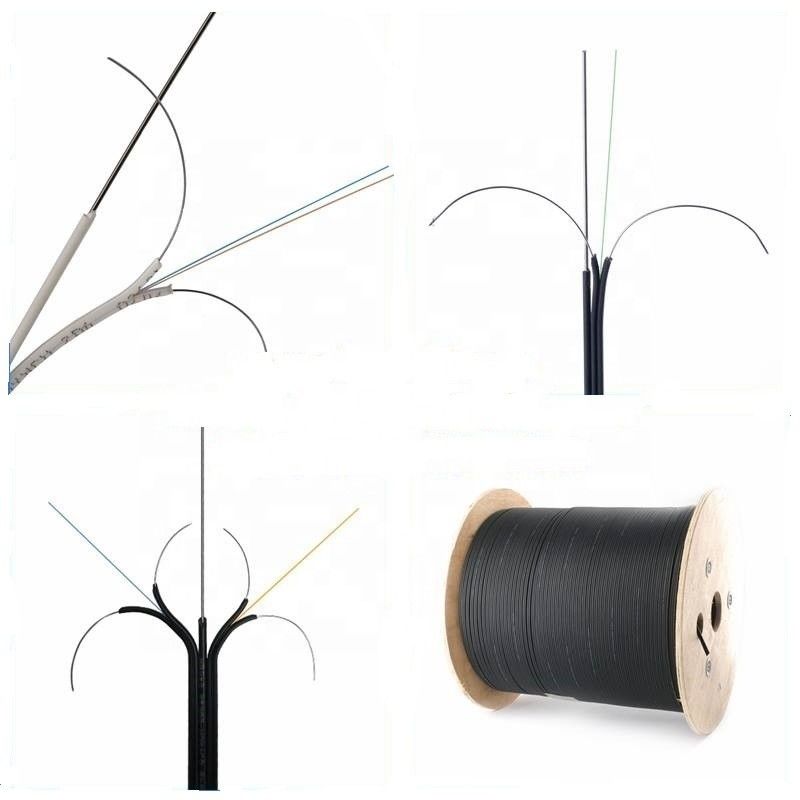

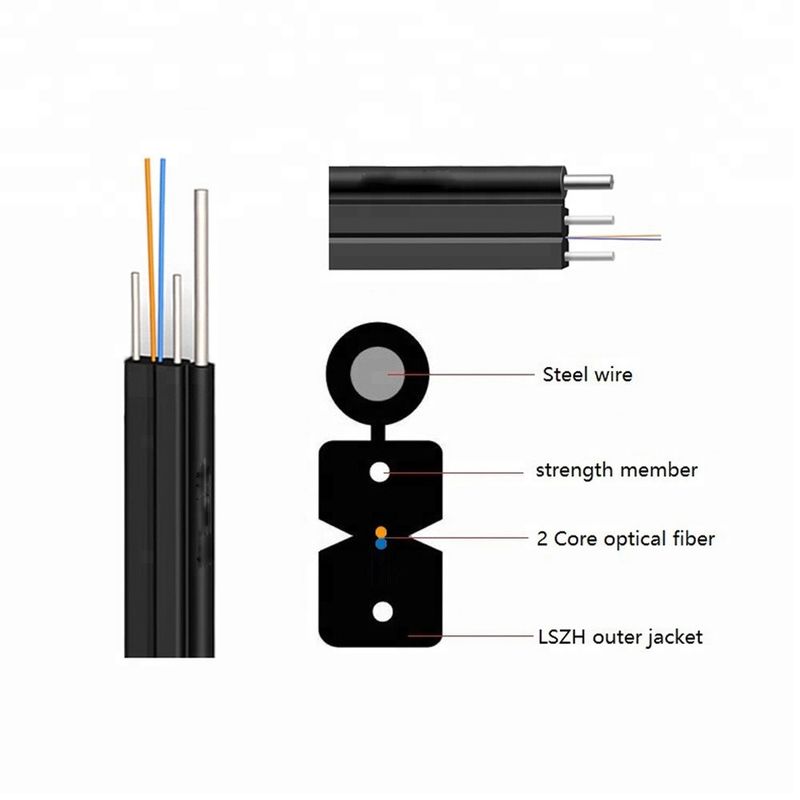

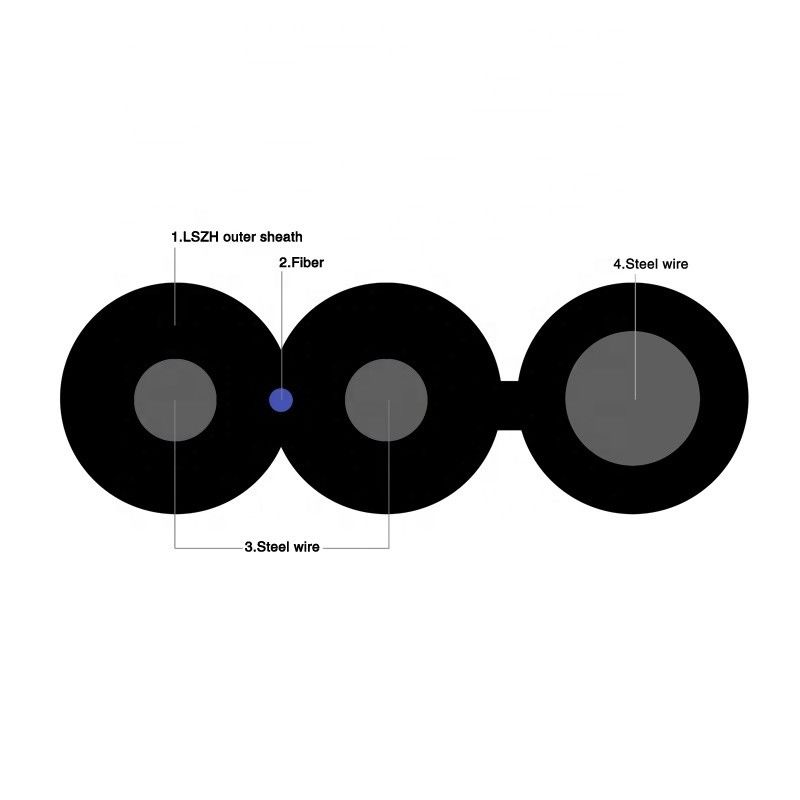

GJYXFCH G657A SM Fiber Optic Cable 1 Core FRP Strength Member 1200N 1
