Optical Fibre Cables SC Indoor Outdoor Ftth Fiber Optic Drop Cable Patch Cord
FTTH Cable directly connected to their homes, their bandwidth, wavelength and transmission technology type are not restricted. The optical fiber unit id positioned in the center. Two parallel strength member are placed at the two sides, then the cable is completed with black LSZH sheath.
· Suitable for limited space field of the branch, indoor series;
· Laid to facilitate construction operations;part and the cable;
· Jacket use low smoke, halogen-free flame-retardant materials;
· Prevent lightning and strong electric environment;
· FRP strengthen the component materials.
Drop Cable Patch Cord Specs:
| No.of fiber | 1F-4F | |||
| Gross weight | 8.5kg/km | |||
| SM fiber | Fiber type | 9/125 | MFD | 8.6～9.8um |
| Cladding diameter | 125±0.7um | Cladding non-circularity | ≤0.7% | |
| Coating | 245±5um | Fiber color | standard spectrum | |
| diameter | ||||
| Strength member | Material | FRP / Steel wire | Color | white |
| Diameter | 0.5mm | Qty | 2 | |
| Out sheath | Material | LSZH | Color | White / Black |
| Diameter | 2.0 (±0.1) *3.0mm (±0.1) | Thickness | ≧0.5mm | |

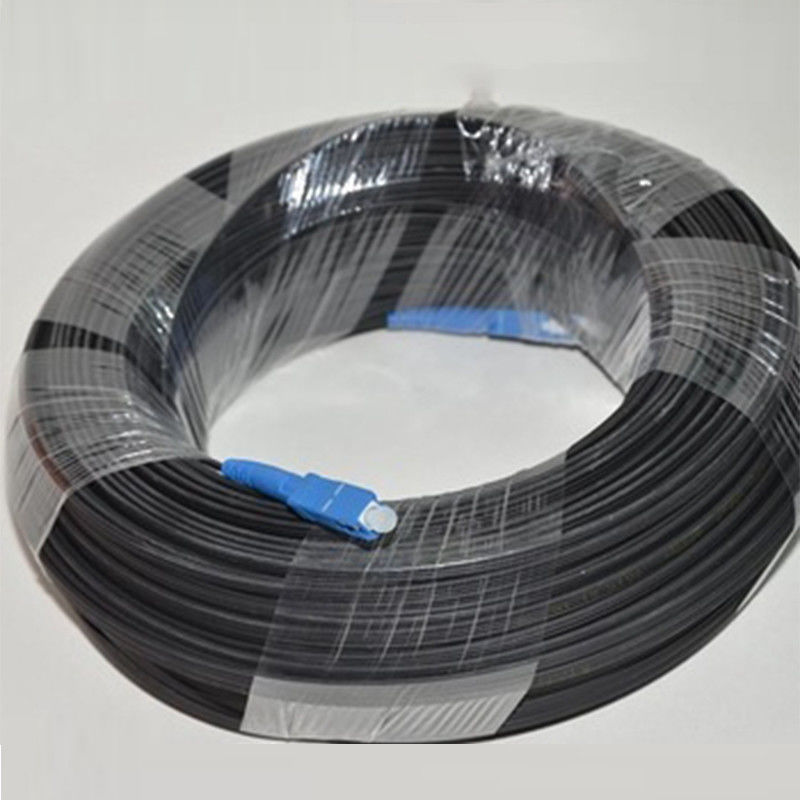

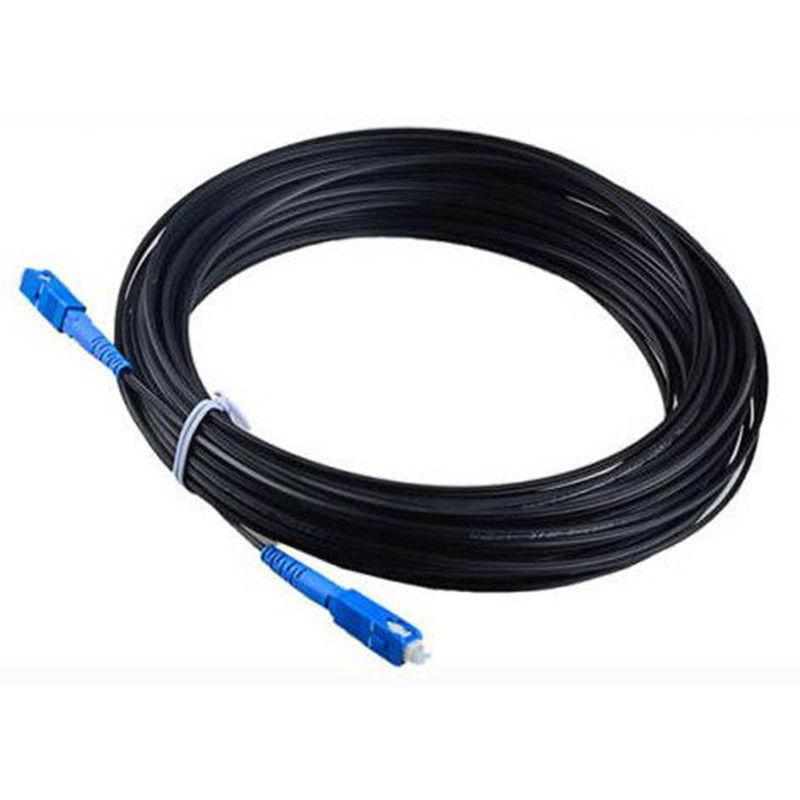

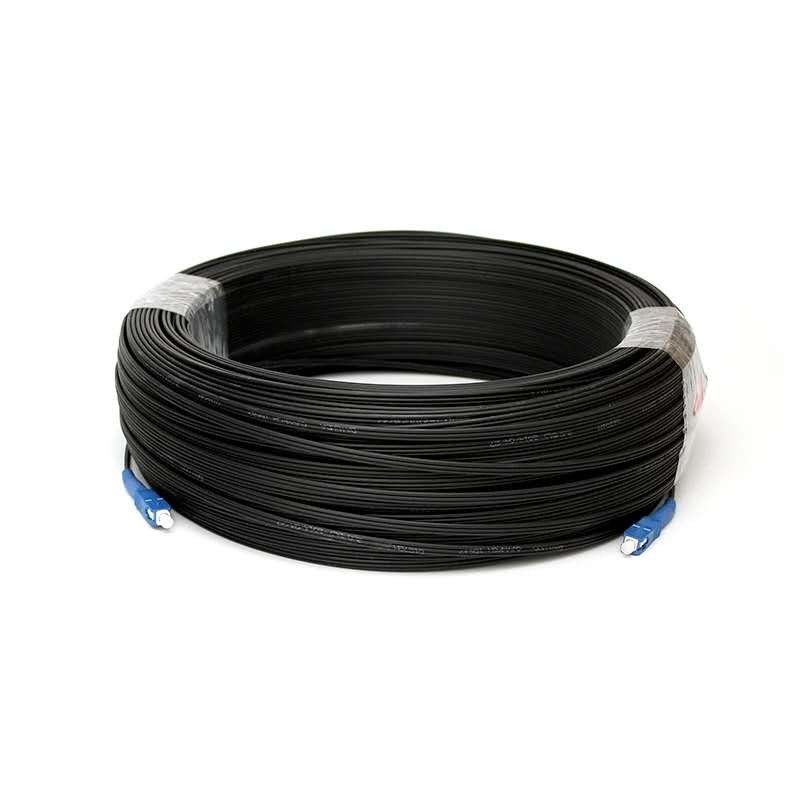

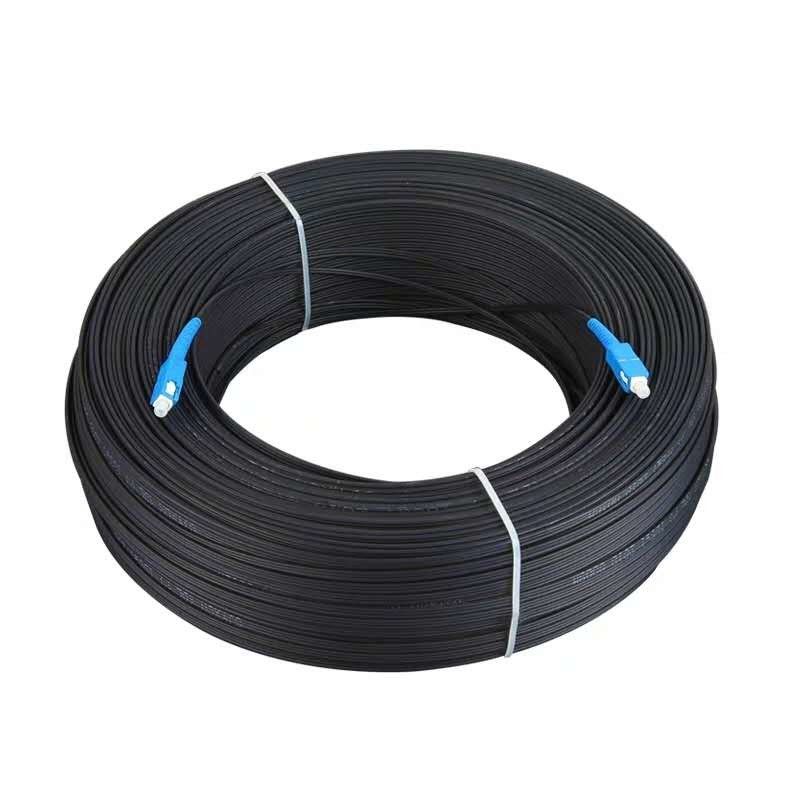

Drop Cable Patch Cord Details
