Name: ROHS 24 Port Fiber Optic Patch Panel / 19 Inch Rack Mount Network Distribution Frame
Brand: Hochiry
SKU: GXF-A
Rating: 4.6 (125 reviews)

Home > products > Fiber Optic Distribution Box >

ROHS 24 Port Fiber Optic Patch Panel / 19 Inch Rack Mount Network Distribution Frame

24 Port Fiber Optic Patch Panel

19 Inch Fiber Optic Patch Panel

ROHS Network Distribution Frame

Place of Origin:

CHINA

Brand Name:

Hochiry

Certification:

CE ROHS

Model Number:

GXF-A

Request A Quote

ROHS 24 Port Fiber Optic Patch Panel / 19 Inch Rack Mount Network Distribution Frame

Product Details

Product Name:

Fiber Optical Distribution Frame

Material:

SMC

Installation:

Rack Mount

Protection:

IP 55

Capacity:

Max 48 Fibers

Size:

450x180x150mm

Dividers:

Max 4pcs 1:16 Splitter

Payment & Shipping Terms

Minimum Order Quantity

10PCS

Packaging Details

485*305*425/5pcs 25KG/5pcs

Delivery Time

20-25 work days

Payment Terms

T/T, Western Union, MoneyGram

Supply Ability

50000 Pieces per Month

GXF-A 1152 Cores Fiber Distribution Terminal Cabinet / ODF Optical Distribution Cabinet

Get Best Price

Wall Mounted Fiber Optic Patch Panel 48 cores SMC For Outdoor Telecom Cabinet

Get Best Price

48 Fibers ODF Optical Distribution Frame Cabinet IP55 450x180x150mm

Get Best Price

ODF Fiber Optic Patch Panel Rack Mounted SC FC ST LC 48 Fiber

Get Best Price

86-180-25320086

info@szhodas.com

86-0755-5320086

Contact Now

Product Description

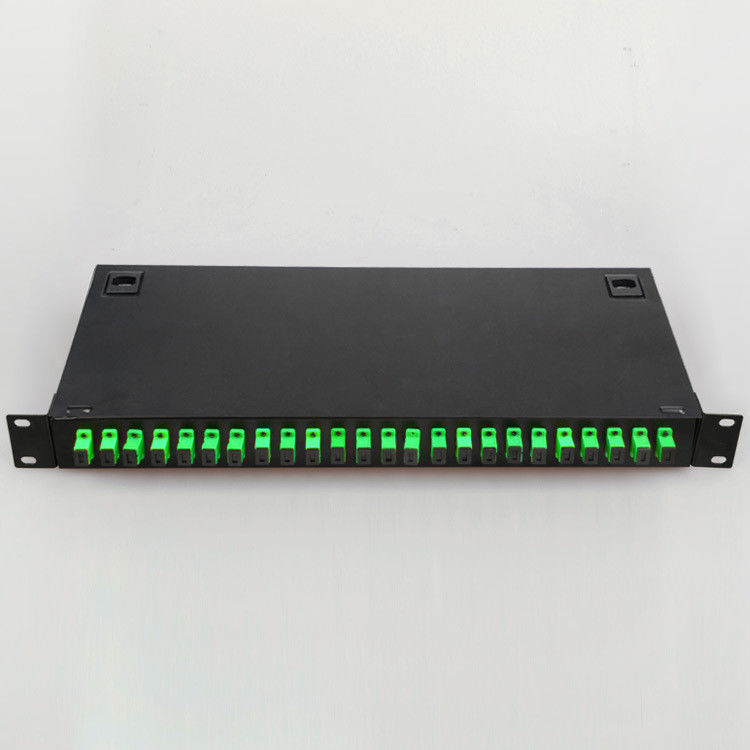

19 Inch Rack Mount Fiber Optical Network Distribution Frame 24 Port Odf Patch Panel

Fiber Optical Distribution Frame Description:

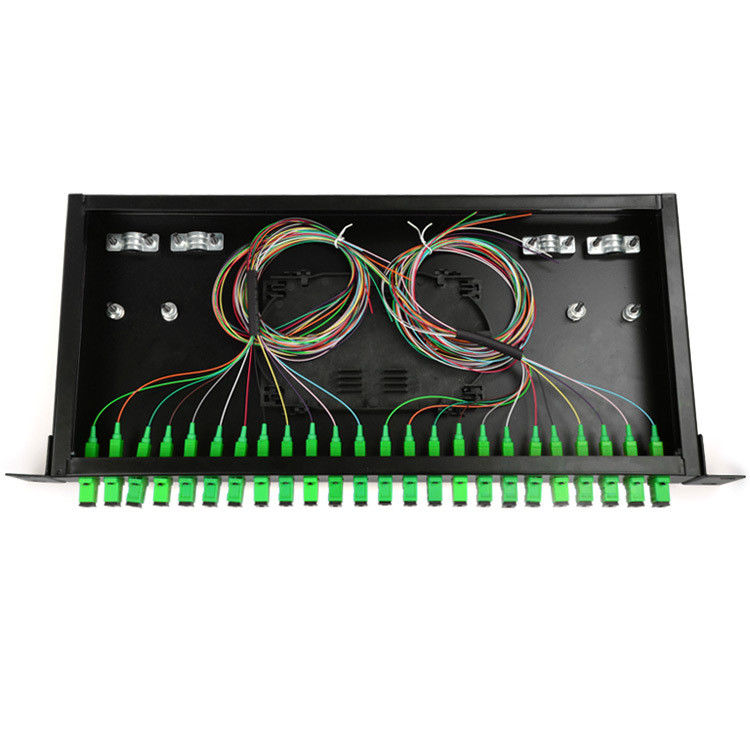

Optical distribution frame (ODF) is a frame used to provide cable interconnections between communication facilities, which can integrate fiber splicing, fiber termination, fiber optic adapters & connectors and cable connections together in a single unit. The basic requirement is ODF should allow for easy access to the connectors on the front and rear of those ports for insertion and removal. It is usually used as the interface between optical transmission network, optical transmission facility and between optical cables in access network of optical fiber subscribers. It can also work as a protective device to protect fiber optic connections from damage.

Fiber Optical Distribution Frame Features:

High precision alignment Thicker cold rolled steel body (1.2mm thickness)

Dense distribution and splicing to save space

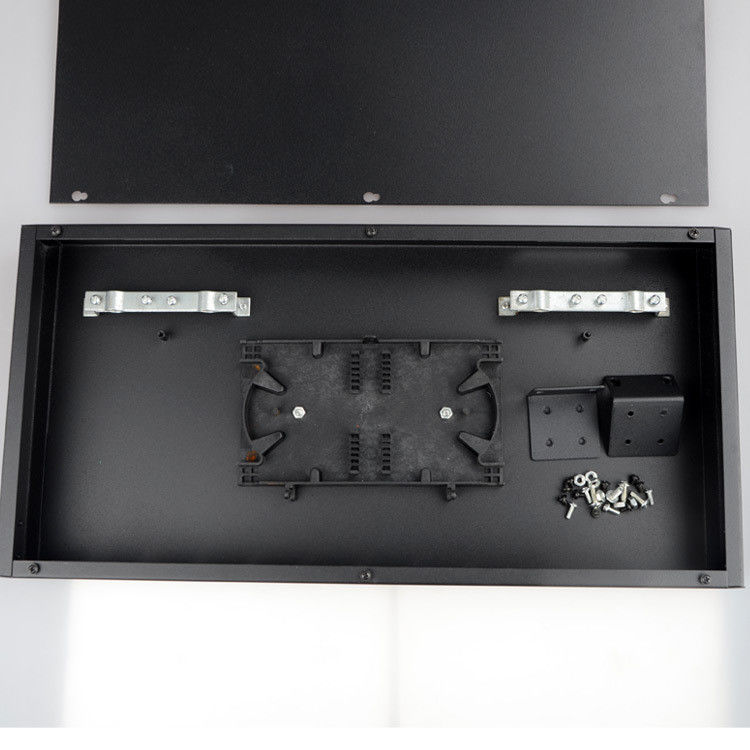

Splicing tray can pile up one upon another

Drawer slide type for easy maintenance

Anti static coating housing

Application:

1. Telecommunication area.
2. Internet service.
3. Data center, CATV
4. FTTH

Specifications:

Model	HDS-ODF-1U
Type	19inch Rock Mount
Material	1.34mm CRS(Cold Rolled Steel)
Size WDH (mm)	4302501U
Max capacity (core)	48

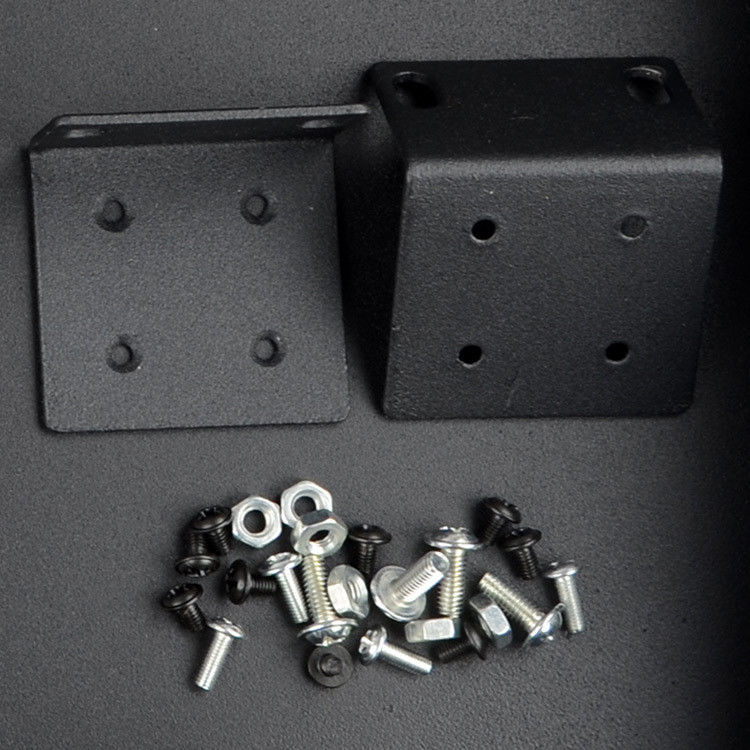

Included accessories	4pcs cable fix accessories, heat shrink tubes, cable ties, number tapes, adapter screws
Product color	Black
Weight	5kg/unit
Working temperature	-40~+85°C
Storage temperature	-40~+85°C
Outer carton dimension (mm)	485305425 / 5pcs
Outer Carton Weight (kg)	25 / 5pcs

Model Rules: HDS-ODF-XX-XX-XX
Ordering Information:

Model

XX: Fiber Capacity

XX: Adapter

XX: Pigtail

HDS-ODF

12=12 fibers
24=24 fibers
48=48 fibers
72=72 fibers
96=96 fibers

144=144 fibers

SC: SC/UPC
AS: SC/APC
LC: LC/UPC
AL: LC/APC
FC: FC/UPC
AF: FC/APC
