Bifacial Mono Solar Panel PV Module 400W 500W 550W 156mm*156mm Cell

Bifacial Solar Panels

400w mono solar panel

550W Solar Panel PV Module

Place of Origin:

CHINA

Brand Name:

Hochiry

Certification:

TUV

Request A Quote

Bifacial Mono Solar Panel PV Module 400W 500W 550W 156mm*156mm Cell

Product Details

Product Name:

Solar Panel PV Module

Solar Cell:

Mono 156mm*156mm

Material:

Monocrystalline Silicon

Number Of Cells:

60(6*10)Pcs/72(6*12) Pcs/78(6*13) Pcs

Solar Power (w):

2000W

Max. Power:

450W 550W 600W

Solar Cells:

Monocrystalline,Polycrystalline,Amorphous Silicon

Frame:

Anodized Aluminium Alloy

Warranty:

25 Years Output Power Guarantee

Panel Efficiency:

High Efficiency 144cells

Glass:

3.2mm High Transmission Tempered Glass

Payment & Shipping Terms

Minimum Order Quantity

100PCS

Packaging Details

27pcs/ per pallet 270pcs/ 1*20' container 648pcs/ 1*40' container

Delivery Time

20-25 work days

Payment Terms

T/T, Western Union, MoneyGram

144 Cells Monocrystalline Pv Module 440W 445W For Solar Energy

Get Best Price

PERC 450w Solar Pv Module Monocrystalline Silicon Sunpower Solar Panels

Get Best Price

72 Cells 420W PERC Photovoltaic Solar PV Panel IP68 Anodized

Get Best Price

Monocrystalline Half Cut Solar Panel 580w Photovoltaic Mono Solar Module

Get Best Price

86-180-25320086

info@szhodas.com

86-0755-5320086

Contact Now

Product Description

Mono Solar Panel Bifacial 400W 500W 550W Solar Panel PV Module

Products Description

600W+ Ultra-high Power with 21.4% High Efficiency Based on the 210mm large-size silicon wafer and monocrystalline PERC cell, allowing high power output of more than 600W. Excellent temperature coefficient and low irradiation performance brings the greater power. Furthermore, benefit from square mono cells and high-density encapsulation technology, the efficiency of can reach up to 21.4%.

Electrical Characteristics(STC)
Module	Mono 400W-600W+
Maximum Power (Pmax)	400Wp	500Wp	550Wp	600Wp
Maximum Power Voltage (Vmp)	34.2V	42.8V	31.8V	34.6V
Maximum Power Current (Imp)	11.70A	11.69A	17.29A	17.34A
Open-circuit Voltage (Voc)	41.2V	51.7V	38.1V	41.7V
Short-circuit Current (Isc)	12.28A	12.28A	18.39A	18.42A
Module Efficiency (%)	20.8%	20.9%	21.0%	21.2%
Power Tolerance	0~+5W
NOCT(Nominal Operating Cell Temperature)	43°C (±2°C)
Temperature Coefficient of PMAX	- 0.34%/°C
Temperature Coefficient of VOC	- 0.25%/°C
Temperature Coefficient of ISC	0.04%/°C
Operational Temperature	-40~+85ºC
Maximum System Voltage	1500V DC (IEC) 1500V DC (UL)
Max Series Fuse Rating	35A

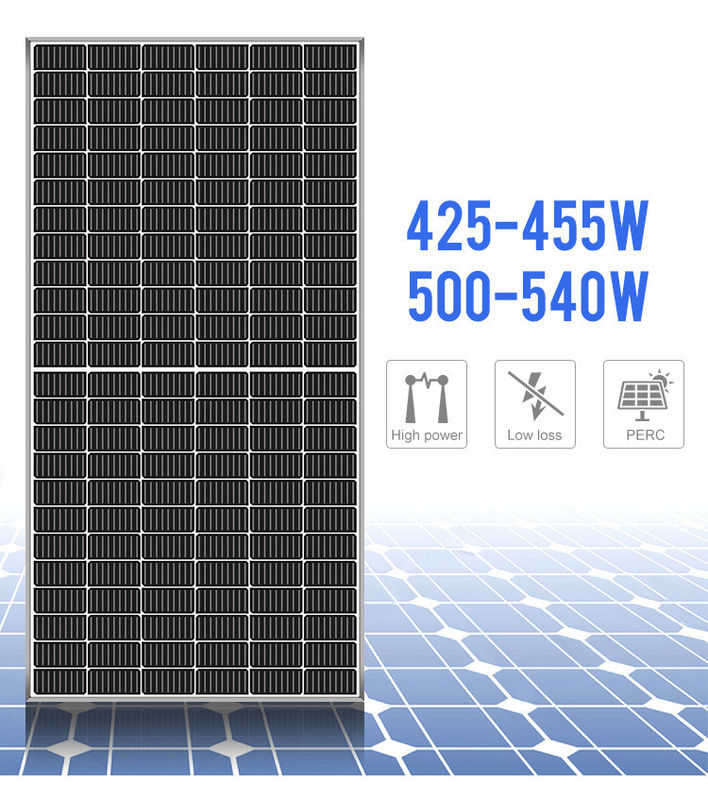

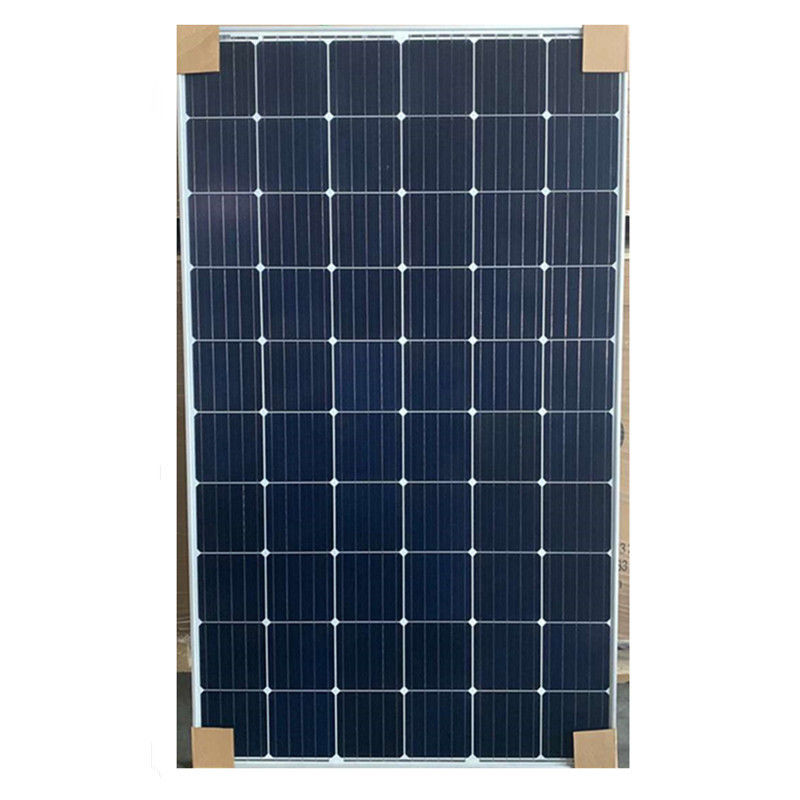

Product Display

Glass

*Anti-reflective glass

*High-transmittance and low reflection Increase model efficiency

*High mechanical strength

Solar Cell

*High model efficiency up to 20% *High shunt-resistance: adapt the several environmental conditions

*High PID resistant

* Low breakage rate

*Uniform color

Frame

*Optional silvery or black frame

* Tensile Strength Frame

*Boost bearing capability and prolong service life

Junction Box

*Waterproofness Junction Box

*Innovative Full-Glue-Filled Combination of series circuit and parallel circuit, reduced internal power loss Quality diode ensures module running safety

*Heat dissipation

*Long service life
