Name: ROHS Fiber Optic Distribution Box / Indoor Fiber Termination Box With 1X16 Splitter
Brand: Hochiry
SKU: HDX-09B
Rating: 4.9 (114 reviews)

Home > products > Fiber Optic Distribution Box >

ROHS Fiber Optic Distribution Box / Indoor Fiber Termination Box With 1X16 Splitter

Indoor Fiber Optic Distribution Box

1X16 Splitter Fiber Optic Distribution Box

ROHS Indoor Fiber Termination Box

Place of Origin:

CHINA

Brand Name:

Hochiry

Certification:

CE ROHS

Model Number:

HDX-09B

Request A Quote

ROHS Fiber Optic Distribution Box / Indoor Fiber Termination Box With 1X16 Splitter

Product Details

Product Name:

Outdoor Fiber Optic Termination Box

Application:

FTTH Network

Fiber Count:

Max 16 Fibers

Color:

White Or Black

Material:

ABS/PC

Installation:

Wall Mout Or Polt Mount

Size:

260mm*210mm*90mm

Payment & Shipping Terms

Payment Terms

T/T, Western Union, MoneyGram

GXF-A 1152 Cores Fiber Distribution Terminal Cabinet / ODF Optical Distribution Cabinet

Get Best Price

Wall Mounted Fiber Optic Patch Panel 48 cores SMC For Outdoor Telecom Cabinet

Get Best Price

48 Fibers ODF Optical Distribution Frame Cabinet IP55 450x180x150mm

Get Best Price

ODF Fiber Optic Patch Panel Rack Mounted SC FC ST LC 48 Fiber

Get Best Price

86-180-25320086

info@szhodas.com

86-0755-5320086

Contact Now

Product Description

Indoor Outdoor FTTH 16 Ports Spliter Fiber Optic Distribution Termination Box With 1X16 Splitter

16 Cores fiber optic access termination box is able to hold up to 16 subscribers. It is used as a termination point for the feeder cable to connect with drop cable in FTTx network system. It integrates fiber splicing, splitting, distribution, storage and cable connection in one solid protection box. The optical distribution box is a solution that facilitates the installation of optical termination in branch networks for FTTH environments.

Features:
1. IP65 Rated Water-proof design, Prepared for outdoor environments
2. Integrated with splice cassette and cable management rods.
3. Manage fibers in a reasonable fiber radius condition.
4. Panel for accommodating SC optical adapters, which must be purchased separately
5. Easy to maintain and extend the capacity.
6. Fiber bend radius control more than 40mm.
7. Suitable for the fusion splice or mechanical splice.
8. 1*16 Splitter can be installed as an option.
9. Efficient cable management.
10. 16 ports cable entrance for drop cable.

11. Equipment with sealing locks

Accessories

1. Wall mounting kits : 4 pieces
2. Screws : 4 pieces
3. Cable tie: 10 pieces
4. Heat shrink protective sleeves: 16 pieces
5. Key :1 piece

Application

widely used in FTTH access network.
Telecommunication Networks
CATV Networks
Data communications Networks
Local Area Networks

Specifications

Dimensions and Capability
dimensions(WHD)	270mm220mm100mm
Adapter Capacity	16xSC;16xLCDX;1x16 PLC Splitter
Number of Cable Entrance/Exit	2/16
Optional Accessories	Adapters, pigtails
Insert Loss	≤0.2dB
UPC Return Loss	≥50dB
APC Return Loss	≥60dB
Weight	1.8KG

Shipping Information
Pakage Contens	Distribution box, 1 unit; Keys for lock, 2keys
Pakage Contens	Wall mount installation accessories,1 set
Package dimensions(WHD)	270mm200mm100mm
Weight	1.8KG

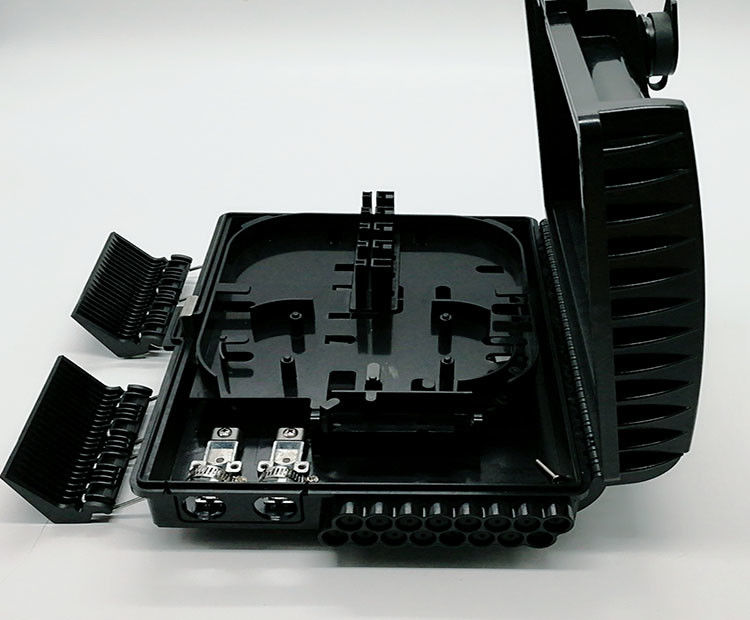

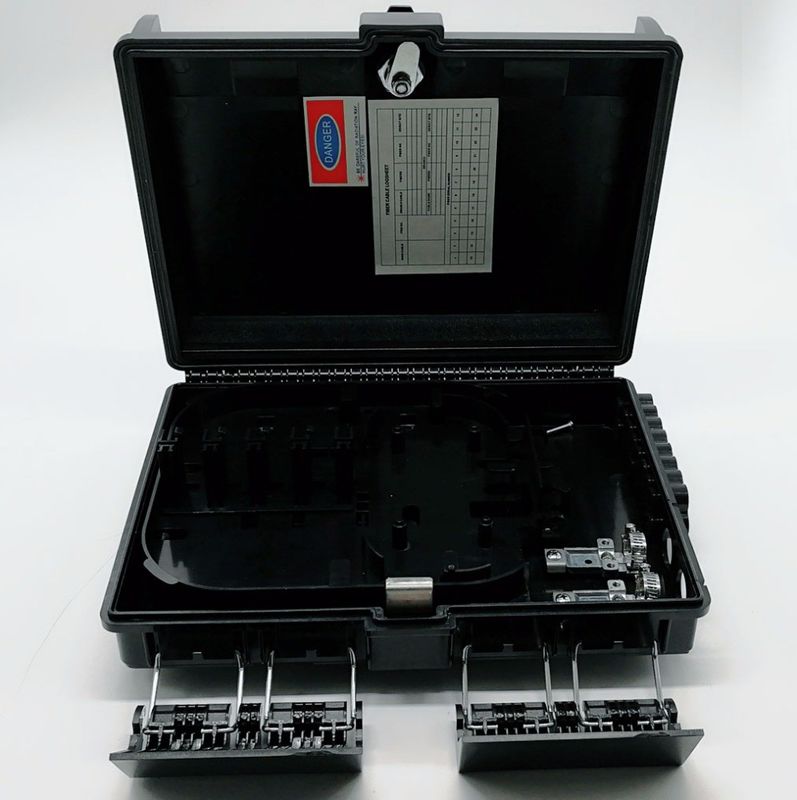

ROHS Fiber Optic Distribution Box / Indoor Fiber Termination Box With 1X16 Splitter 0
