Place of Origin:
CHINA
Brand Name:
Hochiry
Certification:
CE ROHS
Model Number:
HDX-09A
Contact Us

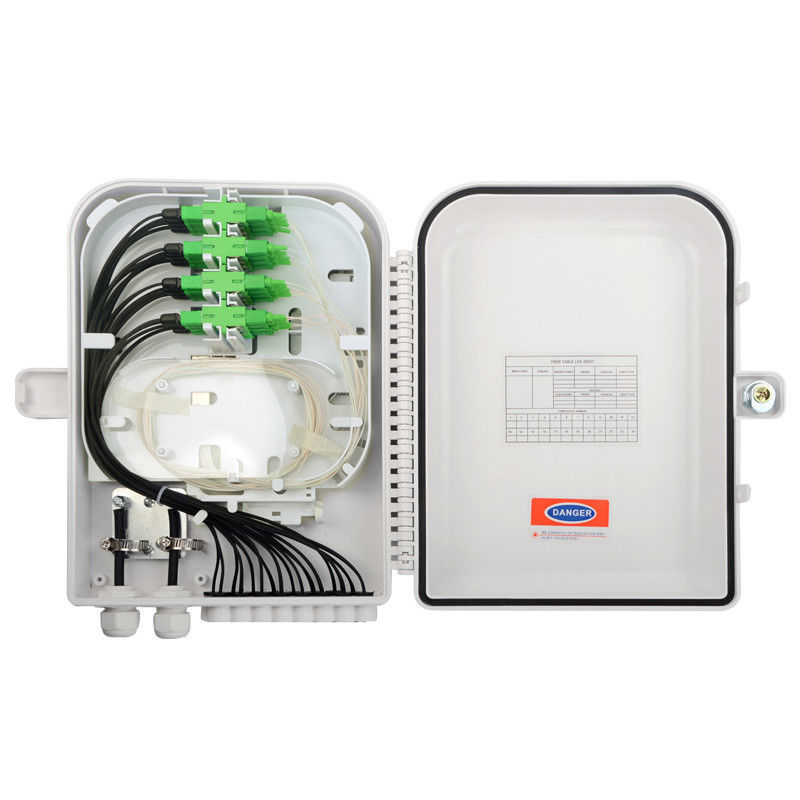

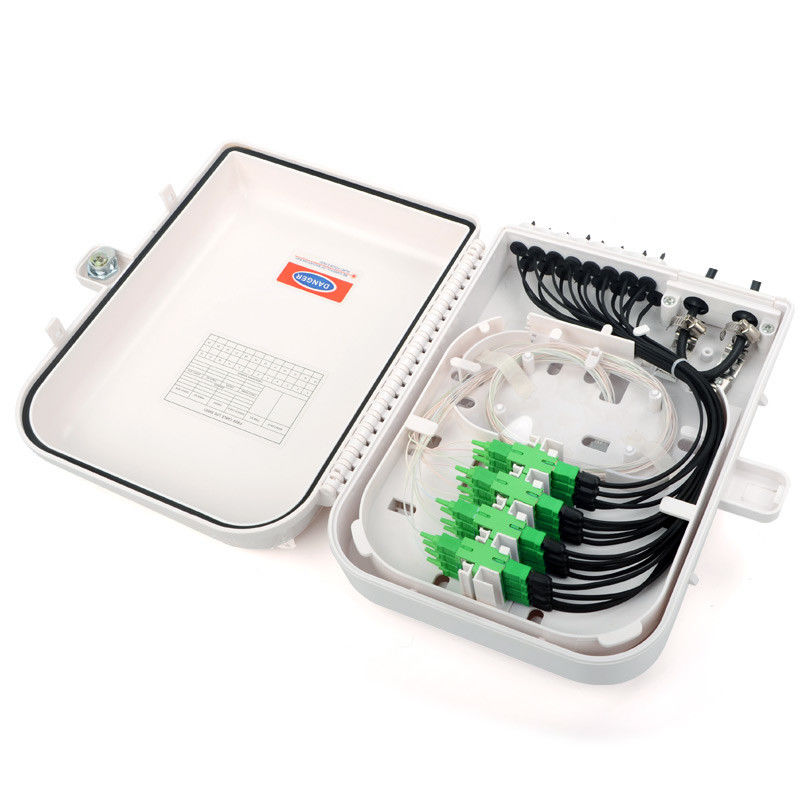

1. Clamping for feeder cable and drop cable, fiber splicing, fixation, storage, distribution...etc all in one.
2. Cable, pigtails, patch cords are running through own path without disturbing each other, cassette type SC adapter installation, easy maintenance.
3. Distribution panel can be flipped up, feeder cable can be placed in a cup-joint way, easy for maintenance and installation.
4. Cabinet can be installed by the way of wall-mounted or poled-mounted, suitable for both indoor and outdoor uses.
Water-proof design with IP-66 Protection level.
Integrated with splice cassette and cable management rods.
Manage fibers in a reasonable fiber radius condition.
Easy to maintain and extend the capacity.
Fiber bend radius control more than 40mm.
Suitable for the fusion splice or mechanical splice.
1*16 Modular Splitter can be installed as an option.
Efficient cable management.
16 ports cable entrance for drop cable.
| Product name | 16 Core Fiber Optic Distribution Box | Protection grade | IP65 |
| Operating Temperature | -40℃~60℃ | Product Size | 305*255*100 mm |
| Working environment | Indoor and Outdoor wall-mounted | inlet/outlet Port | 2 inlet, 16 outlet for drop cables |
| Function | FTTH network building | Color | White or Black |
| Features | wet-proof,water-proof | Weight | 1.2kg |
