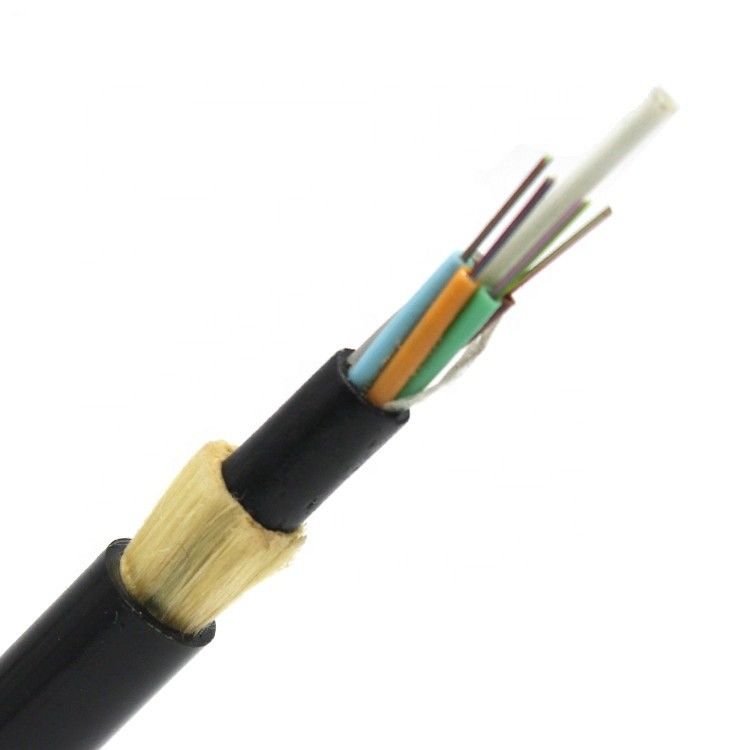

ADSS Optical Fiber Cable
Contact Us
Fibra Optica Cable Aerial Duct Direct Method GYTS Armored Fiber Optic Cable Outdoor
Description:
GYTS is used for duct or aerial applications. These steel tape armored cables are suitable for installation for long haul communication and LANs, especially suitable for the situation of high requirements of moisture resistance. It is the stranded loose tube fiber optic cable with compact structure; the cable jacket is made of strong Polyethylene; High strength loose tube that is hydrolysis resistant. Hongan provides GYTS from 4 fiber cores to 288 fiber cores. Both single mode type and multimode types are available. We also provide Customized Service such as fiber number, fiber color and cable length, etc.
Features:
1. Good mechanical and temperature performance
2. High strength loose tube that is hydrolysis resistant
3. Special tube filling compound ensure a critical protection of fiber
4. Crush resistance and flexibility
5. The following measures are taken to ensure the cable watertight:
6. Loose tube filling compound, 100% cable core filling
7. PSP/PAP enhancing moisture-proof
8. Steel wire used as the central strength member
Application:
Long-distance telecom, LAN in high-voltage area or access to telecom network
Especially for power transmission system. excessive thunder areas and high electromagnetic interference.
Recommended layings methods
Advantages:
1. Low dispersion and attenuation.
2. Proper design, precise control for fiber excess length and distinct stranding process render the cable excellent mechanical and
environmental characteristics.
3. Anti-electromagnetism ability.
4. Small cable diameter, light cable weight, easily to install.
Performance :
1. Max attenuation :1310nm≤0.36 dB/km and 1550nm≤0.22 dB/km
2. Fiber : G652D
3. Installation : Suitable for aerial or duct
4. Application : Apply to Long distance communication system, Local area network system and Subscriber network system
5. Lifetime : above 30 years
6. Operating temperature : -40°C~+70°C
7. Permission bent radius Static : 10 times O.D.
8. Dynamic : 20 times O.D.
Technical Parameters
| Item | Parameters | |
| Loose tube | Material | PBT |
| Color | All colors display | |
| Filler | Material | PE |
| Color | Black | |
| CSM | Material | Phosphating steel wire |
| Armoured | Material | Plastic coated steel strip |
| Outer jacket | Material | MDPE |
| Color | Black | |
| Min. bending radius | Static | 10 times cable diameter |
| Dynamic | 20 times cable diameter | |
| Repeating bending | Load:150N;number of cycles:30 No obvious addition attention, no fiber break and no cable damage. | |
| Tensile performance | Short term | 1500N |
| Crush | Short term | 1000N/100mm |
| Torsion | Load:150N; number of cycles:10; twist angle:±180° No obvious addition attention, no fiber break and no cable damage. | |
| Impact | Impact energy:450g×1m; radius of hammer head:12.5mm; number of impact: 5 No obvious addition attention, no fiber break and no cable damage. | |

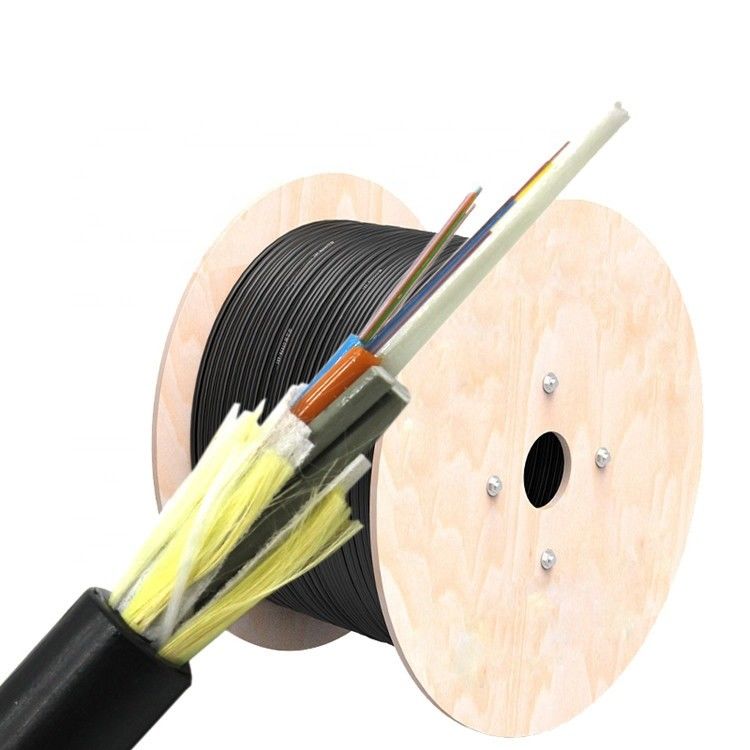

Details Images
